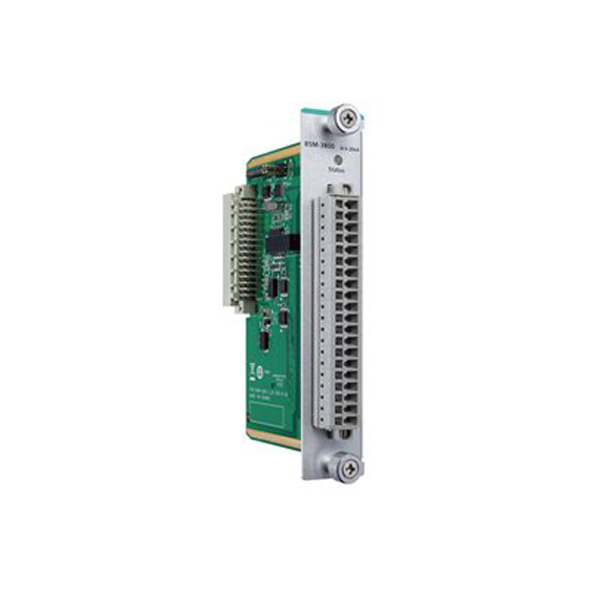

MOXA 86M-4420-T I/O Module

MOXA 86M-4420-T I/O Module
MOXA 86M-4420-T I/O Module
MOXA 86M-4420-T I/O Module
MOXA 86M-4420-T I/O Module
MOXA 86M-4420-T I/O Module

  • 4 x Analog Output Channels (±10 V, 0-10 V, 0-20 mA, 4-20 mA)
  • Compatible with ioPAC 8600 Series
  • Rugged and compact design for harsh environments
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: 86M-4420-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Rugged Controllers & I/Os , Rugged Controllers , Rugged I/Os , Controllers , Remote I/O , Industrial Automation Solutions , Railway Transportation Products , Remote Automation , Smart Remote I/O , I/Os , MOXA ioPAC 8600 Series (86M) Modules

Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.


You can also find the 86M-5212U-T and 86M-2830D-T models in the Smart Remote I/O.


Inquire about the MOXA 86M-4420-T I/O Module, designed for industrial automation solutions. Feel free and get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

REMOTE I/O MODULES : INPUT/OUTPUT INTERFACE
Digital Input and Output No
Analog Input and Output Yes : 4 x Analog Output Channels (±10 V, 0-10 V, 0-20 mA, 4-20 mA)
System Power Input Channels No
Thermocouple Channels No
Field Power Input and Output No
Relays No
RTD Channels No
Ethernet Ports No
CAN Ports No
Serial Ports No
Isolation Yes : 3k VDC or 2k Vrms
REMOTE I/O MODULES : SERIAL INTERFACE
Connector -
Serial Standards -
Serial Communication Parameters -
Serial Signals -
REMOTE I/O MODULES : GENERAL
MTBF 2,409,345 hrs
REMOTE I/O MODULES : POWER REQUIREMENTS
Power Connector -
Input Voltage -
Power Consumption 143.8 mA @ 24 VDC
REMOTE I/O MODULES : PHYSICAL CHARACTERISTICS
Housing -
Dimensions 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
Installation -
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight Under 80 g
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 75°C (-40 to 167°F)
Standards and Certifications EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia SR332
Altitude 2000 m
