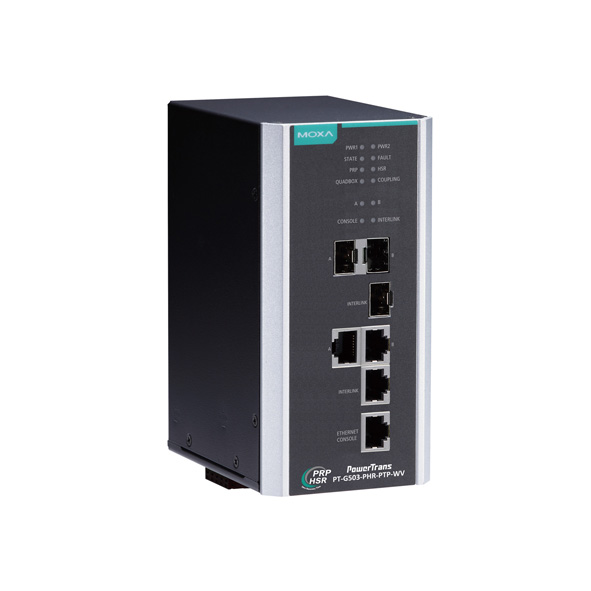

MOXA PT-G503-PHR-PTP-WV Managed Ethernet Switch

MOXA PT-G503-PHR-PTP-WV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-WV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-WV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-WV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-WV Managed Ethernet Switch

  • 3 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • 1 x 10/100/1000BaseT(X) Ethernet console port
  • IP40-rated Aluminum body design
  • IEEE 1588v2 PTP and IEC 62439-3 Clause 5 (HSR) compliant
  • DIN-rail mounting
  • 1 isolated dual power supply (24/48 VDC)
  • -40 to 85°C operating temperature

  • Brand: MOXA
  • Model: PT-G503-PHR-PTP-WV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Factory Automation
  • Power Utility
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Managed Switches , Layer 2 Switches , DIN-Rail Ethernet Switches , IEC 61850-3 Ethernet Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , Railway Transportation Products , Power Utility Products , Switches , MOXA PT-G503 Series

The PT-G503-PHR-PTP Series redundancy boxes (RedBoxes) are compliant with the latest standardized redundancy protocols for industrial automation networks, IEC 62439-3 Clause 4 (Parallel Redundancy Protocol, PRP) and IEC 62439-3 Clause 5 (High-availability Seamless Redundancy, HSR). PRP/HSR ensures the highest system availability and data integrity for mission-critical applications in electrical substations and/or process automation systems that require zero recovery time redundancy. The redundant protocols Coupling and QuadBox are also supported. With Coupling and QuadBox, HSR rings can be connected to make the redundant network more versatile. The PT-G503-PHR-PTP Series comes with three 10/100/1000BaseT(X) and 100/1000BaseSFP slot combo ports.

One slot (INTERLINK port) is for an internal link to connect with a SAN (Singly Attached Node). The other two ports (LAN A and LAN B ports) are for redundant PRP/HSR protocol communications. With this full Gigabit Ethernet port design, the PT-G503-PHR-PTP Series provides high performance for PRP/HSR systems.

The PT-G503-PHR-PTP Series also provides IEEE 1588v2 PTP in end-to-end one-step transparent clock mode for time-critical applications and power inputs with 24/48 VDC or 110/220 VDC/VAC ranges to increase the reliability of the power supply.



You can also find the PT-G503-PHR-PTP-HV model in the IEC 61850-3 Ethernet Switches.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA PT-G503-PHR-PTP-WV Managed Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 3 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 3 x Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP, 1 x 10/100/1000BaseT(X) Ethernet console port, 1 x USB Port (Type A connector), 1 x Serial console port (Type B connector), 1 x Alarm Contact Channel, 1 x Digital Input
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.660/0.360 A @ 24/48 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 24/48 VDC (18 to 72 VDC)
Operating Voltage -
switch and hub : General
Fan / Fanless Fanless
MTBF 440,857 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)
Housing Aluminum
Installation DIN-rail mounting
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508; EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; IP40; Telcordia (Bellcore) Standard TR/SR
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1210 g (2.69 lb)
switch and hub : Standards and protocols
Protocols and work standards HSR, PRP, RSTP grouping, PTP
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Client, Fiber check, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, Static Multicast
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
