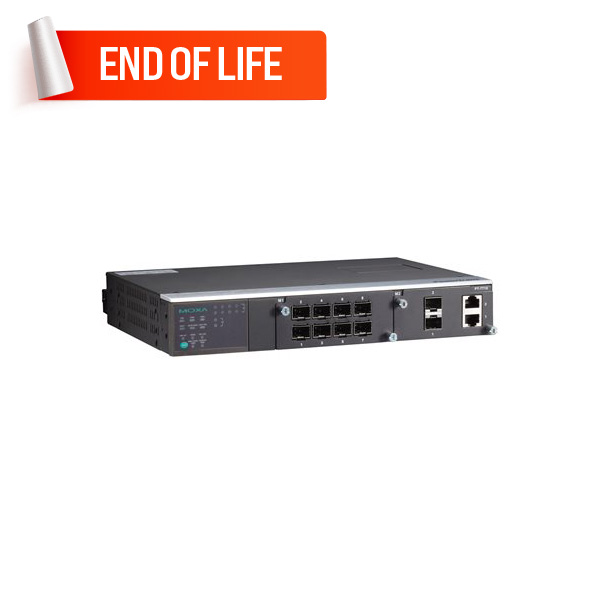

MOXA PT-7710-D-LV Managed Ethernet Switches

MOXA PT-7710-D-LV Managed Ethernet Switches
MOXA PT-7710-D-LV Managed Ethernet Switches
MOXA PT-7710-D-LV Managed Ethernet Switches
MOXA PT-7710-D-LV Managed Ethernet Switches
MOXA PT-7710-D-LV Managed Ethernet Switches
  • Modular Managed Ethernet Switch
  • 2 x Slots for combination with PM-7200 FE/GE modules
  • Cabling Direction: Down cabling
  • IP30-rated Aluminum body design
  • 12/24/48 VDC Redundant dual power inputs
  • Wallmount installation design
  • -40 to 85°C operating temperature
  • Brand: MOXA
  • Model: PT-7710-D-LV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Power Utility
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Managed Switches , Layer 2 Switches , IEC 61850-3 Ethernet Switches , Rackmount Ethernet Switches , Rackmount Switches , Industrial Data Communications , Industrial Ethernet Switches , Power Utility Products , Railway Transportation Products , Road Transportation Products , Rackmount , Switches , MOXA PT-7710 Series

The PT-7710 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4). The PT-7710’s Gigabit and Fast Ethernet backbone, redundant ring, and 12/24/48 VDC redundant power inputs increase the reliability of the communications and reduce cabling and wiring costs. The modular design of the PT-7710 makes network planning easy and allows greater flexibility by letting you install up to 2 Gigabit ports and 8 Fast Ethernet ports, or 10 Fast Ethernet ports.


End of Life Product - Replacement Available

Please note that the PT-7710 Series has been phased out and replaced by the RKS-G4028 Series.


You can Buy the MOXA PT-7710-D-LV Managed Ethernet Switches via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports Up to 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports Up to 2 Ports
100Mb Fiber optic multi mode (Megabit) Ports Up to 8 Ports
100Mb Fiber optic single mode (Megabit) Ports Up to 8 Ports
100Mb SFP Fiber optic (Megabit) Ports Up to 8 Slots
1000Mb SFP Fiber optic (Gigabit) Ports Up to 2 Slots
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x RS-232 Console Port (RJ45 connector), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup Yes : ABC-01
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.75 A @ 0.24 VDC, 0.39 A @ 48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48 VDC (9 to 60 VDC)
Operating Voltage -
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 316,716 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 266.5 x 44 x 195 mm (10.5 x 1.7 x 7.7 in)
Housing Aluminum
Installation Wall mounting
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1; EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4, EN 50155 (complies with a portion of EN 50155 specifications); Traffic Control: NEMA TS2; IP30; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 2.2kg
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
