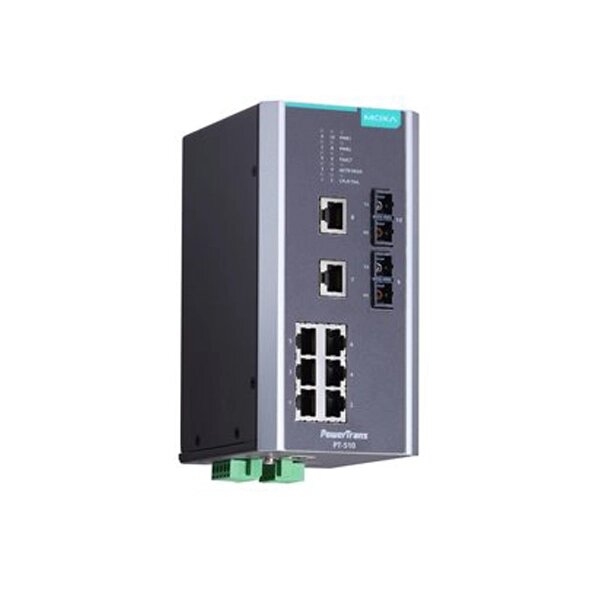

MOXA PT-510-MM-SC-24 Managed Ethernet Switches

MOXA PT-510-MM-SC-24 Managed Ethernet Switches
MOXA PT-510-MM-SC-24 Managed Ethernet Switches
MOXA PT-510-MM-SC-24 Managed Ethernet Switches
MOXA PT-510-MM-SC-24 Managed Ethernet Switches
MOXA PT-510-MM-SC-24 Managed Ethernet Switches

  • 8 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 100BaseFX Ports (multi-mode SC connector)
  • 5 KM Typical data transmission distance on fiber
  • DIN-rail mounting
  • 24 VDC Redundant dual power inputs
  • IP40-rated Aluminum body design
  • -40 to 85°C operating temperature range

  • Brand: MOXA
  • Model: PT-510-MM-SC-24
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Ethernet Switches , IEC 61850-3 Ethernet Switches , DIN-Rail Ethernet Switches , Industrial Data Communications , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Switches , Power Utility Products , Switches , MOXA PT-510 Series

The PowerTrans PT-510 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-510 makes network planning easy and allows greater flexibility by letting you install up to 10 Fast Ethernet ports for power distribution applications.


You can also find the PT-510-3S-SC-HV, PT-510-4M-ST-24, and PT-510-3S-SC-48 models in the IEC 61850-3 Ethernet Switches.


Easy World Automation offers the easiest way to buy the MOXA PT-510-MM-SC-24 Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 8 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 2 SC Ports
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x RS-232 Consoles Port (RJ45 connector), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup Yes : ABC-01
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.39 A @ 24 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 24 VDC (18 to 36 VDC)
Operating Voltage -
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 372,276 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)
Housing Aluminum
Installation DIN-rail mounting (with optional kit)
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Safety: UL 508; IP40; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1210 g (2.69 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
