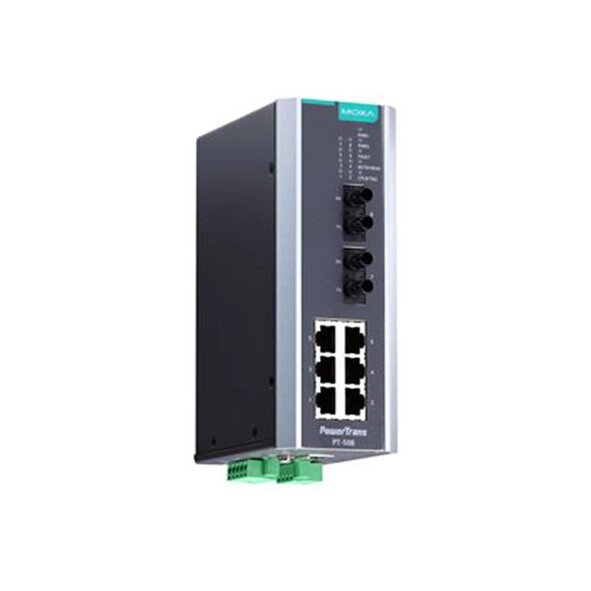

MOXA PT-508-MM-ST-48 Managed Ethernet Switches

MOXA PT-508-MM-ST-48 Managed Ethernet Switches
MOXA PT-508-MM-ST-48 Managed Ethernet Switches
MOXA PT-508-MM-ST-48 Managed Ethernet Switches
MOXA PT-508-MM-ST-48 Managed Ethernet Switches
MOXA PT-508-MM-ST-48 Managed Ethernet Switches
  • 6 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 100BaseFX Ports (multi-mode ST connector)
  • 5 KM Typical data transmission distance on fiber
  • DIN-rail mounting
  • 48 VDC Redundant dual power inputs
  • IP40-rated Aluminum body design
  • -40 to 85°C operating temperature range
  • Brand: MOXA
  • Model: PT-508-MM-ST-48
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Power Utility Products , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Switches , Switches , MOXA PT-508 Series

The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall mounting design of the PT-508 switches simplify network planning and allow greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.


You can also find the PT-508-SS-LC-48, PT-508-MM-ST-HV, and PT-508-MM-ST-24 models in the IEC 61850-3 Ethernet Switches.


Experience the convenient way to purchase the MOXA PT-508-MM-ST-48 Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

switch and hub : Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 6 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 2 ST Ports
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x RS-232 Consoles Port (RJ45 connector), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup Yes : ABC-01
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.12 A @ 48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 48 VDC (36 to 72 VDC)
Operating Voltage -
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 394,238 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in)
Housing Aluminum
Installation DIN-rail mounting, DIN-rail mounting (with optional kit)
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Safety: UL 508; IP40; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 995 g (2.21 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
