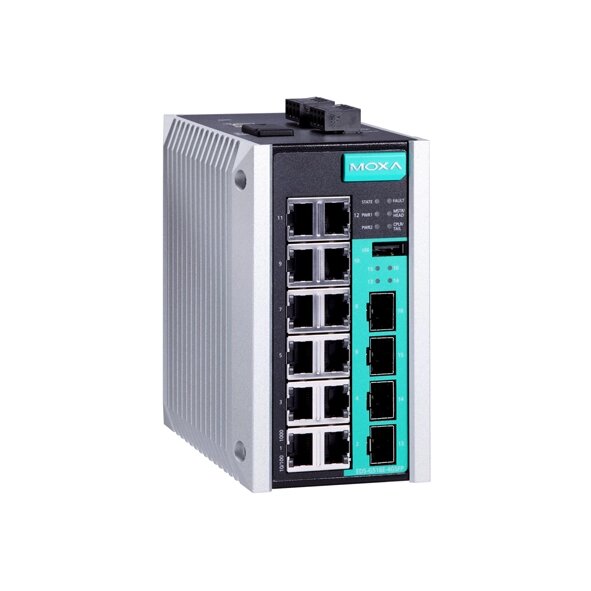

MOXA EDS-G516E-4GSFP-T Managed Ethernet Switches

MOXA EDS-G516E-4GSFP-T Managed Ethernet Switches
MOXA EDS-G516E-4GSFP-T Managed Ethernet Switches
MOXA EDS-G516E-4GSFP-T Managed Ethernet Switches
MOXA EDS-G516E-4GSFP-T Managed Ethernet Switches
MOXA EDS-G516E-4GSFP-T Managed Ethernet Switches

  • 12 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 4 x 100/1000BaseSFP Slots
  • 12/24/48/-48 VDC Redundant dual inputs
  • Din-rail and Wall mounting
  • IP30-rated Metal body design

  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: EDS-G516E-4GSFP-T
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
  • Power Utility
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Layer 2 Switches , PoE Switches , PoE , Managed Ethernet Switches , Managed Switches , Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Road Transportation Products , Railway Transportation Products , Factory Automation Products , Marine Products , Power Utility Products , Oil & Gas Products , Switches , MOXA EDS-G516E Series

The EDS-G516E Series is equipped with 16 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase your system's reliability and improve your network backbone's availability. The EDS-G500E Series is designed specifically for communication-demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable network backbone.


You can also find the EDS-G516E-4GSFP model in the DIN-Rail Ethernet Switches.


Easy World Automation offers the easiest way to buy the MOXA EDS-G516E-4GSFP-T Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 16 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 12 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 4 Ports
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.51 A @ 24 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48/-48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 808,933 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall :IEC 60068-2-32; Maritime: DNV, LR, ABS, NK; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1440 g (3.18 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q VLAN, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
