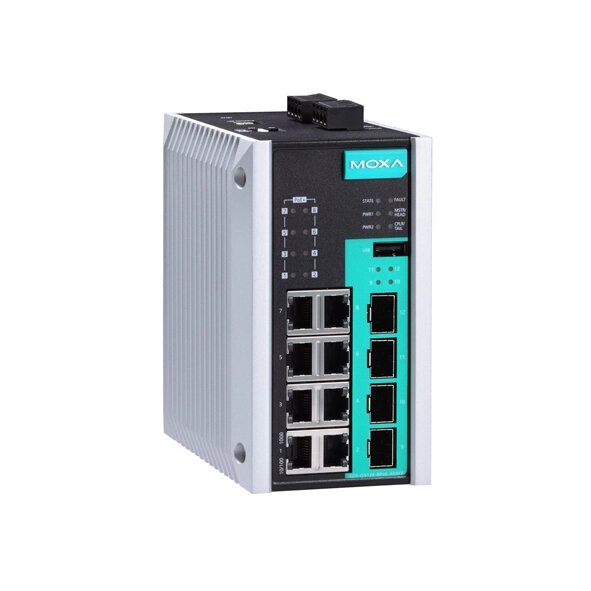

MOXA EDS-G512E-8PoE-4GSFP Managed Ethernet Switches

MOXA EDS-G512E-8PoE-4GSFP Managed Ethernet Switches
MOXA EDS-G512E-8PoE-4GSFP Managed Ethernet Switches
MOXA EDS-G512E-8PoE-4GSFP Managed Ethernet Switches
MOXA EDS-G512E-8PoE-4GSFP Managed Ethernet Switches
MOXA EDS-G512E-8PoE-4GSFP Managed Ethernet Switches
  • 8 x PoE Ports (10/100/1000BaseT(X), RJ45 connector)
  • 4 x 100/1000BaseSFP Slots
  • 48 VDC Redundant dual power inputs
  • Din-rail and Wall mounting
  • IP30-rated Metal body design

  • -10 to 60°C operating temperature

  • Brand: MOXA
  • Model: EDS-G512E-8PoE-4GSFP
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • POE
  • Factory Automation
  • Power Utility
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Layer 2 Switches , PoE Switches , PoE , Managed Ethernet Switches , Managed Switches , Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Road Transportation Products , Railway Transportation Products , Factory Automation Products , Power Utility Products , Switches , MOXA EDS-G512E Series

The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication-demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.


You can also find the EDS-G512E-8POE-4GSFP-T, EDS-G512E-4GSFP, and EDS-G512E-4GSFP-T models in the DIN-Rail Ethernet Switches.


You can explore our wide range of products and enquire about the MOXA EDS-G512E-8PoE-4GSFP Managed Ethernet Switches for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in  Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

switch and hub : Interface
Number of ports 12 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 4 Ports
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports Yes : 8 Ports (RJ45 connector)
Other ports Yes : 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 5.30 A @ 48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 48 VDC
Operating Voltage 44 to 57 VDC (> 50 VDC for PoE+ output recommended)
Power Consumption When selecting a power supply, check the PD power consumption.
switch and hub : General
Fan / Fanless Fanless
MTBF 788,215 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Metal
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508, EN 62368-1, EMC: EN 61000-6-2/-6-4; EMI: FCC Part 15B Class A; EMS: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1,540 g (3.40 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q VLAN, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
