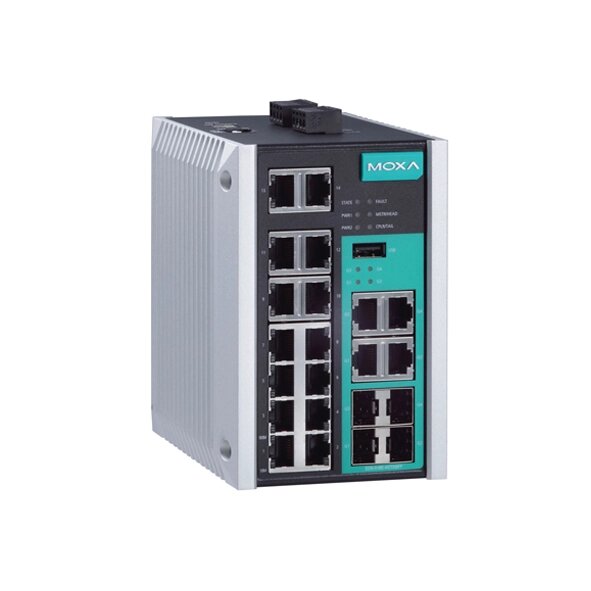

MOXA EDS-518E-4GTXSFP-T Managed Ethernet Switches

MOXA EDS-518E-4GTXSFP-T Managed Ethernet Switches
MOXA EDS-518E-4GTXSFP-T Managed Ethernet Switches
MOXA EDS-518E-4GTXSFP-T Managed Ethernet Switches
MOXA EDS-518E-4GTXSFP-T Managed Ethernet Switches
MOXA EDS-518E-4GTXSFP-T Managed Ethernet Switches

  • 14 x 10/100BaseT(X) Ports (RJ45 connector)
  • 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • 12 to 24 VDC Redundant dual power inputs
  • Din-rail and Wall mounting
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: EDS-518E-4GTXSFP-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Factory Automation
  • Oil & Gas
  • Marine
  • Power Utility
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Oil & Gas Products , Factory Automation Products , Marine Products , Power Utility Products , Railway Transportation Products , Road Transportation Products , MOXA EDS-518E Series

The EDS-518E standalone, compact 18-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 14 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-518E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the system reliability and availability of your network backbone. The EDS-518E also supports advanced management and security features. In addition, the EDS-518E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.


You can also find the EDS-518E-4GTXSFP, EDS-518E-MM-SC-4GTXSFP, EDS-518E-SS-SC-4GTXSFP,  and EDS-518E-MM-ST-4GTXSFP models in the DIN-Rail Ethernet Switches.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA EDS-518E-4GTXSFP-T Managed Ethernet Switches through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 18 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 14 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x RS-232 Console Port (Type B connector)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.37 A @ 24 V
Power Input Plugin ( Redundant ) Yes
Input Voltage 12/24/48/-48 VDC, redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 723,953 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in)
Housing Metal
Installation DIN-rail mounting, wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Maritime: DNV-GL, LR, ABS, NK; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Traffic Control: NEMA TS2; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1,518 g (3.35 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q VLAN, BPDU Guard, BPDU Filter, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
