Description
Quasi-Wide-Range Input: With the switch in the 230V position the power-supply unit operates at low and moderate loads (up to 2 A) at any input voltage between 95 and 264 VAC.
Note: At DC input, always leave the switch in the 230V position
Unit is internally fused (fuse not accessible). External fuse not necessary, but recommended (common thermomagnetic 10A, B-type 'circuitbreaker' switch used anyway to fuse the input lines).
Design advantages:
- All connection blocks are easy to reach as mounted at the front panel.
- Input and output are strictly apart from each other and so cannot be mixed up (Input below, output above).

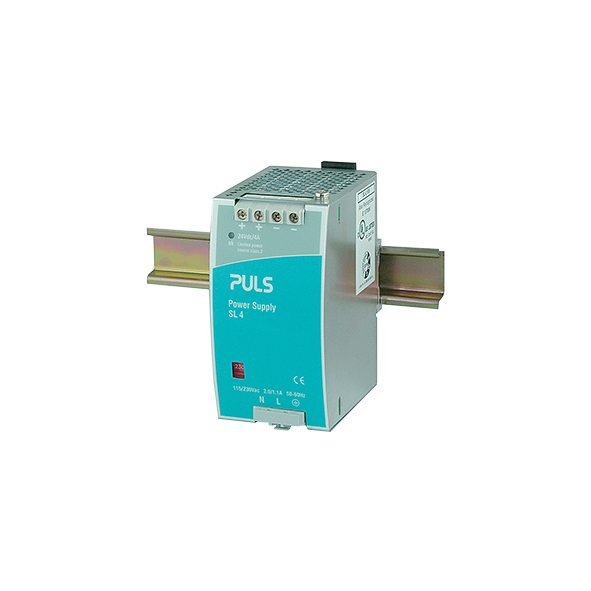

You can place an order for the PULS SL4.100 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 100-120/200-240V |
| DC-Input Voltage | DC 300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-24V |
| Output Current Range | 4A |
| Output Current | 4A at 24V |
| Output Power | 96W |
| max. Ripple and Noise Voltage | 25mVpp |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 64mm x 124mm x 103mm |
| Weight | 620g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
