Description
Inrush current limiting done with a fixed 15R resistor (not a thermistor) which is bridged after the unit is running, so losses are minimised. That means no reset time even at a warm-start.
To be fused with a 10A, B-type ’circuit-breaker’ switch based on the usual thermomagnetic overload sensing principle (used anyway to fuse the input lines).
Design advantages:
- All connection blocks are easy to reach as mounted at the front panel.
- PVC insulated cable can be used for all connections, as the connection blocks are mounted in the cooler area on the underside of the unit.

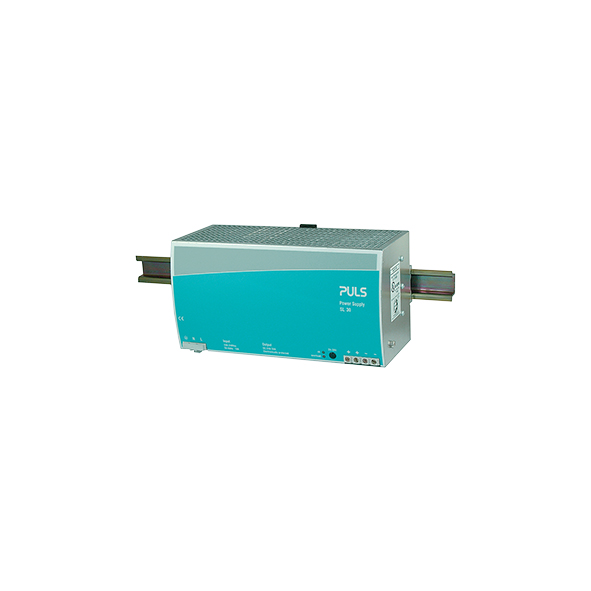

You can place an order for the PULS SL30.100 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 208-240V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | |
| Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 20-17.1A |
| Output Current | 17.1A at 28V, 20A at 24V |
| Output Power | 720W |
| max. Ripple and Noise Voltage | 30mVpp |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 240mm x 124mm x 112mm |
| Weight | 2000g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
