To be fused with a 16A, B-type 'circuit-breaker' switch based on the usual thermomagnetic overload sensing principle (used anyway to fuse the input lines).
To achieve current sharing the output V/I characteristic can be altered to be 'softer' (25V at 0.4A, 24V at 20A). This is done by repositioning an external bridge connection (without opening the unit).

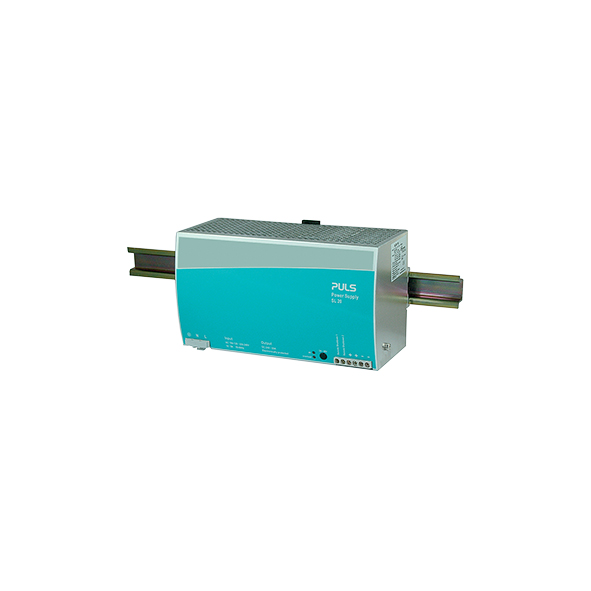

You can place an order for the PULS SL20.115 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 100-120/220-240V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 20-17.1A |
| Output Current | 17.1A at 28V, 20A at 24V |
| Output Power | 480W |
| DIN-rail Power supply : General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 220mm x 124mm x 102mm |
| Weight | 2500g |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
