Description
To be fused with a 16A, B-type 'circuit-breaker' switch based on the usual thermomagnetic overload sensing principle (used anyway to fuse the input lines).
The unit exclusively uses longlife electrolytics, specified for +105°C (cf. ’The SilverLine’, p.2). High reliability, as
- only five aluminium electrolytics and
- no small aluminium electrolytics are used.

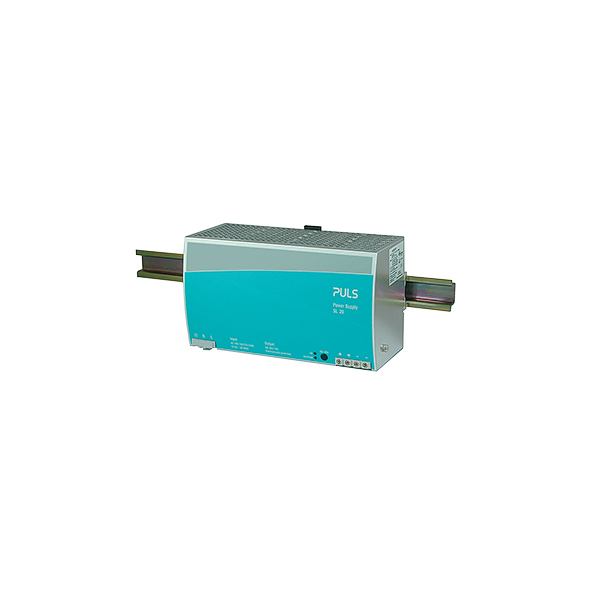

You can place an order for the PULS SL20.113 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 100-120/220-240V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | |
| Output Data | |
| nominal Voltage | 48Vdc |
| Adjustment Range | 48-56V |
| Output Current Range | 10-8.6A |
| Output Current | 8.6A at 56V, 10A at 48V |
| Output Power | 480W |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 220mm x 124mm x 102mm |
| Weight | 1800g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
