Description
To be fused with a 16A, B-type 'circuit-breaker' switch based on the usual thermomagnetic overload sensing principle (used anyway to fuse the input lines).
Design advantages:
- All connection blocks are easy to reach as mounted on the front panel.
- PVC insulated cable can be used for all connections, as the connection blocks are mounted in the cooler area on the underside of the unit.

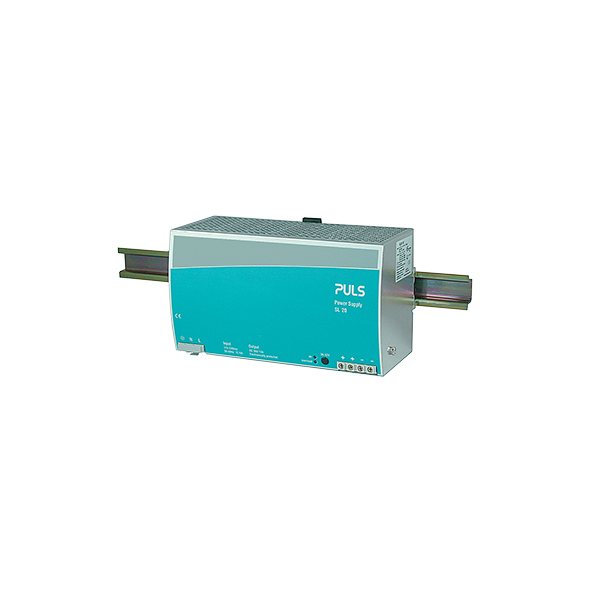

You can place an order for the PULS SL20.112 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 100-120/220-240V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Output Data | |
| nominal Voltage | 36Vdc |
| Adjustment Range | 36-43V |
| Output Current Range | 13.3-11.4A |
| Output Current | 11.4A at 43V, 13.3A at 36V |
| Output Power | 480W |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 220mm x 124mm x 102mm |
| Weight | 2500g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
