Description
To be fused with a 10A, B-type 'circuit-breaker' switch based on the usual thermomagn. overload sensing principle (used anyway to fuse the input lines). In addition, the unit contains an internal fuse (not accessible).
The unit exclusively uses longlife electrolytics, specified for +105°C (cf. ’The SilverLine’, p.2).

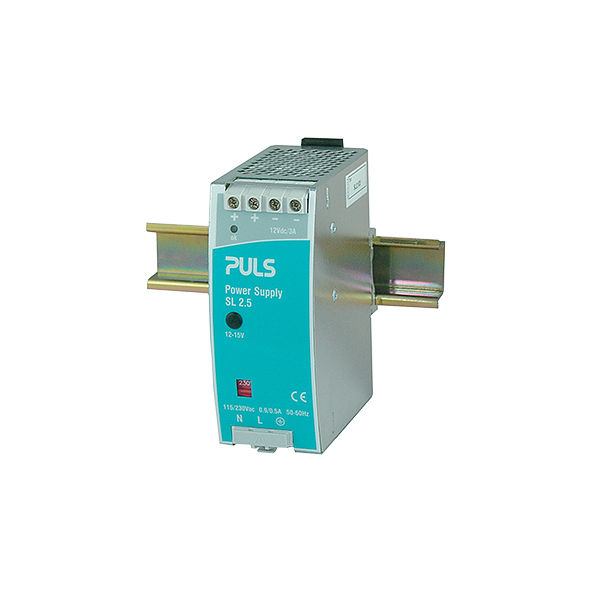

You can place an order for the PULS SL2.103 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Input Data | |
---|---|
AC-Input Voltage | AC 100-120/200-240V |
DC-Input Voltage | DC 300V (-20%/+25%) |
EN61000-3-2(PFC-Norm) | fulfilled |
Output Data | |
nominal Voltage | 12Vdc |
Adjustment Range | 12-15V |
Output Current Range | 3-2.7A |
Output Current | 2.7A at 15V, 3A at 12V |
Output Power | 40W |
max. Ripple and Noise Voltage | 25mVpp |
Physical Characteristics | |
Mounting | DIN-Rail |
Dimension | 49mm x 124mm x 102mm |
Weight | 460g |
General | |
Connection method | Screw terminals |
E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
Package Checklist | |
Packaging Unit | 1pc |
