Description
Unit is internally fused (fuse not accessible). For external fusing of unit and for input line protection, use circuit breaker with B-characteristic 10A or slower action, or alternatively T10A HBC fuse.

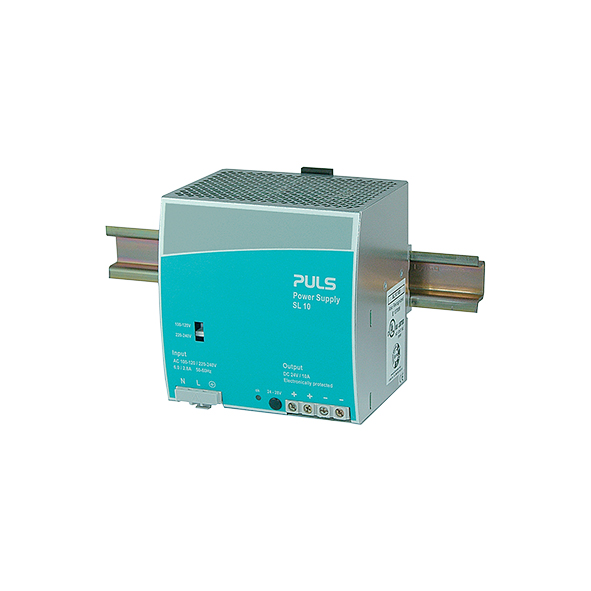

You can place an order for the PULS SL10.105 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 100-120/210-240V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 10-8.6A |
| Output Current | 8.6A at 28V, 10A at 24V |
| Output Power | 240W |
| max. Ripple and Noise Voltage | 30mVpp |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 120mm x 124mm x 102mm |
| Weight | 1195g |
| General | |
| Connection method | |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
