Description
Unit is internally fused (fuse not accessible). For external fusing of unit and for input line protection, use circuit breaker with B-characteristic 10A or slower action, or alternatively T10A HBC fuse.

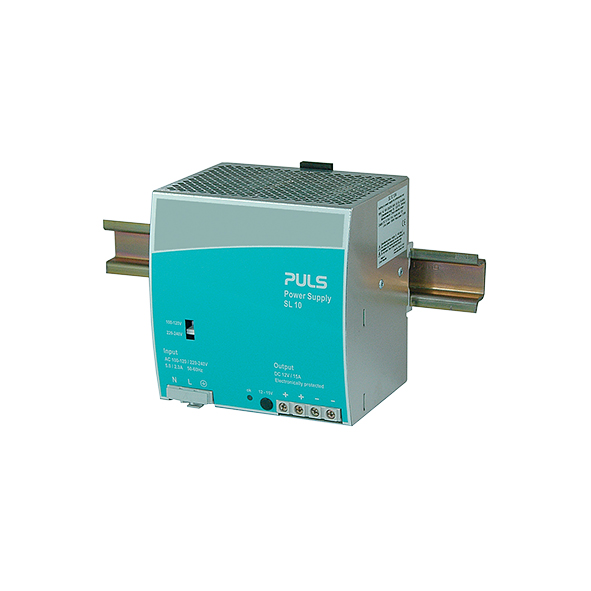

You can place an order for the PULS SL10.104 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Input Data | |
|---|---|
| AC-Input Voltage | AC 100-120/210-240V |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | |
| Output Data | |
| nominal Voltage | 12Vdc |
| Adjustment Range | 12-15V |
| Output Current Range | 15-12A |
| Output Current | 12A at 15V, 15A at 12V |
| Output Power | 180W |
| max. Ripple and Noise Voltage | 50mVpp |
| Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 120mm x 124mm x 102mm |
| Weight | 980g |
| General | |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599,ETIM 5.0 EC002540, HS Code HS 85044082 |
| Package Checklist | |
| Packaging Unit | 1pc |
