Description
Unit is internally fused (fuse not accessible). For external fusing of unit and for input line protection, use circuit breaker with B-characteristic 10A or slower action, or alternatively T10A HBC fuse.

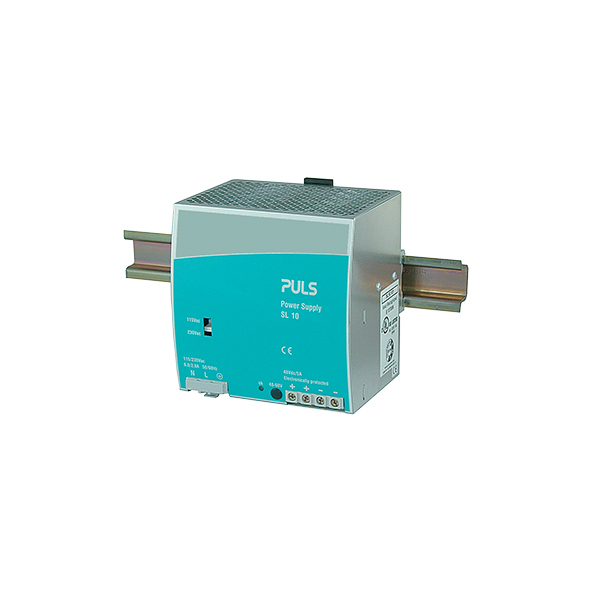

You can place an order for the PULS SL10.101 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Input Data | |
---|---|
AC-Input Voltage | AC 100-120/210-240V |
DC-Input Voltage | - |
EN61000-3-2(PFC-Norm) | |
Output Data | |
nominal Voltage | 48Vdc |
Adjustment Range | 48-56V |
Output Current Range | 5-4.3A |
Output Current | 4.3A at 56V, 5A at 48V |
Output Power | 240W |
max. Ripple and Noise Voltage | 50mVpp |
Physical Characteristics | |
Mounting | DIN-Rail |
Dimension | 120mm x 124mm x 102mm |
Weight | 980g |
General | |
Connection method | Screw terminals |
E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
Package Checklist | |
Packaging Unit | 1pc |
