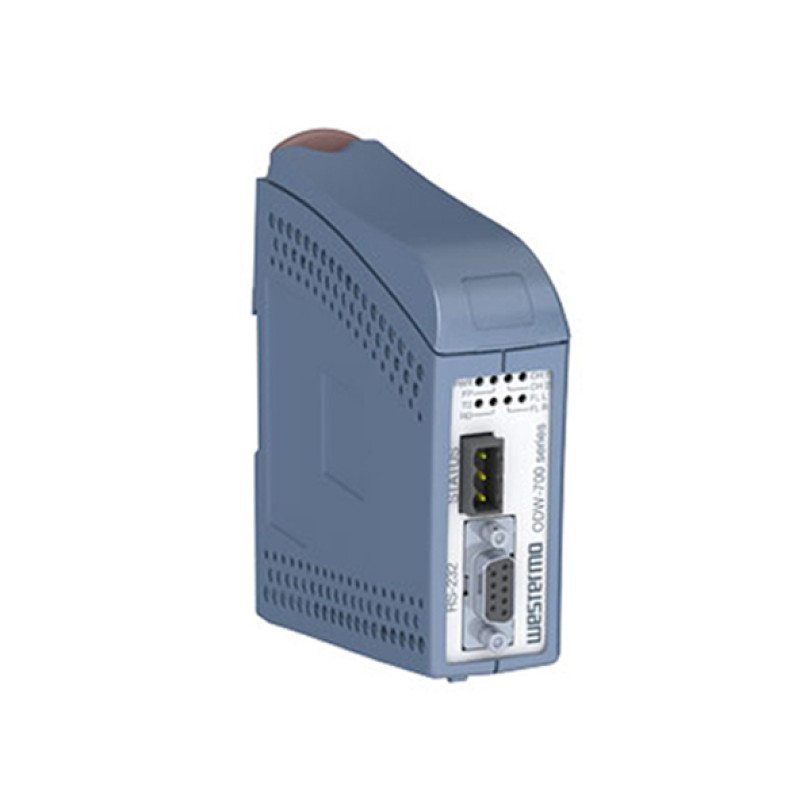

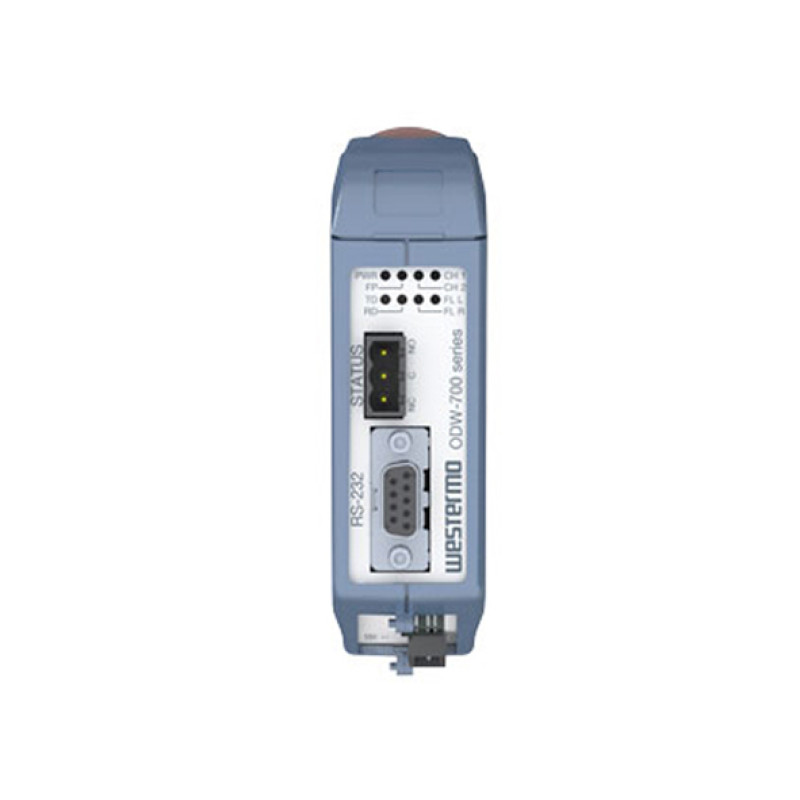

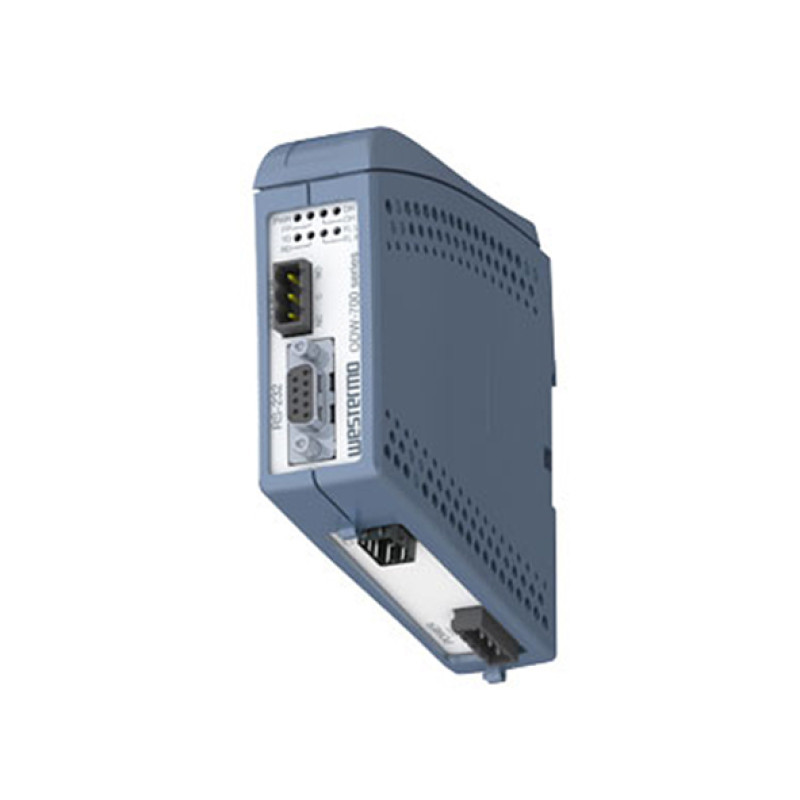

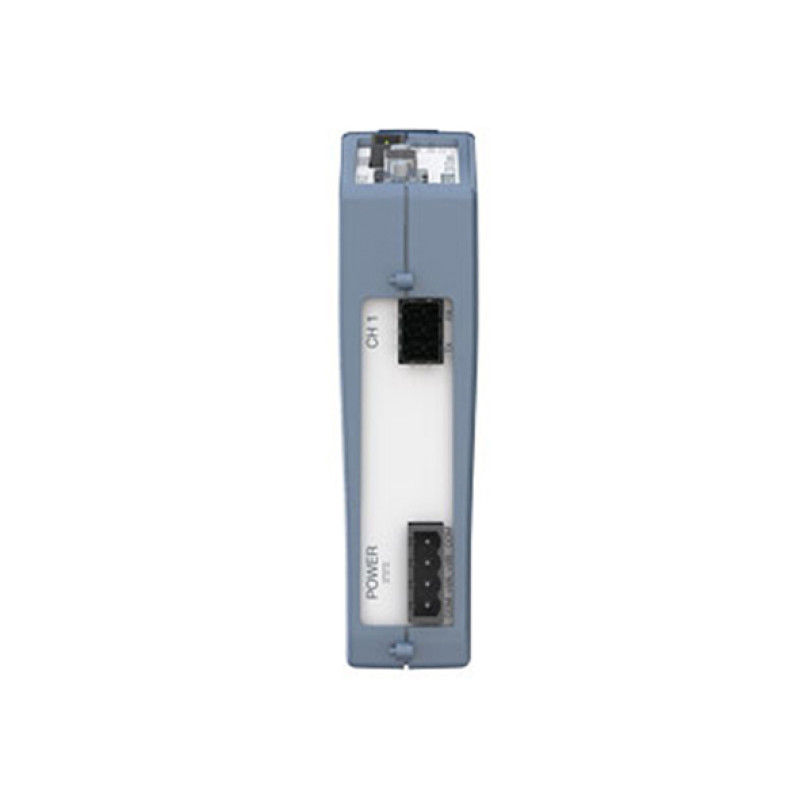

Westermo ODW-720-F2 Serial to Fiber Converter
- Ring / Multidrop Fibre Converter RS-232
- 1 x RS-232 Port (300 bit/s – 250 kbit/s)
- 2 x 100 Mbit/s SFP Slots (LC connector)
- Up to 120 KM Typical data transmission distance on fiber
- Compact housing with integral DIN rail clip
- IP21-rated PC/ABS body material design
- Dual 10 V to 60 VDC power input
- -40 to +60°C operating temperature range
.png)
Description
The ODW-720-F2 has been designed to allow the use of fiber optic cables on RS-232 networks. The design allows the use of a range of Westermo-verified SFP (Small Form Pluggable) transceivers, which can provide solutions with, for example, only a single fibre or distances up to 120 km. Both multidrop networks and redundant rings can be formed using a mixture of transceiver types.
This unit has been designed for industrial use where the requirement is for a long and reliable service life in a harsh environment. To ensure this reliable operation, we manufacture using the highest quality components. The ODW-720 draws on Westermo’s many years of knowledge of serial protocols and can even transmit a second data channel if necessary. Large ring networks can be created to provide network resilience to guarantee system functionality, even if a cable is damaged. The ring recovery time ensures that the network devices are not aware of the failure. The fault contact provides a method to communicate network failures.
You can also find the ODW-710-F2, ODW-720-F1, and ODW-730-F2 models in the Fiber Optic Modems.
You can explore our wide range of products and enquire about the Westermo ODW-720-F2 Serial to Fiber Converter for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | : 1 x RS-232 port (female 9-position D-sub) |
| USB | |
| Other ports | : 2 x 100 Mbit/s SFP Slots (LC connector) |
| Isolation | : To power and status ports |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 300 bit/s – 250 kbit/s |
| Maximum data transmission distance | Up to 120 km (depending on SFP module and fiber type) |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | - |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | Asynchronous or synchronous |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Input Voltage | 12 to 48 VDC and 24 VAC |
| Input Current | 400 mA @ 12 VDC, 200 mA @ 24 VDC, 100 mA @ 48 VDC |
| Connector | Detachable screw terminal |
| General | |
| Fan / Fanless | Fanless |
| MTBF | MIL HDBK-217K: 500,000 hours |
| Physical Characteristics | |
| Dimensions | 34 x 122 x 123 mm (1.34 x 4.80 x 4.84 inches) |
| Housing | PC/ABS |
| Installation | Din-rail mounting |
| Operating Temperature | -40 to +60°C (-40 to +140°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN/IEC 61000-6-1, Immunity residential environments, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Marine: DNV rules for classification - Ships and offshore units; Safety: UL/CSA 60950-1, IT equipment; IP21; MIL-HBDK-217F; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27 |
| Storage Temperature | -40 to +60°C (-40 to +140°F) |
| Weight | 260 gr |
| LED Indicators | |
| LED Per Port | |
| Power | |
