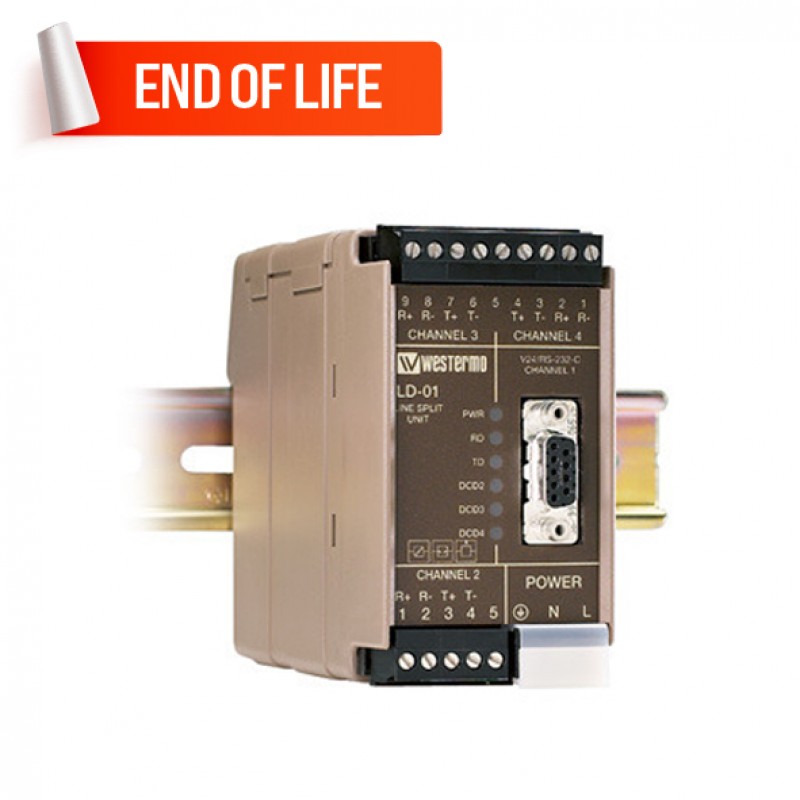

Westermo LD-01 DC Industrial Line Sharing Modem

1 x 10 mA tri-state balanced current loop (up to 38.4 kbit/s)
1 x RS-232 Serial port (up to 38.4 kbit/s, 9 pin D-sub female)
Purpose-built DIN rail casing with integral clip
12-36 VDC input power (with Galvanic isolation)
+5 to +50ºC operating temperature range

Brand: WESTERMO
Model: 3154-1001

0 reviews • Write a review

Datasheet

Operating Temperature (5 to 55°C)
Relative Humidity (0 to 95% RH, non-condensing)
IP protection (IP20)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

SATEL COMPACT-4BT Serial Radio Modem

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SATEL EASY-PROOF Serial Radio Modem

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SATEL COMPACT-PROOF (869 and 865 MHZ) Serial Radio Modem

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

SATEL COMPACT-PROOF Serial Radio Modem

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo GDW-11 Industrial GSM Modem

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo GDW-11-485 Industrial GSM Modem

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Modems , Multidrop Modems , Line Sharing Modems , Industrial Data Communications , Industrial Modems , Westermo LD-01

The LD-01 is a four-port line split modem allowing RS-232 systems to be connected in multidrop applications over long distances. The interface can be either standard RS-232 or W1, a balanced current loop allowing transmission distances up to 18 km (11.18 mi). In multidrop applications, the LD-01 acts as a repeater on the W1 interface.

DIP switches are used for configuration options which make the unit simple to install. The serial interface is connected through a standard 9 pol D-sub or terminal block with screw connectors.

The LD-01 is designed for use in heavy-duty industrial applications. The different power options, galvanic isolation, and transient protection guarantee communication in the worst environments. The LD-01 has been tested to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments.

The design of the line split modem makes the LD-01 suitable for a variety of applications with various speeds and data bit options. The V and Y mode emulate half or full duplex communication between master and slaves and a bypass board can be fitted to ensure networks can’t be broken by power failure at a single point.

You can also find the other types of modems in the Modems.

Experience the convenient way to purchase the Westermo LD-01 DC Industrial Line Sharing Modem in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

3g modem : Interface
SIM card slot	No
Ethernet Ports	No
USB	No
Digital Input and Output	No
Serial port	Yes : 1 x RS-232 Serial port (up to 38.4 kbit/s, 9 pin D-sub female), 1x 10 mA tri-state balanced current loop (up to 38.4 kbit/s)
Alert Output	No
Band Options	-
Cellular Standards	-
Cellular Antenna Connectors	No
WLAN Standards	No
WLAN Antenna Connector	No
GPS Antenna Connector	No
3g modem : Radio specifications
Radio Connection type	-
Maximum data transfer speed of 2G	-
Maximum data transfer speed of 3G	-
Maximum data transfer speed of 4G	-
WiFi Radio Frequency	-
3g modem : Software Specifications
Routing Redundancy	-
VPN	-
Firewall	-
Time Management	-
Management	-
3g modem : General
LED Indicators	Channel 1: RD, TD; Channel 2-4: DCD
MTBF	-
Operating mode	Line Sharing Modem
3g modem : Standards and protocols
Protocols	-
3g modem : Features and capabilities
Send and receive SMS	No
3g modem : Security
Security and Encryption	No
Authentication	No
3g modem : Power Requirements
Power Connector	-
Power Consumption (Output Adapter)	Max 3W
Input Voltage	12-36 VDC (Operating voltage)
POE Support	No
Input Current	80 mA @ 24 VDC
Reverse Polarity Protection	No
3g modem : Buttons
Power button	No
Reset	No
3g modem : Physical Characteristics
Installation	DIN-rail mounting
Dimensions	55 x 100 x 132 mm (2.16 x 3.93 x 5.19 in)
Housing	-
Weight	0.3 kg
Operating Temperature	+5 to +50ºC (+41 to +122°F)
Storage Humidity	5 to 95% RH, non-condensing
Storage Temperature	-
Type of Use	Industrial environment
Standards and Certifications	Ingress protection: IP20; EMC: SS-EN 50081-1/SS-EN 55022 (1992): Class B, SS-EN 50082-2/SS-EN 61000-4-2 (1995): 4 kV CD, 8 kV AD, SS-EN 50082-2/SS-EN 61000-4-4 (1995): 4 kV power, 2 kV signals, SS-EN 50082-2/SS-EN 50140 (1993): 10 V/m, SS-EN 50082-1/SS-IEC 801-3 (1984): 3 V/m; Safety: EN 60950 (1992)
