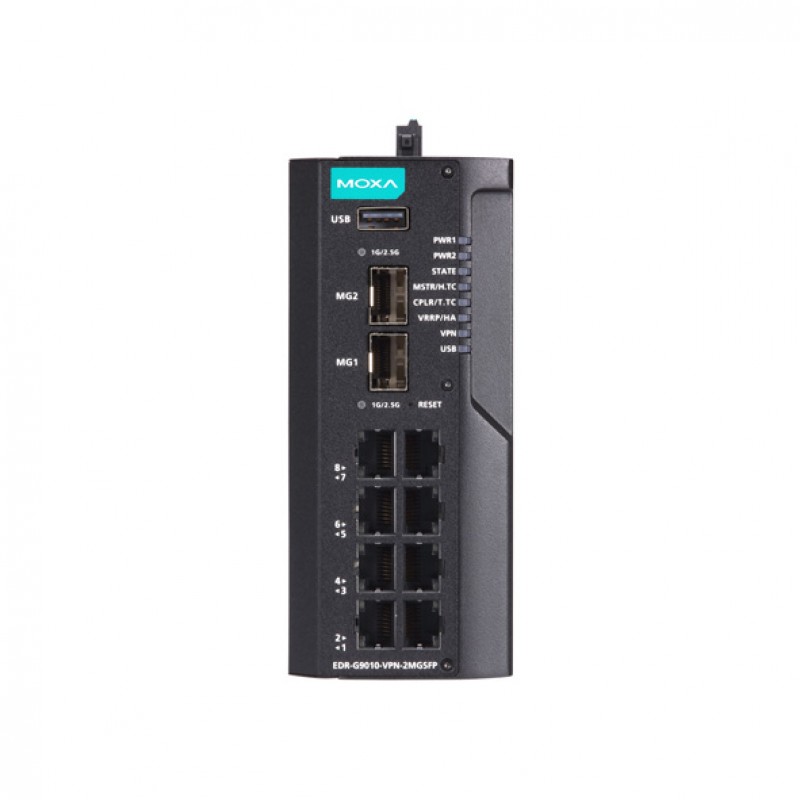

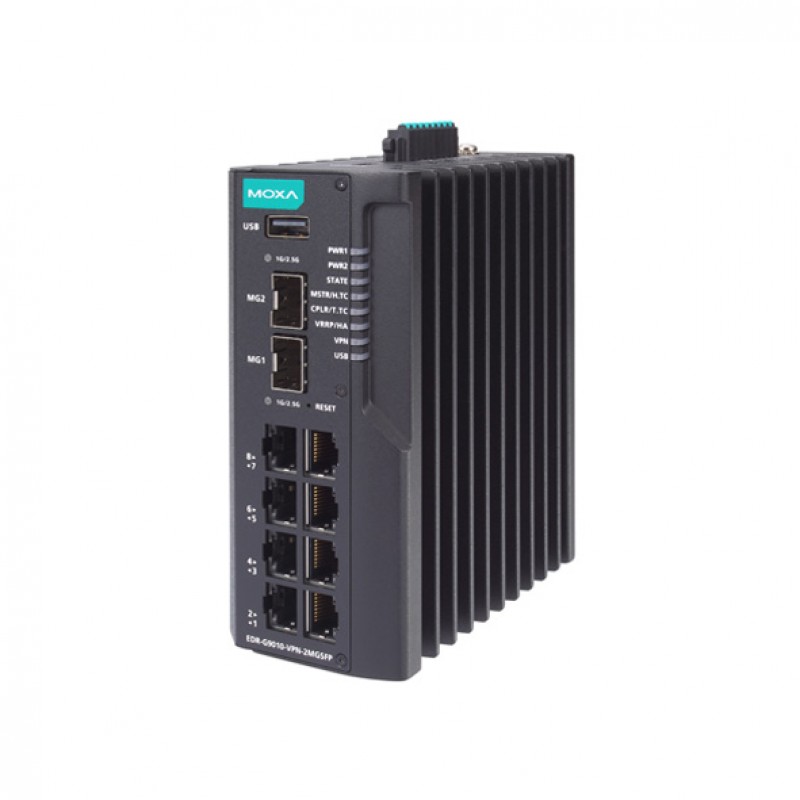

MOXA EDR-G9010-VPN-2MGSFP Industrial Secure Router
- All-in-one firewall/NAT/VPN/router/switch with 10 GbE ports
- Secure remote access tunnel with VPN
- Stateful firewall protects critical assets
- Inspect industrial protocols with Packet Guard technology
- Easy network setup with Network Address Translation (NAT)
- RSTP/Turbo Ring redundant protocol enhances network redundancy
- Security features based on IEC 62443/NERC CIP
- Supports secure boot for checking system integrity
- Check firewall settings with the intelligent Setting Check feature
- Brand: MOXA
- Product Code: EDR-G9010-VPN-2MGSFP
Description
The EDR-G9010 Series is a set of highly integrated
industrial multi-port secure routers with firewall/NAT/VPN and managed Layer 2
switch functions. These devices are designed for Ethernet-based security
applications in critical remote control or monitoring networks. These secure
routers provide an electronic security perimeter to protect critical cyber
assets including substations in power applications, pump-and-treat systems in
water stations, distributed control systems in oil and gas applications, and
PLC/SCADA systems in factory automation.
Defend Against Malicious Threats With Advanced Cybersecurity
Features
The EDR-G9010 Series’ embedded firewall uses policy rules to
control network traffic between trusted zones while Network Address Translation
(NAT) shields the internal network from unauthorized access by outside hosts.
The Virtual Private Networking (VPN) functionality further provides users with
secure communication tunnels when accessing the private network from the public
Internet. To help protect your OT assets from cyberattacks, the EDR-G9010
Series supports Deep Packet Inspection (DPI) to examine the data portion of
network packets for various OTspecific protocols.
Simplify Configurations With the User-friendly Interface and
Quick Settings
The EDR-G9010 Series’ “Interface Type Quick Settings”
provides an easy way for users to set up WAN, LAN, and Bridge ports for routing
functionality in just four steps. In addition, the “Quick Automation Profile”
feature gives engineers a simple way to configure the firewall filtering
function for general automation protocols, including EtherNet/IP, Modbus TCP,
EtherCAT, FOUNDATION Fieldbus, and PROFINET.
Industrial-grade Design to Ensure Uninterrupted Network
Connectivity
The EDR-G9010 Series’ rugged hardware makes these secure routers ideal for harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the EDR-G9010 Series supports comprehensive Layer 2 and Layer 3 redundancy mechanisms to ensure that your network stays connected at all times.
Inquire about the MOXA EDR-G9010-VPN-2MGSFP Industrial Secure Router, designed
for industrial automation solutions. Feel free to get in touch with our
sales team to give you the best solutions at the best global price in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
INTERFACE | |
---|---|
Ethernet Ports | 8 x 10/100/1000BaseT(X) Ports (RJ45 connector) |
Serial Ports | |
Input/Output Channels | Digital Input Channels : +13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA |
LED INTERFACE | |
LED Indicators | PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB |
GENERAL | |
Supported Protocols | Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP, HTTPS, SSH, RSTP, STP, Turbo Ring v2, NTP Server/Client, SNTP, OSPF, RIPV1/V2, Static Route, IGMP v1/v2/v3, DDoS, Ethernet protocols, ICMP, DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet |
MTBF | 1,080,807 hrs |
POWER REQUIREMENTS | |
Input Voltage | 12/24/48 VDC |
Input Current | 1.51 A @ 12 VDC, 0.70 A @ 24 VDC, 0.35 A @ 48 VDC |
Operating Voltage | - |
Overload Current Protection | - |
Reverse Polarity Protection | Supported |
Power Connector | Removable terminal block |
PHYSICAL CHARACTERISTICS | |
Housing | Metal |
IP Rating | - |
Dimensions | 58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in) |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | EMC, EMI, EMS, EN 50121-4, NEMA TS2, Maritime IEC 60945, IEEE 1613, IEC 61850-3 Edition 2.0, Shock, Freefall, Vibration |
