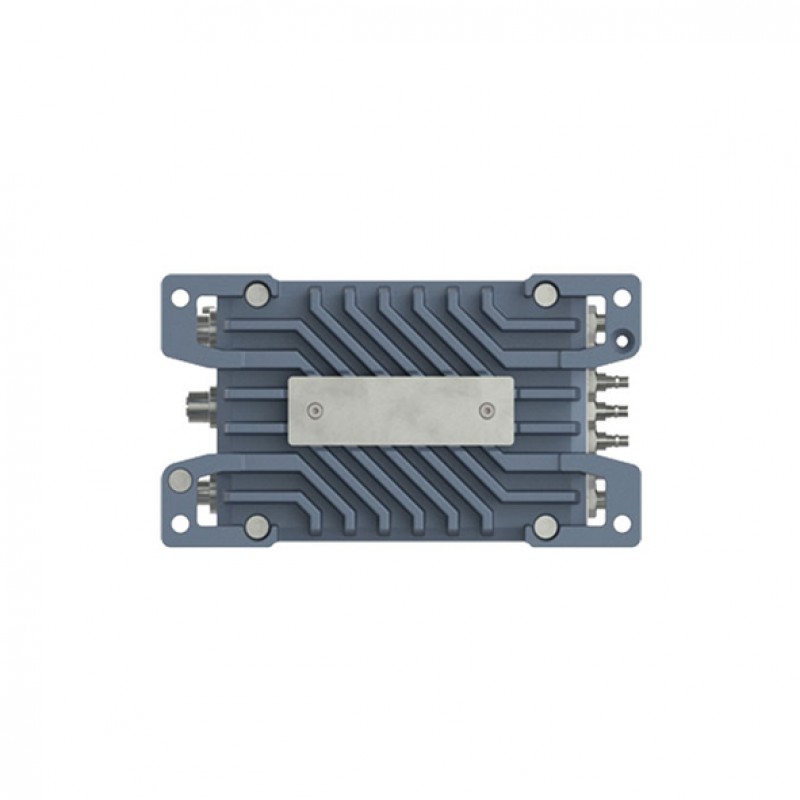

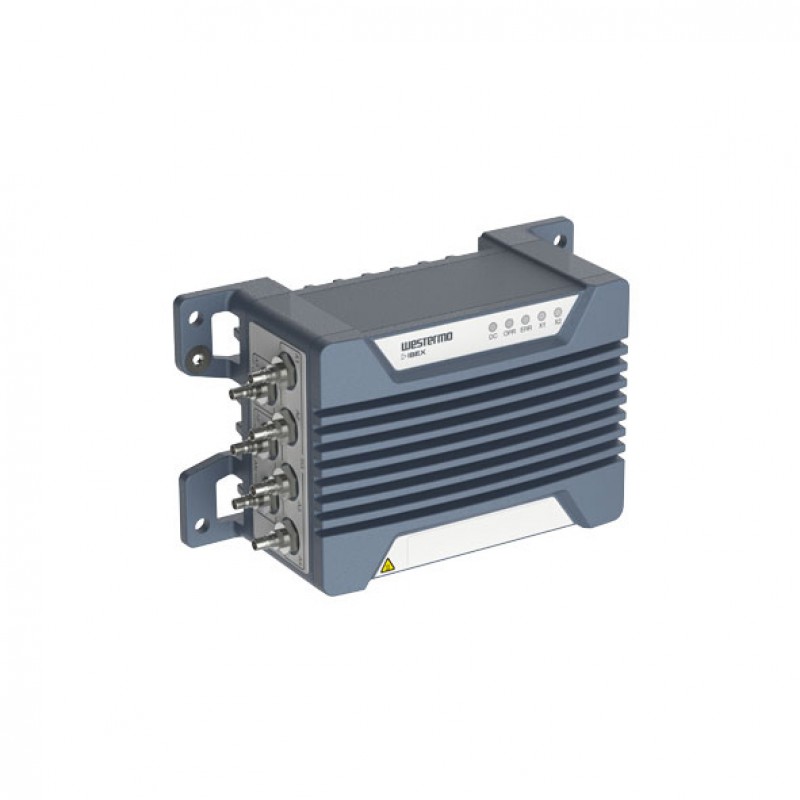

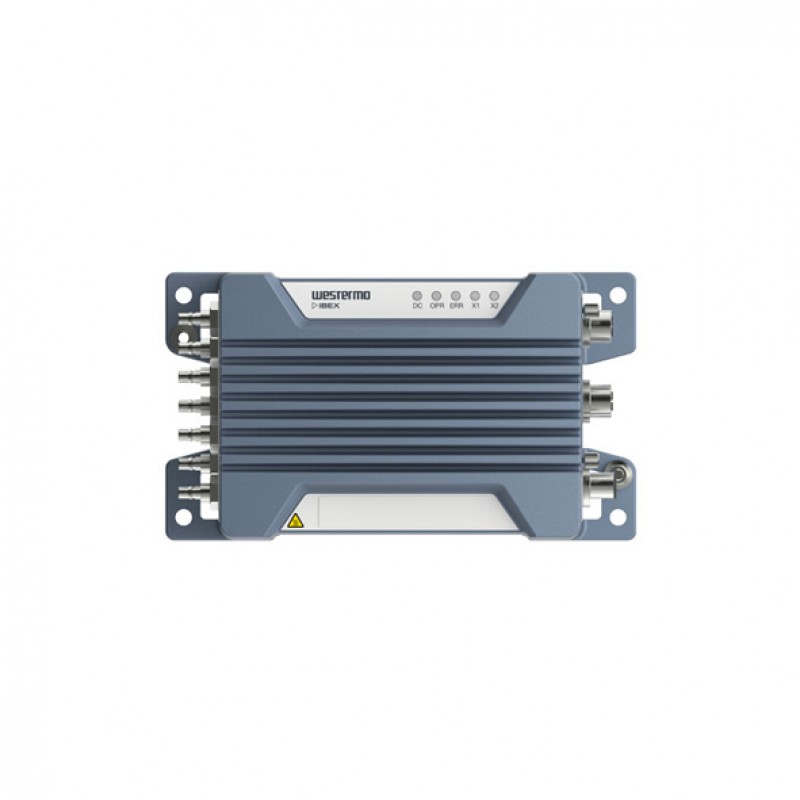

Westermo Ibex-RT-630-5G-LV EU Industrial 5G and WLAN Router
- Supports Europe Frequency Bands
- 3GPP Release 16 - 5G NSA/SA
- 5G sub 6 GHz 4x4 MIMO interface
- 2 x 10/100/1000 Base-T Ethernet ports (M12 connector)
- 2 x Mini SIM (2FF) card slots
- IP66-rated Metal body design
- 24 VDC isolated or PoE IEEE 802.3at Class 4
- Screw mount installation design
- -40 to +70°C operating temperature range
.png)
Description
The Ibex-RT-630-5G is a
mobile 5G router for onboard usage in trains, trams, locomotives, mining
vehicles, and bus applications. The Ibex-RT-630-5G offers outstanding performance
and rugged internet connectivity backup, enabling hybrid train-to-ground installations
with a single device.
The Mobile Communication
Gateway (MCG) router is designed to withstand tough onboard environmental conditions and can be remotely managed using a web browser or SNMP management tools. It provides advanced firewall functionalities and high-performance
VPN connectivity.
The router exceeds the
high requirements for the most bandwidth-demanding applications worldwide and
features a wide range of bands. A compact design enables quick and easy
installation into the tight spaces of trains, while configuration and unit
replacement are simplified by a SIM card memory for configuration parameters.
Dual SIM allows for further performance optimizations and carrier redundancy.
IP66-rating and a wide temperature range from -40 °C to +70 °C ensure that the
devices can be installed virtually anywhere, without the need of additional
protection.
Meeting the requirements
of the rail market, Ibex-RT-630-5G is very well-suited for any deployment in
challenging environments. Adopting the 3GPP Rel-16 technology, it supports both
5G NSA and SA modes. The WLAN interface supports the Westermo roaming feature and
can be use as a private WLAN-based WAN gateway as well.
You can also find the Ibex-RT-630-5G-LV NA model in the Wireless Routers.
Easy World Automation offers the easiest way to buy the Westermo Ibex-RT-630-5G-LV EU Industrial 5G and WLAN Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x Mini-SIM (2FF) card slots |
| Ethernet Ports | : 2 x 10/100/1000 Base-T, 2 x M12 X-coded connectors |
| USB | |
| Digital Input and Output | |
| Serial port | |
| Alert Output | |
| Band Options | 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79; 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79; LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48; LAA: B46 (TDD); UMTS-WCDMA: B1/B2/B4/B5/B8/B19 |
| Cellular Standards | 5G, LTE, LAA, UMTS-WCDMA |
| Cellular Antenna Connectors | 4 x QMA compatible antenna connectors for 5G/LTE/WCDMA |
| WLAN Standards | IEEE802.11b, 802.11g, 802.11a, 802.11n |
| WLAN Antenna Connector | 2 x QMA compatible antenna connectors for WLAN |
| GPS Antenna Connector | 1 x QMA compatible antenna connector for GNSS |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | WCDMA: DL 42 Mbps; UL 5.76 Mbps |
| Maximum data transfer speed of 4G | 5G SA: DL 2.4 Gbps; UL 900 Mbps; 5G NSA: DL 3.3 Gbps; UL 600 Mbps; LTE: DL 1.6 Gbps; UL 200 Mbps |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | OpenVPN, IPsec, Wireguard, GRE/GRETAP, VXLAN |
| Firewall | Firewall L2/L3, NAT, Port Forwarding |
| Time Management | |
| Management | SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP) |
| General | |
| LED Indicators | : DC, OPR, ERR, X1, X2 |
| MTBF | 283,858 hours (IEC 62380) |
| Operating mode | Access Point, Client, Bridge, Inter-consist link |
| Standards and protocols | |
| Protocols | Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server), Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode, Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE) |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Encryption: SNMP v2c and v3 |
| Authentication | USM |
| Power Requirements | |
| Power Connector | M12 A-coded male |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 24 VDC isolated, 0.6 A max. or PoE IEEE 802.3at Class 4 |
| POE Support | |
| Input Current | 0.6 A |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | Screw mounting |
| Dimensions | 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches) |
| Housing | Full metal |
| Weight | 1.54 kg without antennas |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Storage Humidity | 5-95 % relative humidity |
| Storage Temperature | -55 to +85°C (-67 to +185°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Ingress protection: IP66; IEC 62380; Climate: EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock, EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signalling and telecommunications; EMC: EN 50155, Railway applications - Electronic equipment used on rolling stock, EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus, EN 50121-4, Railway applications - Electromagnetic compatibility. Part 4: Emission and immunity of the signalling and telecommunications apparatus, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems, ETSI EN 301 489-24, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment, ETSI EN 301 489-52, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 52: Specific conditions for Cellular Communication Mobile and portable (UE) radio and ancillary equipment; Mechanical (Shock and vibration): EN 61373, category 1, class A and B, EN 50125-3, Outside the track; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155, Railway applications - Electronic equipment used on rolling stock; Radio communication: ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques, ETSI EN 301 893, 5 GHz RLAN, IEEE 802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications, ETSI EN 301 908-1/2/13/25, IMT cellular networks, 3GPP Release 16 - 5G NSA/SA, 3GPP LTE Advanced standard, FCC-47-15, Radio frequency devices, FCC-47-22, Public mobile services, FCC-47-24, Personal communications services, FCC-47-27, Miscellaneous wireless communications services; Safety: EN 45545-2, Fire protection on railway vehicles; Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G; Vibration: IEC 60068-2-64, IEC 61373, MIL-STD-810G |
