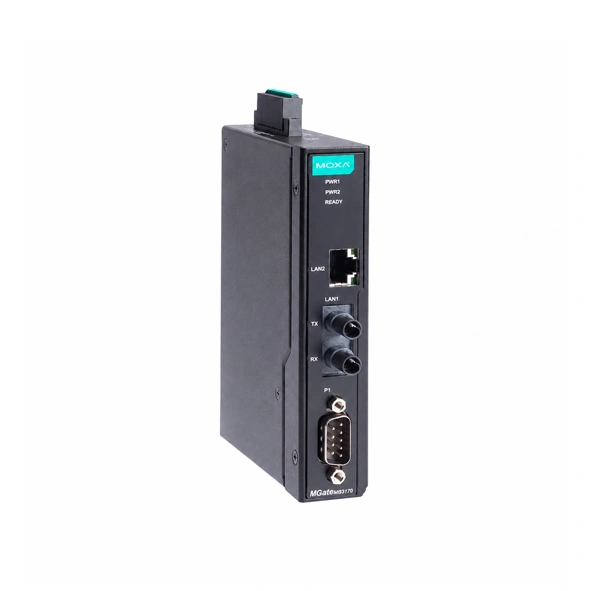

Name: MOXA MGate MB3170-M-ST-G2 Industrial Ethernet Gateway
Brand: MOXA
Availability: OutOfStock

MOXA MGate MB3170-M-ST-G2 Industrial Ethernet Gateway

Key Features:

Serial to Ethernet Modbus Gateway
1 x 10/100BaseT(X) Port (RJ45 connector)
1 x 100BaseFX Port (Multi-mode ST connector)
1 x RS-232/422/485 Serial Port (DB9-M connector)
12 to 48 VDC Redundant dual power inputs
IP30-rated Metal body design
-10 to 60°C operating temperature range

Brand: MOXA
Model: MGate MB3170-M-ST-G2

0 reviews • Write a review

Datasheet

Operating Temperature (-10 to 60°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Vibration (IEC 60068-2-6)
Hazardous Location (Class 1 Division 2, ATEX, IECEx)

Marine
Oil & Gas

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA MGate MB3170-G2 Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate MB3170-G2-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate MB3170-M-SC-G2 Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate MB3170-M-SC-G2-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA MGate MB3170-M-ST-G2-T Industrial Ethernet Gateway

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

The MGate MB3170-G2, MB3270-G2, and MB3470-G2 are new-generation Modbus gateways that convert between Modbus TCP, RTU, ASCII, and even proprietary or extended Modbus serial protocols. These MGate gateways transparently convert protocols, actively poll connected devices, and cache data in memory. These capabilities enable SCADA systems to retrieve Modbus data directly from the gateway rather than waiting for all Modbus devices to respond, thereby greatly improving communication performance.

Moxa has developed the MGate Series using the IEC 62443-4-1 secure development life-cycle process, ensuring secure connections and management of these gateways within industrial networks.

In addition, the user experience is enhanced by versatile installation options that accommodate diverse mounting and wiring requirements, a rugged design suitable for harsh environments, and easy-to-use configuration and troubleshooting tools for quick maintenance.

You can also find the MGate MB3170-M-ST-G2-T, MGate MB3170-G2, MGate MB3170-M-SC-G2, and MGate MB3170-S-SC-G2 models in the MGate MB3170-G2/MB3270-G2/MB3470-G2 Series.

You can explore our wide range of products and enquire about the MOXA MGate MB3170-M-ST-G2 Industrial Ethernet Gateway for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

industrial gateway : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
Magnetic Isolation Protection	1.5 kV (built-in)
Other ports	Yes : 1 x 100BaseFX Port (Multi-mode ST connector)
Protocols	Ethernet: Modbus TCP Client, Modbus TCP Server; Serial: Modbus RTU/ASCII Client, Modbus RTU/ASCII Server, (supported in Agent mode) Proprietary Modbus Serial Client
industrial gateway : Serial port specifications
Number of Ports	1 Port
Console Port	No
Connectors	1 x DB9 male
Serial Standards	RS-232/422/485 (software-selectable)
Isolation	No
industrial gateway : Serial Communication Parameters
Data Bits	7, 8
Stop Bits	1, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
Baudrate	50 bps to 921.6 kbps
industrial gateway : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : General
Management	ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4/IPv6, SMTP, SMTPS, SNMPv1/v2c/v3, SNTP, TCP/IP, UDP
MTBF	2,889,487 hrs
Industrial Gateway : Memory
microSD Slot	No
industrial gateway : Power Requirements
Input Current	452 mA @ 12 VDC
Input Voltage	12 to 48 VDC (Redundant dual power inputs)
Power Connector	8-pin terminal block
industrial gateway : Security
Security	Security Protocols: SNMPv3, HTTPS (TLS 1.2)
Authentication	Local database
Encryption	AES-128, AES-256, ECC-256, ECC-384, ECC-521, HMAC, RSA-1024, RSA-2048, RSA-3072, RSA-4096, SHA-256, SHA-384
industrial gateway : Physical Characteristics
Dimensions	with ears: 25 x 89 x 132 mm (0.98 x 3.50 x 5.19 in), without DIN-rail mouting kit: 25 x 89 x 129 mm (0.98 x 3.50 x 5.08 in)
Standards and Certifications	EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 2 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Hazardous Locations: ATEX, Class I Division 2, IECEx; Maritime: DNV; Safety: EN 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; Package Drop Test: ISTA 1A; IP30; Telcordia Standard SR-332
Housing	Metal
Operating Temperature	-10 to 60°C (14 to 140°)
Weight	338 g (0.75 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting, Wall mounting
