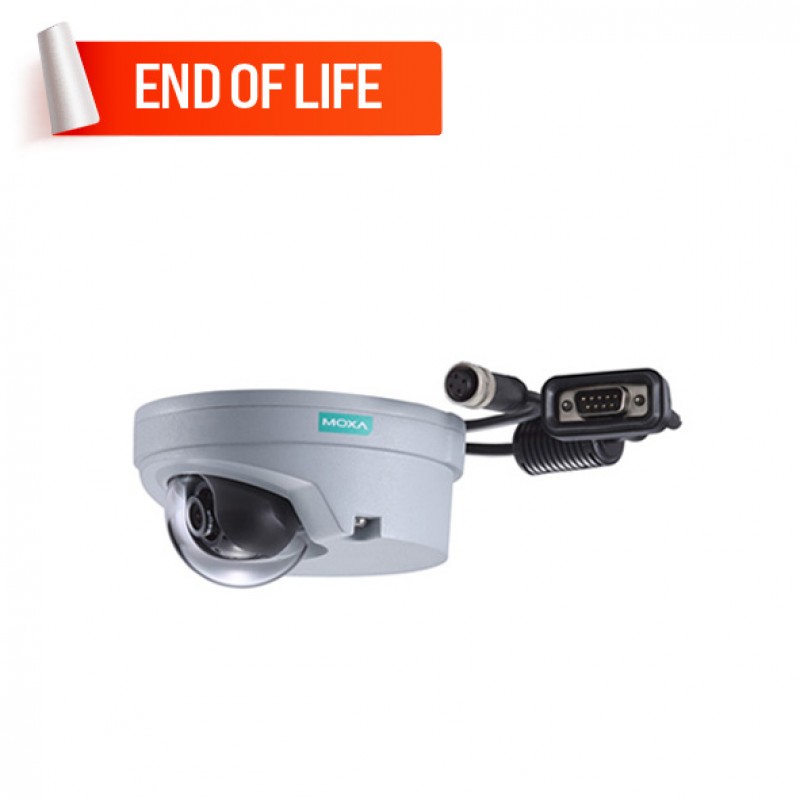

MOXA VPort 06-2L25M-CT Onboard IP Camera
- 1/3” progressive scan camera with maximum 1920 x 1080 resolution at up to 30 fps
- High-quality video imaging with DNR and WDR
- Up to 4 simultaneous H.264 or MJPEG independent video streams
- DynaStream™ for optimized network efficiency
- CBR Pro™ for high image quality in limited bandwidth transmissions
- Supports SDXC (up to 2 TB SD card) for local storage
- ONVIF conformity for standardization and interoperability
- 2.5 mm Lens
- Line-in Audio Interface
- microSD slot, SDXC interface Local Storage
- PoE Power Input
- Conformal Coating
.png)
Description
The VPort 06-2 cameras are compact, 1080P (1920 x 1080), H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK8, mandatory sections of EN 50155,1, and support a -25 to 55°C or -40 to 70°C operating temperature range. With a rugged M12 Ethernet port, SDXC slot for SD cards up to 2 TB, ONVIF Profile S standardization, built-in audio line port or microphone, PoE or 24 VDC power inputs, IP66-rated, and the option of changing the lens, the VPort 06-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications.
You can also find the VPort 06-2L25M and VPort 06-2L25M-CT-T models in the IP Cameras.
Enjoy the ease of online
inquiries for the MOXA VPort 06-2L25M-CT Onboard IP Camera. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Camera | |
|---|---|
| Sensor | 1/3” HD progressive scan CMOS |
| Lens | 2.5 mm, 3.6 mm, 4.2 mm, 6 mm, 8 mm fixed focal lengths |
| Angle of View | • 2.5 mm, F1.6: Diagonal 120°, Horizontal 101°, Vertical 57° • 3.6 mm, F1.6: Diagonal 99°, Horizontal 70°, Vertical 39° • 4.2 mm, F1.6: Diagonal 82°, Horizontal 62°, Vertical 34° • 6.0 mm, F1.8: Diagonal 62°, Horizontal 43°, Vertical 24° • 8.0 mm, F1.6: Diagonal 42°, Horizontal 33°, Vertical 17° |
| Camera Angle | • Pan: ±15° • Tilt: 0 to 90° (3.6, 4.2, 6 mm lenses), 30 to 60° (2.5 mm lens) |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| DNR | Built-in DNR |
| WDR | On/Off, up to 100 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Auto Exposure | Level ±5 |
| Image Rotation | Flip, Mirror, 90°, 180°, and 270° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| AGC (auto gain control) | 2X, 4X, 8X, 16X |
| Audio | |
| Audio Inputs | 1 line-in, or 1 built into the microphone input |
| Audio Format | G.711, AAC |
| Video | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | Up to 4 independent video streams |
| Video Viewing | • DynaStream™ support for automatic frame rate adjustment • CBR Pro™ for good image quality in limited bandwidth transmissions • 3 privacy mask areas provided • Adjustable image size and quality • Timestamp and text overlay • OSD (On Screen Display) position adjustable • Maximum of 5 simultaneous unicast connections |
| Network | |
| Protocols | TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67, IPv6, SIP |
| Ethernet | 1 10/100BaseT(X) Ethernet port, 4-pin M12 D-coded female connector |
| GPIO | |
| Digital Inputs | 1, max. 8 mA; Low: +13 V to 30 V; High: -30 V to +3 V |
| Power Requirements | |
| Input Voltage | VPort P06-2 (PoE model): PoE (IEEE 802.3af)VPort 06-2 (DC model): 12 to 24 VDC with DB9 connector |
| Input Current | 0.38 to 0.86 A |
| Power Consumption | 9 W (max.) |
| Alarms | |
| Intelligent Video | Camera tampering |
| Video Motion Detection | 3 independently configurable motion areas |
| Shock | G sensor for shock detection |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Security | |
| Password | User level password protection |
| Filtering | By IP address |
| Encryption | HTTPS, SSH |
| Standards and Certifications | |
| Safety | UL 60950-1 |
| EMI | CISPR 32, FCC Part 15B Class A |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Freefall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| Vandal Resistance | EN 62262, IK8 |
| EMC | - |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF |
| General | |
| MTBF | 1,063,089 hrs |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 110 x 115.5 x 61.8 mm (4.33 x 4.54 x 2.43 in) |
| Weight | 620 g (1.37 lb) |
| Installation | Surface or ceiling mounting |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Minimum Viewing System Requirements | |
| CPU | Intel Core i3 or above |
| Memory | 2 GB of memory |
| System OS | Windows 7 |
| Software Development | |
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest SDK version is available for download from Moxa’s website). |
| Standard | ONVIF Profile S |
