Description

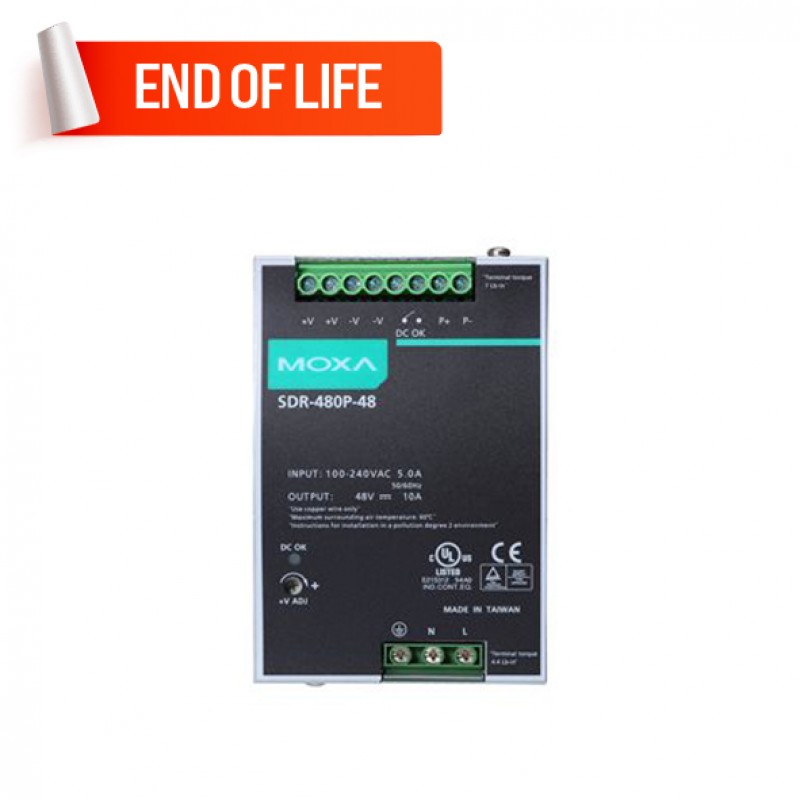

The SDR Power Supply Series provides a reliable 48 VDC power source for industrial control systems and has passed a 100% full load burn-in test, is UL/CUL listed, and CE marked. The SDR Power Supply Series can operate in parallel with up to seven other SDR devices to provide up to 3840 W. The series has an operating temperature range of -25 to 70°C and a three-year warranty, which ensures suitability for operating in harsh environments.
End of Life Product - No Replacement
Please note that the SRP Power Supply Series has been phased out. You can explore the MDR Series, HDR Series, and NDR Series.
Experience the convenient way to purchase the MOXA SDR-480P-48 DIN-Rail Power Supply in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Power Requirements | |
|---|---|
| Input | Voltage: 90 to 264 VAC (47 to 63 Hz), 120 to 370 VDC; Typical Current: 2.5 A @ 230 VAC, 5 A @ 115 VAC; Inrush Current (cold start): 80 A @ 230 VAC, 40 A @ 115 VAC |
| Operating Voltage | - |
| Output | Wattage: 480 W; Voltage: 48 VDC; Current Rating: 0 to 10 A |
| Over-voltage Protection | 56 to 65 V (Shut down operating voltage, repower on to recover) |
| Overload Protection | 110 to 115% (Constant current limiting, recovers automatically after fault condition is removed) |
| Reverse Polarity Protection | - |
| Physical Characteristics | |
| Dimensions | 85.5 x 125.2 x 128.5 mm (3.37 x 4.93 x 5.06 in) |
| Housing | - |
| Weight | 1,600 g (3.53 lb) |
| Ambient Relative Humidity | 20 to 90% (non-condensing) |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | - |
| Installation | DIN-rail mounting |
| Standards and Certifications | EMC: EN 50082-2, EN 55022 Class B, EN 61000-3-2 Class A, ENV 50204; Safety: EN 60950-1 |
| MTBF | - |
