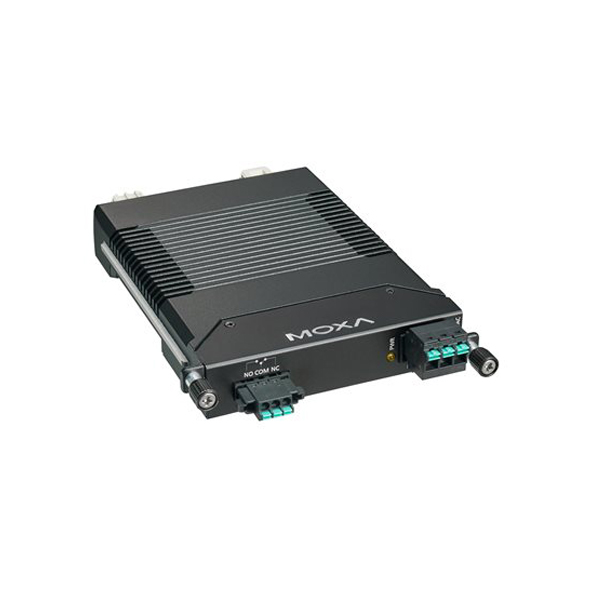

MOXA PWR-HV-NP Power Module
- Power supply module (110/220 VAC/VDC) with system power input, relay
- Operating Voltage: 88-300 VDC, 90-264 VAC
- Input Voltage: 110/220 VDC/VAC
- Output power 88 to 300 VDC, 90 to 264 VAC, and 46 to 57 VDC for PoE systems
- Compatible with PT-G7728/G7828 Series switches
Description
The PWR Power Module Series hot-swappable power modules are
designed for Moxa switches. The power modules allow supported switches to use
24/48 VDC or 110/220 VAC/VDC.
You can also find the PWR-LV-NP model in the Power supplies.
Experience the convenient way to purchase the MOXA PWR-HV-NP Power Module in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Power Requirements | |
|---|---|
| Input Voltage | 110/220 VDC/VAC for the switch system |
| Operating Voltage | 88 to 300 VDC, 90 to 264 VAC for the switch system |
| Reverse Polarity Protection | Supported |
| Alarm Contact Channels | 1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC |
| Physical Characteristics | |
| Weight | 340 g (0.75 lb) |
| Standards | Telcordia (Bellcore), GB |
