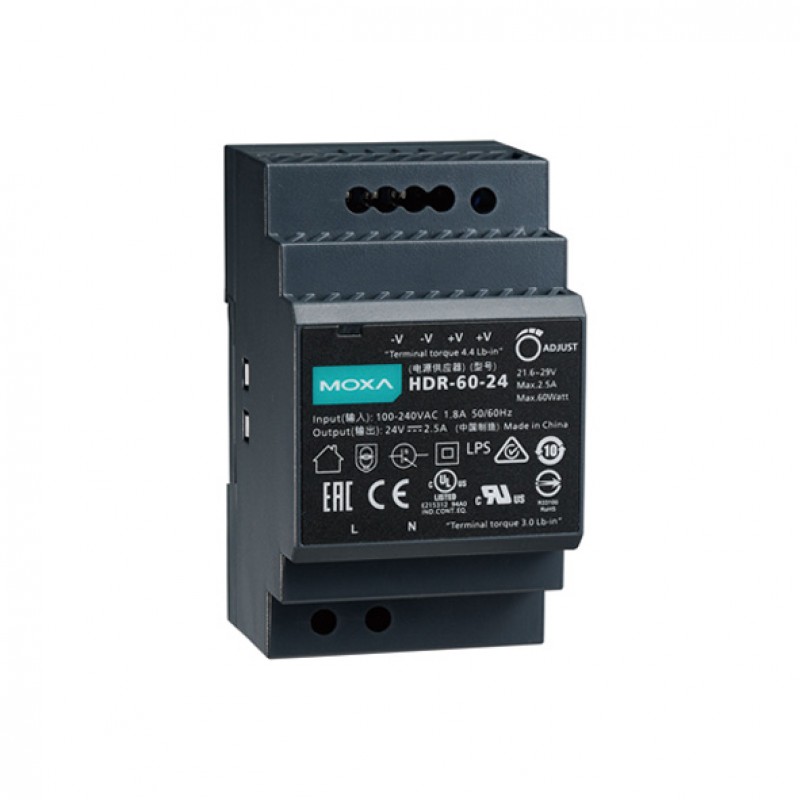

MOXA HDR-60-24 DIN-rail Power Supply

100 to 240 VAC, 120 to 370 VDC Input power range
24 VDC (60 W) Output power range
DIN-rail mounting
Plastic body design
-30 to 70°C operating temperature (45°C at Full Load)

Brand: MOXA
Product Code: HDR-60-24

Datasheet

Tags: Accessories , Power Accessories , DIN-Rail Power Supplies , Power Supplies , Industrial Power Supply , 1-phase Power Supplies , Factory Automation Products , MOXA HDR Power Supply Series

Description

The HDR-60-24 Power Supply Series has been specifically designed for industrial applications. The small form factor makes it ideal for installation in limited spaces, and the devices have been built to operate between -30 to 70°C. The devices have a plastic housing and support AC input ranges from 85 to 264 VAC and conform to the EN 61000-3-2 standard, which the European Union uses to regulate harmonic current. Furthermore, the devices are equipped with constant current mode for overload protection.

You can also find the MDR-60-24 model in the Power supplies.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA HDR-60-24 DIN-rail Power Supply through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Power Requirements
Input	Voltage: 100 to 240 VAC (50 to 60 Hz), 120 to 370 VDC; Typical Current: 0.8 A @ 230 VAC, 1.2 A @ 115 VAC; Inrush Current (cold start): 60 A @ 230 VAC, 30 A @ 115 VAC
Operating Voltage	-
Output	Wattage: 60 W; Voltage: 24 VDC; Current Rating: 0 to 2.5 A
Over-voltage Protection	30 to 36 V (Shut down operating voltage, repower on to recover)
Overload Protection	105 to 160% (Constant current limiting, recovers automatically after fault condition is removed)
Reverse Polarity Protection	-
Physical Characteristics
Dimensions	52.5 x 90 x 54.5 mm (2.07 x 3.54 x 2.15 in)
Housing	Plastic
Weight	230 g (0.5 lb)
Ambient Relative Humidity	20 to 90% (non-condensing)
Operating Temperature	-30 to 70°C (-22 to 158°F), Max 45°C (113°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Installation	DIN-rail mounting
Standards and Certifications	Safety: UL 508, EN 62368-1, UL 62368-1, IEC 62368-1; EMC: EN 55032/35, EN 61000-3-2 Class A, EN 61000-3-3, EN IEC 61204-3, EN IEC 61000-6-2; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 4 kV, IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms, IEC 61000-4-8 PFMF: 30 A/m, IEC 61000-4-11; MIL-HDBK-217F
MTBF	927,560 hrs
Supported Series
Supported Series	-
