Description

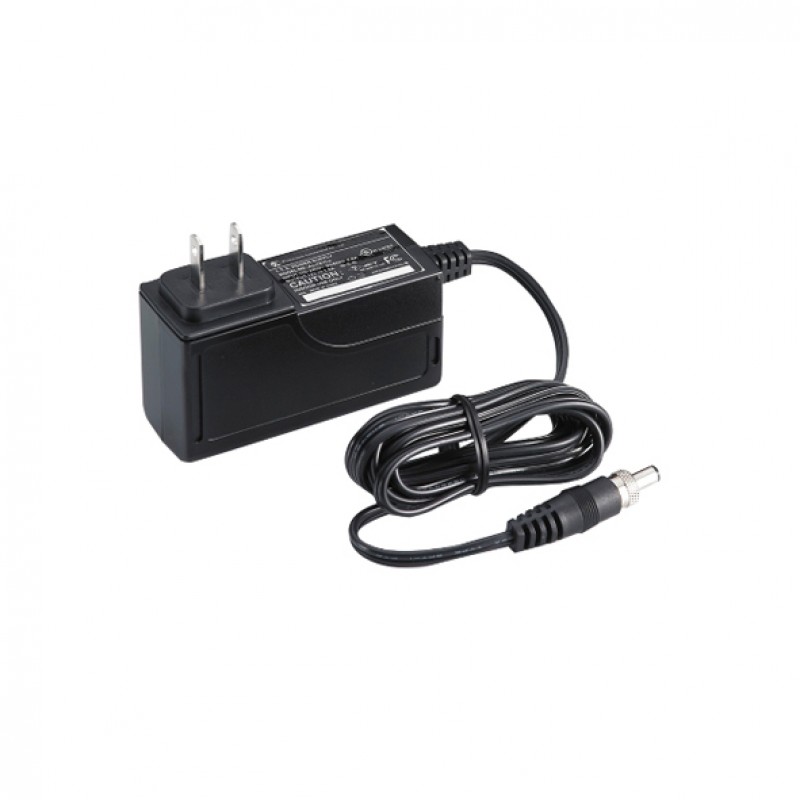

The power adapters in Moxa’s Power Adapter Series provide a
reliable power source for many Moxa products.
You can also find the PWR-12150-UK-SA-T and the PWR-12150-EU-SA-T models in the Power Adapters.
Explore our extensive range of industrial automation
products such as MOXA PWR-12150-USJP-SA-T Power Adapter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh),
and Oman). Submit your inquiry to enjoy
the on-time delivery service. Our sales experts will contact you to fulfill all
your industrial automation needs.
Specification
| Input Power Parameters | |
|---|---|
| Voltage Range | 100 to 240 VAC (50 to 60 Hz) |
| Power Parameters | |
| Input Plug Type | United States/Japan plug type |
| Output Power Rating | 1.5 A @ 12 VDC |
| Output Plug Type | L-Type 5.5/2.1/7.5, Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in), Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in) |
| Physical Characteristics | |
| Dimensions | 32 x 70.3 x 88 mm (1.26 x 2.77 x 3.46 in) |
| Weight | 200 g ( 0.44 lb ) |
| Cord Length | 1500±100 mm (59.06±3.94 in) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Standards and Certifications | Safety: FCC/UL/PSE |
