Description
The power adapters in Moxa’s Power Adapter Series provide a
reliable power source for many Moxa products.
You can also find the PWR-12050-KR-S2 and the PWR-12050-EU-S1 models in the Power Adapters.

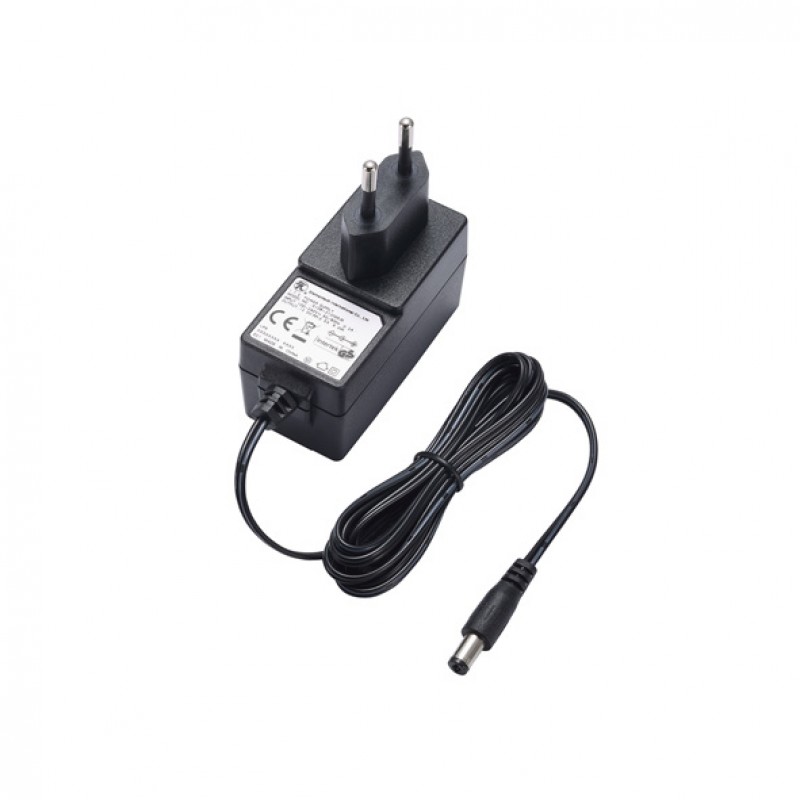

Experience the convenient way to purchase the MOXA PWR-12050-KR-S1 Power Adapter in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Input Power Parameters | |
|---|---|
| Voltage Range | 100 to 240 VAC (50 to 60 Hz) |
| Power Parameters | |
| Input Plug Type | Korea plug type |
| Output Power Rating | 0.5 A @ 12 VDC |
| Output Plug Type | S-Type 5.5/2.1/7.5, Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in), Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in) |
| Physical Characteristics | |
| Dimensions | 67.7 x 33.0 x 55.1 mm (2.67 x 1.30 x 2.17 in) |
| Weight | 71~87 g ( 0.16 ~ 0.19 lb ) |
| Cord Length | 1500±100 mm (59.06±3.94 in) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Standards and Certifications | Safety: KCC |
