Description
The power adapters in Moxa’s Power Adapter Series provide a
reliable power source for many Moxa products.
You can also find the PWR-12050-CN-S1 and the PWR-12050-AU-S2 models in the Power Adapters.

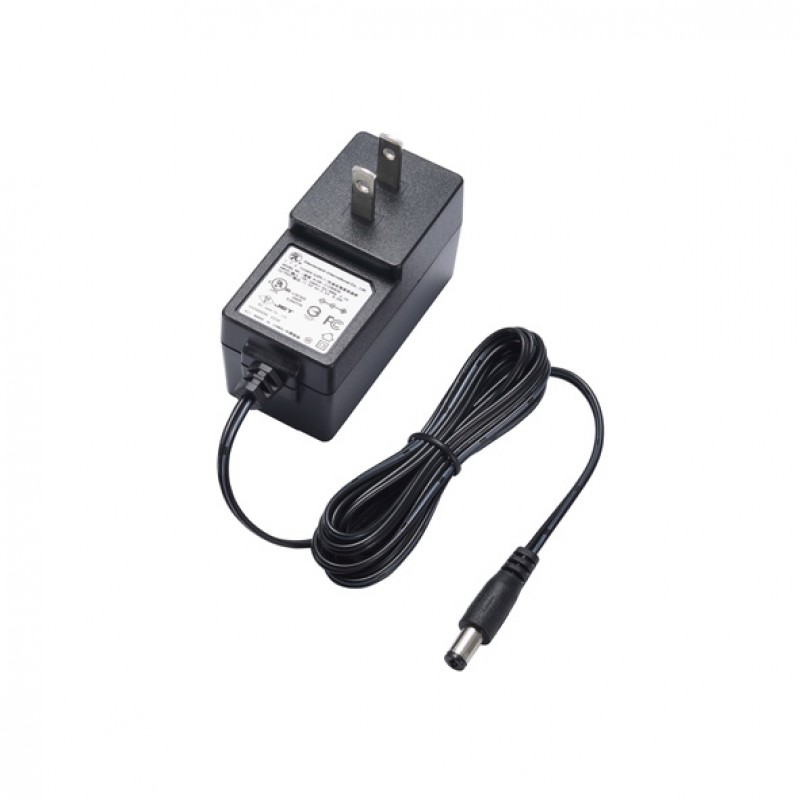

Inquire about the MOXA PWR-12050-CN-S2 Power Adapter, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Input Power Parameters | |
|---|---|
| Voltage Range | 100 to 240 VAC (50 to 60 Hz) |
| Power Parameters | |
| Input Plug Type | China plug type |
| Output Power Rating | 0.5 A @ 12 VDC |
| Output Plug Type | S-Type 5.5/2.1/9.5, Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in), Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in) |
| Physical Characteristics | |
| Dimensions | 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in) |
| Weight | 71~87 g ( 0.16 ~ 0.19 lb ) |
| Cord Length | 1500±100 mm (59.06±3.94 in) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Standards and Certifications | Safety: CCC |
