Description
The LNA-1000 Series low-noise amplifier modules are designed
to amplify the performance and sensitivity of weak signals while minimizing the
introduction of additional noise. The LNA-1000 Series modules are suitable for
a wide variety of communications and signal processing applications.
You can explore our wide range of products and enquire about

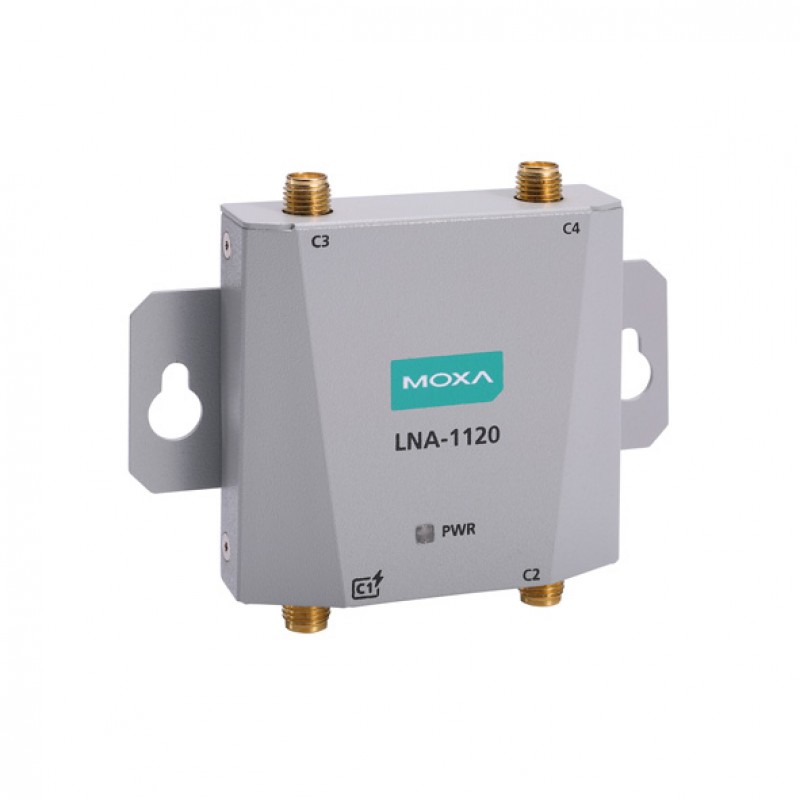

the MOXA LNA-1120-T Industrial Cellular Low-noise Amplifier and all the MOXA Low-noise Amplifiers for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Cellular Interface | |
|---|---|
| Cellular Antenna Connectors | 2 x SMA(J) signal input (including one power input), 2 x SMA(J) signal output |
| Frequency Bands Supported | Cellular broadband LTE and NR frequencies |
| LED Indicators | |
| System | Power |
| Power Parameters | |
| Source of Input Power | Powered by 5G user equipment (UE) via RF cable |
| Physical Characteristics | |
| Dimensions | 75.4 x 60.4 x 15.5 mm (2.97 x 2.38 x 0.61 in) |
| Housing | Metal |
| IP Rating | IP30 |
| Weight | 73 g (0.16 lb) |
| Installation | Wall mounting |
| Operating Temperature | 40 to 70°C (-40 to 158°F) |
| Storage Temperature | 40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF | 14,090,649 hrs |
