Description
IM-6700A fast Ethernet modules are designed for the modular,
managed, rack-mountable IKS-6700A Series switches. Each slot of an IKS-6700A
switch can accommodate up to 8 ports, with each port supporting the TX, MSC,
SSC, and MST media types. As an added plus, the IM-6700A-8PoE module is
designed to give IKS-6728A-8PoE Series switches PoE capability. The modular
design of the IKS-6700A Series ensures that the switches meet multiple
application requirements.
You can also find the IM-6700A-8TX, IM-6700A-6MSC, and IM-6700A-2MST4TX models in the Rackmount Ethernet Switches.

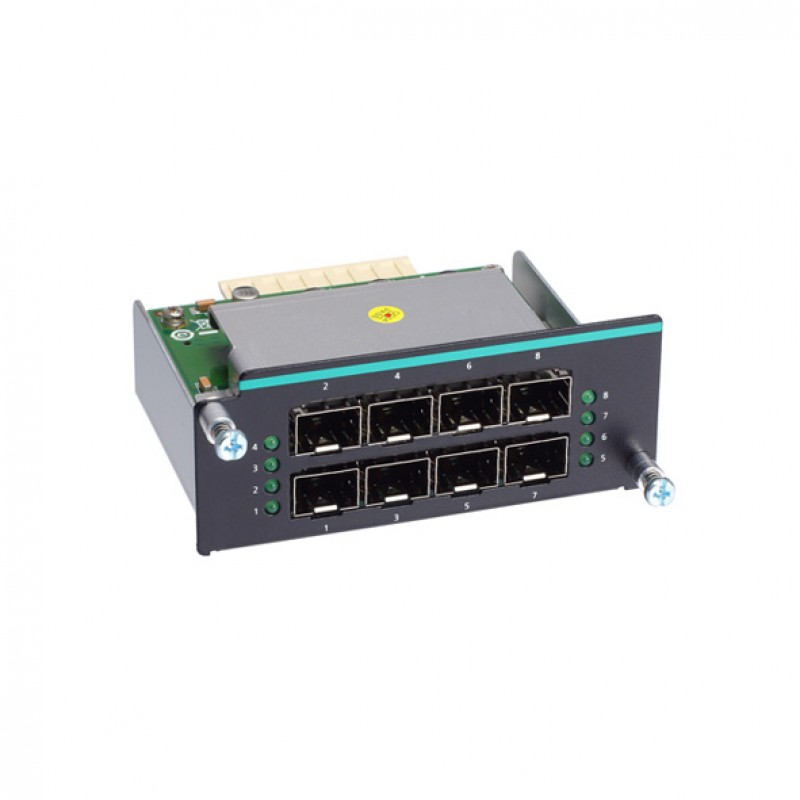

Inquire about the MOXA IM-6700A-8SFP Fast Ethernet Module, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 8 x 10/100Mbps T(x) SFP ports |
| Connector | SFP |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | Power Consumption: 0.92 W (max.) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | 295 g (0.65 lb) |
| Operating Temperature | - |
| Ambient Relative Humidity | - |
| Standards and Certifications | Telcordia (Bellcore), GB |
| MTBF | 5,779,779 hrs |
