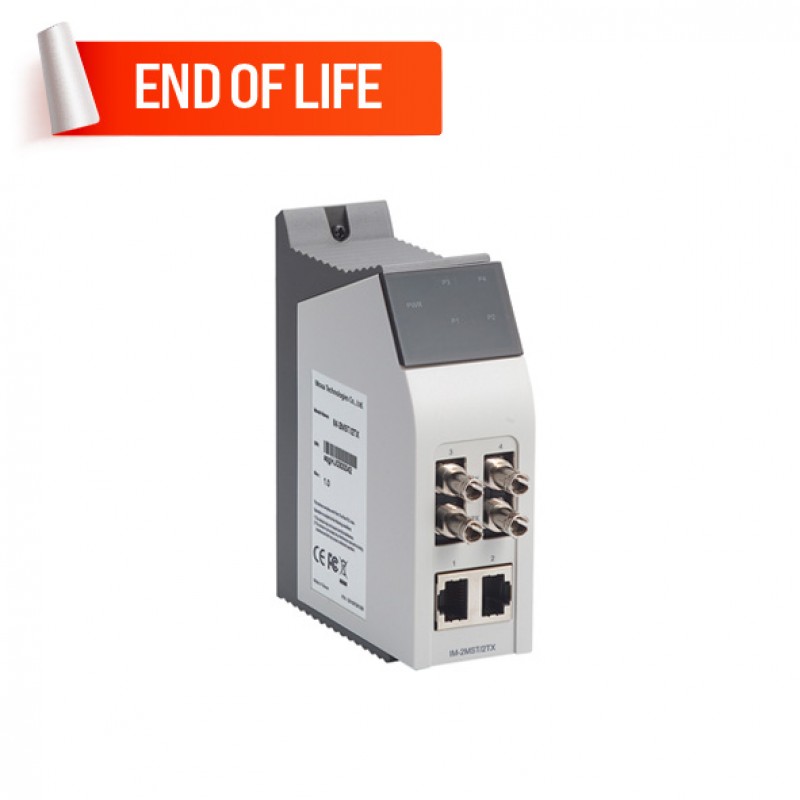

MOXA IM-2MST/2TX Fast Ethernet Module

  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 100BaseFX Ports (multi-mode ST connector)
  • 5 KM Data transmission typical distance on fiber
  • IP30 Housing protection
  • Compatible with EDS-728/828 Series Managed Ethernet Switches

Description

The IM Module Series has been designed for Moxa's EDS-728 Series and EDS-828 Series modular switches. The IM Module Series includes 6 Fast Ethernet modules, each with 4 ports supporting the TX, MSC, SSC, and MST media types. In addition, the IM Module Series includes 2 Gigabit Ethernet modules, one with 2 copper ports, and one with 2 fiber ports. Multiple modules can be used with the EDS-728 and EDS-828 switches, allowing each switch to support up to 24 Fast Ethernet ports and 4 Gigabit Ethernet ports.


End of Life Product - Replacement Available

Please note that the IM Module Series has been phased out and replaced by the LM-7000H Series.


Inquire about the MOXA IM-2MST/2TX Fast Ethernet Module, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

INTERFACE
Ports 2 x 10/100BaseT(X) Ports, 2 x 100BaseFX Ports (multi-mode)
Connector RJ45, ST
Typical Distance 5 KM on fiber
POWER REQUIREMENTS
Power Information Power Consumption: 2.06 W (max.)
PHYSICAL CHARACTERISTICS
Dimensions 40 x 127.8 x 100 mm (1.57 x 5.03 x 3.94 in)
Weight 250 g (0.56 lb)
Operating Temperature -
Storage Temperature -
Ambient Relative Humidity -
Standards and Certifications Telcordia (Bellcore), GB
MTBF -
