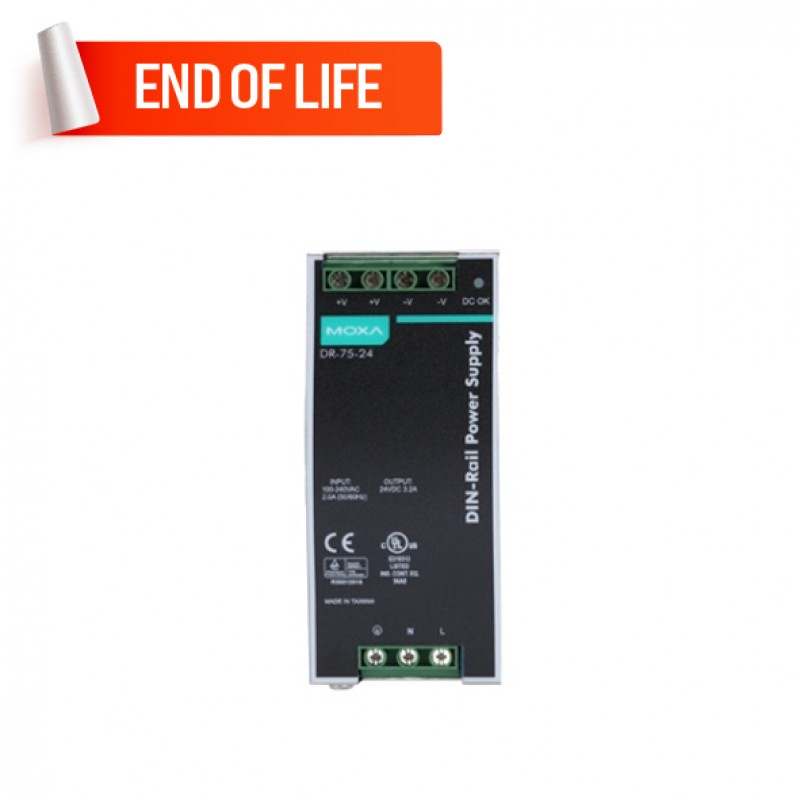

MOXA DR-75-24 DIN-rail Power Supply

  • 85 to 264 VAC, 120 to 370 VDC input power range
  • 24 VDC (76.8 W) output power range
  • DIN-rail mounting
  • -10 to 60°C operating temperature range

Description

The DR Power Supply Series provides a reliable 24/48 VDC power source for industrial control systems. The Series has rugged, compact enclosures, and can operate reliably in temperatures between -10 and 60°C. The DR Power Supply Series has passed a 100% full load burn-in test and is UL/CUL listed, TÜV/CB certified, and CE marked.


End of Life Product - Replacement Available

Please note that the DR Power Supply Series has been phased out, and replaced by the HDR Series and NDR Series.


Easy World Automation offers the easiest way to buy the MOXA DR-75-24 DIN-rail Power Supply in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Power Requirements
Input Voltage: 85 to 264 VAC (47 to 63 Hz), 120 to 370 VDC; Typical Current: 0.96 A @ 230 VAC, 1.6 A @ 115 VAC; Inrush Current (cold start): 40 A @ 230 VAC, 20 A @ 115 VAC
Operating Voltage -
Output Wattage: 76.8 W; Voltage: 24 VDC; Current Rating: 0 to 3.2 A
Over-voltage Protection 29 to 33 V (Shut down operating voltage, repower on to recover)
Overload Protection 105-150% (Constant current limiting, recovers automatically after fault condition is removed)
Reverse Polarity Protection -
Physical Characteristics
Dimensions 55.5 x 100 x 125.2 mm (2.19 x 3.94 x 4.93 in)
Housing -
Weight 550 g
Ambient Relative Humidity 20 to 90% (non-condensing)
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature -
Installation DIN-rail mounting
Standards and Certifications EMC: EN 50082-2, EN 55022 Class B, EN 61000-3-2 Class A, ENV 50204; Safety: EN 60950-1
MTBF -
Supported Series
Supported Series -
