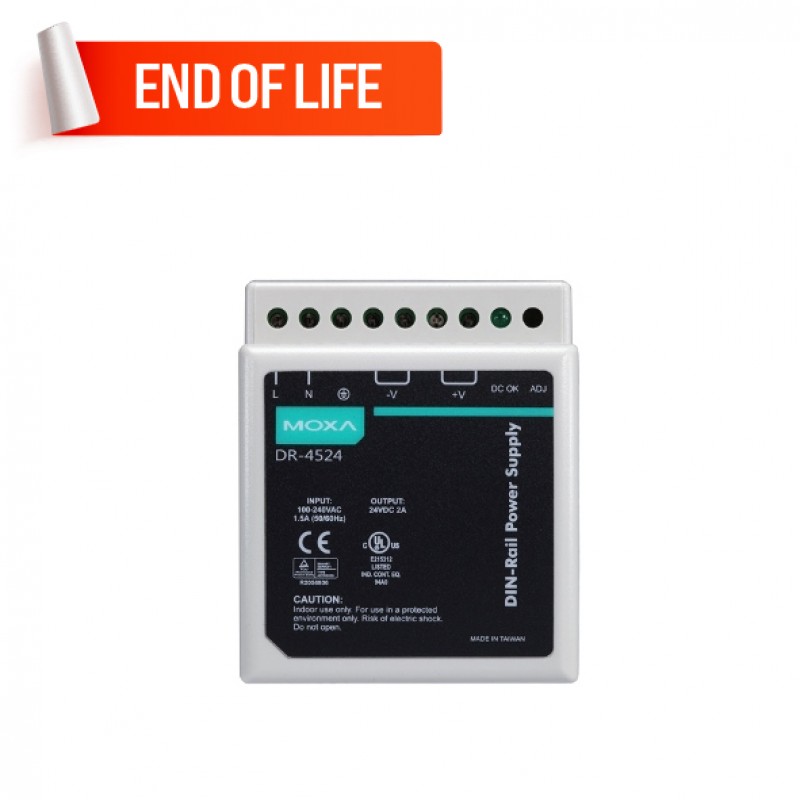

MOXA DR-4524 DIN-Rail Power Supply
- 85 to 264 VAC, 120 to 370 VDC input power range
- 24 VDC (48 W) output power range
- DIN-rail mounting
- -10 to 50°C operating temperature range
- Brand: MOXA
- Product Code: DR-4524
Description
The DR Power Supply Series provides a reliable 24/48 VDC power source for industrial control systems. The Series has rugged, compact enclosures, and can operate reliably in temperatures between -10 and 60°C. The DR Power Supply Series has passed a 100% full load burn-in test and is UL/CUL listed, TÜV/CB certified, and CE marked.
End of Life Product - Replacement Available
Please note that the DR Power Supply Series has been phased out, and replaced by the HDR Series and NDR Series.
Explore our extensive range of
industrial automation products such as MOXA DR-4524 DIN-Rail Power Supply in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh) and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Power Requirements | |
|---|---|
| Input | Voltage: 85 to 264 VAC (47 to 63 Hz), 120 to 370 VDC; Typical Current: 0.75 A @ 230 VAC, 1.5 A @ 115 VAC; Inrush Current (cold start): 56 A @ 230 VAC, 28 A @ 115 VAC |
| Operating Voltage | - |
| Output | Wattage: 48 W; Voltage: 24 VDC; Current Rating: 0 to 2 A |
| Over-voltage Protection | 27.6-32.4 V (Shut down operating voltage, repower on to recover) |
| Overload Protection | 105-150% (Constant current limiting, recovers automatically after fault condition is removed) |
| Reverse Polarity Protection | - |
| Physical Characteristics | |
| Dimensions | 78 x 67 x 93 mm (3.07 x 2.64 x 3.66 in) |
| Housing | - |
| Weight | 400 g |
| Ambient Relative Humidity | 20 to 90% (non-condensing) |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | - |
| Installation | DIN-rail mounting |
| Standards and Certifications | EMC: EN 50082-2, EN 55022 Class B, EN 61000-3-2 Class A, ENV 50204; Safety: EN 60950-1 |
| MTBF | - |
