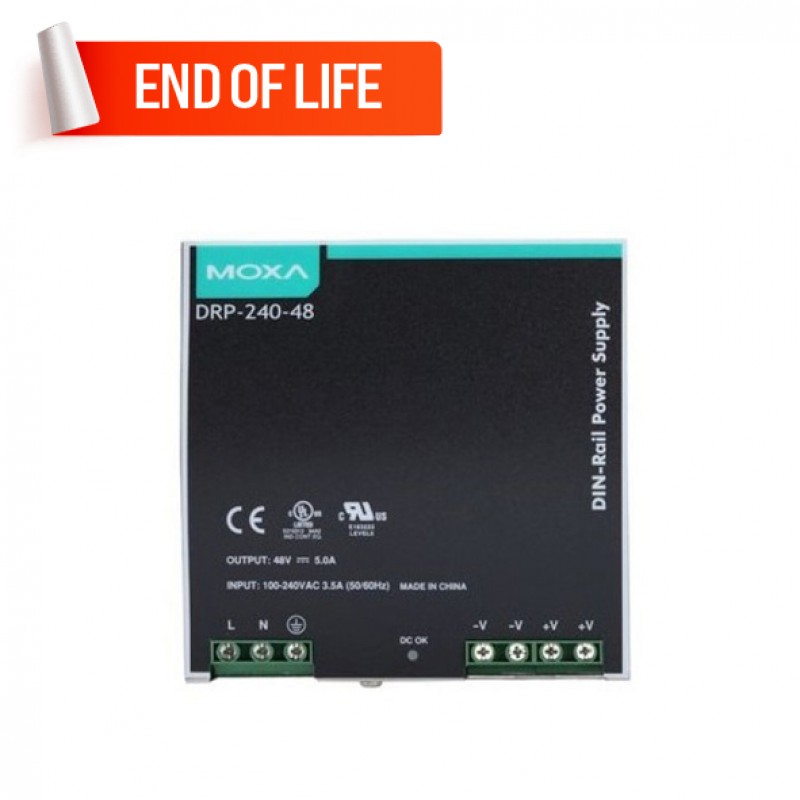

MOXA DRP-240-48 DIN-Rail Power Supply

  • 85 to 264 VAC, 120 to 370 VDC input power range
  • 48 VDC (240 W) output power range
  • DIN-rail mounting
  • -10 to 70°C operating temperature range

Description

The DRP Power Supply Series provides a reliable 48 VDC power source for industrial control systems. This series has passed a 100% full load burn-in test, is UL/CUL Listed, and CE marked. Furthermore, the series has an operating temperature range of -10 to 70°C and a three-year warranty, which ensures suitability for operating in harsh environments.


End of Life Product - No Replacement

Please note that the DRP Power Supply Series has been phased out. You can explore the MDR Series, HDR Series, and NDR Series.


Enjoy the ease of online inquiries for the MOXA DRP-240-48 DIN-Rail Power Supply. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Power Requirements
Input Voltage: 85 to 264 VAC (47 to 63 Hz), 120 to 370 VDC; Typical Current: 1.4 A @ 230 VAC, 2.8 A @ 115 VAC; Inrush Current (cold start): 40 A @ 230 VAC, 27 A @ 115 VAC
Operating Voltage -
Output Wattage: 240 W; Voltage: 48 VDC; Current Rating: 0 to 5 A
Over-voltage Protection 54 to 60 V (Shut down operating voltage, repower on to recover)
Overload Protection 105-150% (Constant current limiting, recovers automatically after fault condition is removed)
Reverse Polarity Protection -
Physical Characteristics
Dimensions 40 x 90 x 100 mm (1.57 x 3.54 x 3.94 in)
Housing -
Weight 1,200 g (2.65 lb)
Ambient Relative Humidity 20 to 90% (non-condensing)
Operating Temperature -10 to 70°C (14 to 158°F)
Storage Temperature -
Installation DIN-rail mounting
Standards and Certifications EMC: EN 50082-2, EN 55022 Class B, EN 61000-3-2 Class A, ENV 50204; Safety: EN 60950-1
MTBF -
Supported Series
Supported Series -
