Description

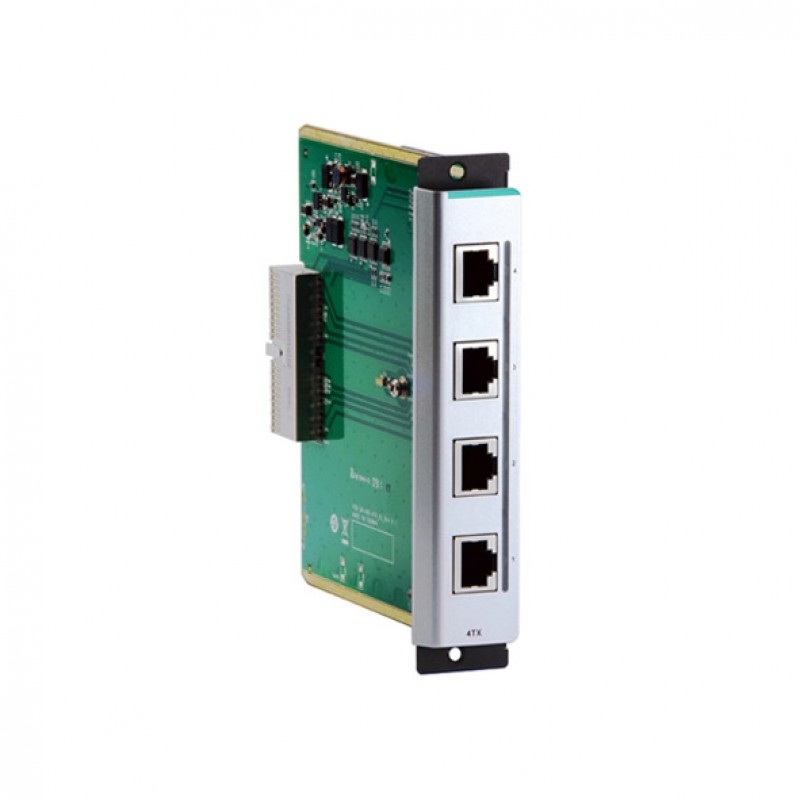

The CM-600 Module Series has been designed for use with the
EDS-600 Series. The CM-600 Series has a compact modular design with one slot
that accommodates 4 ports, which support multiple media types including TX,
MSC, SSC, and MST. The modular design ensures that the EDS-600 Series can meet
multiple application requirements.
You can also find the CM-600-4MST and the CM-600-2MSC/2TX models
in the Ethernet SFP Modules.
Enjoy the ease of online inquiries for the MOXA CM-600-4TX Fast Ethernet Interface Module. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 4 x 10/100BaseT(X) Ports |
| Connector | RJ45 |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | Power Consumption: 0.61 W (max.) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 29.7 x 144.4 x 144.8 mm (1.17 x 5.69 x 5.7 in) |
| Weight | 190 g (0.42 lb) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | IP30; Telcordia (Bellcore), GB |
| MTBF | 740,661 hrs |
