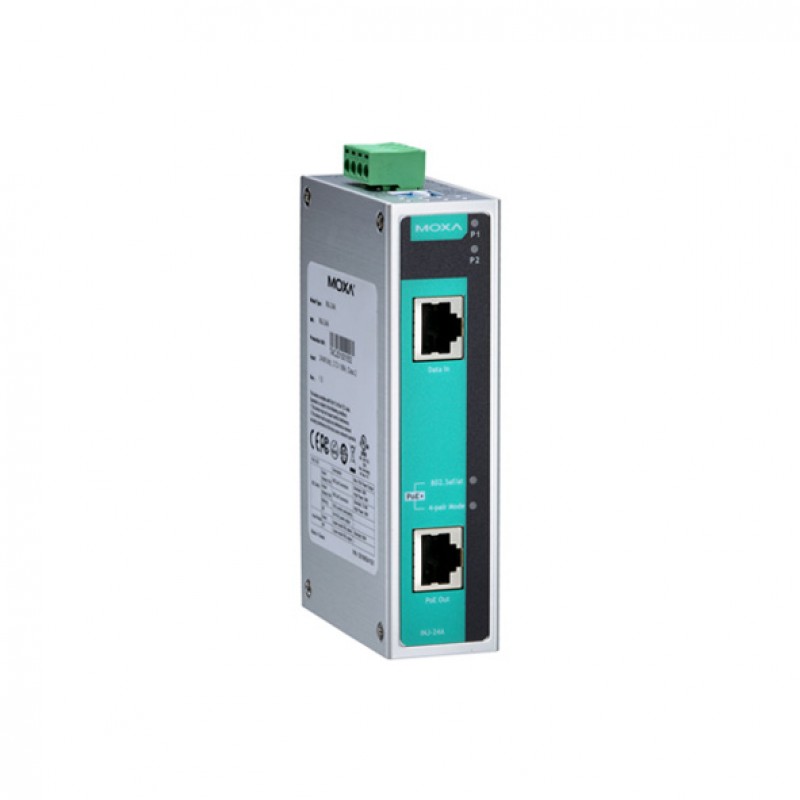

MOXA INJ-24A PoE+ Injector

  • 1 x 10/100/1000BaseT(X), RJ45 connector
  • 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • IEEE 802.3af/at compliant
  • IP30-rated Metal body design
  • High-power mode provides up to 60 W
  • 24 to 48 VDC input power range
  • DIN-rail and Wall mounting
  • 0 to 60°C operating temperature

Description

The INJ-24A is a Gigabit high-power PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for power-hungry devices, the INJ-24A injector provides up to 60 watts, which is twice as much power as conventional PoE+ injectors. The injector also includes features such as a DIP switch configurator and an LED indicator for PoE management, and it can also support 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24A ideally suited to operating in harsh industrial environments.


You can also find the INJ-24A-T, INJ-24-T, and INJ-24 models in the PoE Injectors.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA INJ-24A PoE+ Injector through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 1 Input Port
Input PoE Port
PoE Pinout Default: V+, V+, V-, V- for pins 4, 5, 7, 8 (Midspan, MDI, Mode B), Custom DIP switch setting: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)
Output PoE Port : 1 Port (10/100/1000BaseT(X), RJ45 connector)
Standards and protocols
Protocols and work standards IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for PoE/PoE+ output, IEEE 802.3u for 100BaseT(X)
Power Requirements
Input Voltage 24 to 48 VDC
Power Consumption Max. 5.29 W full loading without PDs’ consumption
Input Current 2.71 A @ 24 VDC
Operating Voltage 22 to 57 VDC
Power Budget Max. 60 W for total PD consumption, Max. 60 W for each PoE port
Connector 1 removable 4-contact terminal block(s)
Buttons
DIP Switch
LED Indicators
PoE
Power
Physical Characteristics
Installation DIN-rail mounting, Wall mounting (with optional kit)
Dimensions 30 x 115 x 78.8 mm (1.19 x 4.53 x 3.10 in)
Housing Metal
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Storage Humidity 5 to 95% (non-condensing)
Weight 245 g (0.54 lb)
MTBF 2,407,739 hrs
Standards and Certifications Safety: UL 508, EN 62368-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
