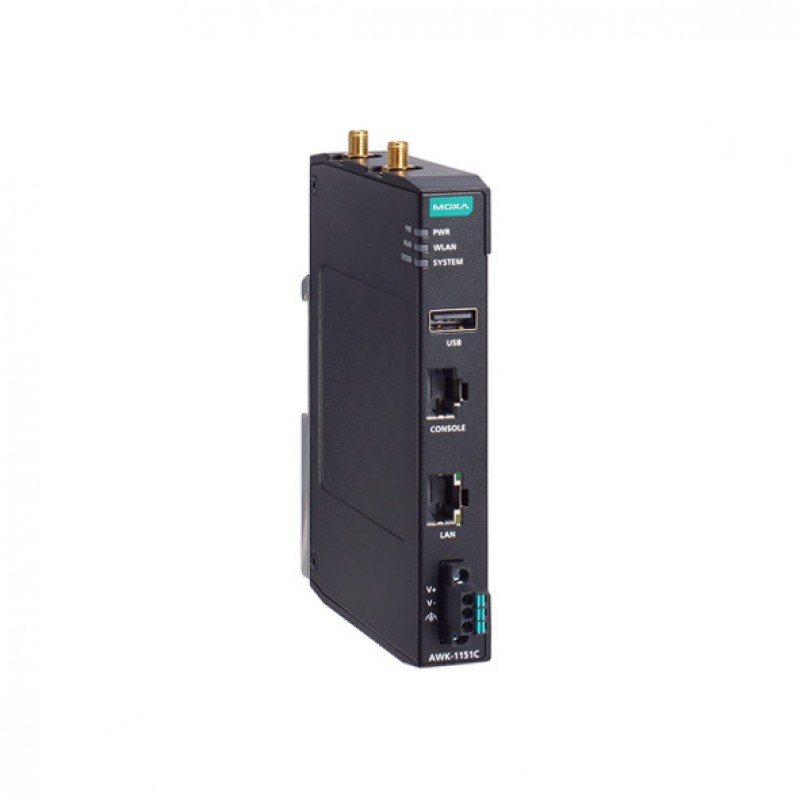

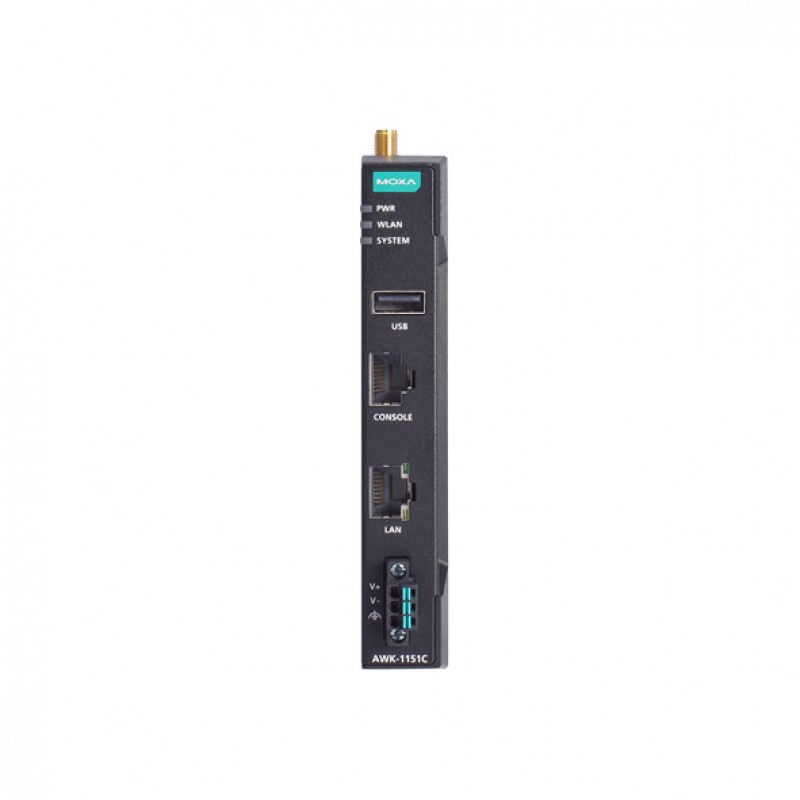

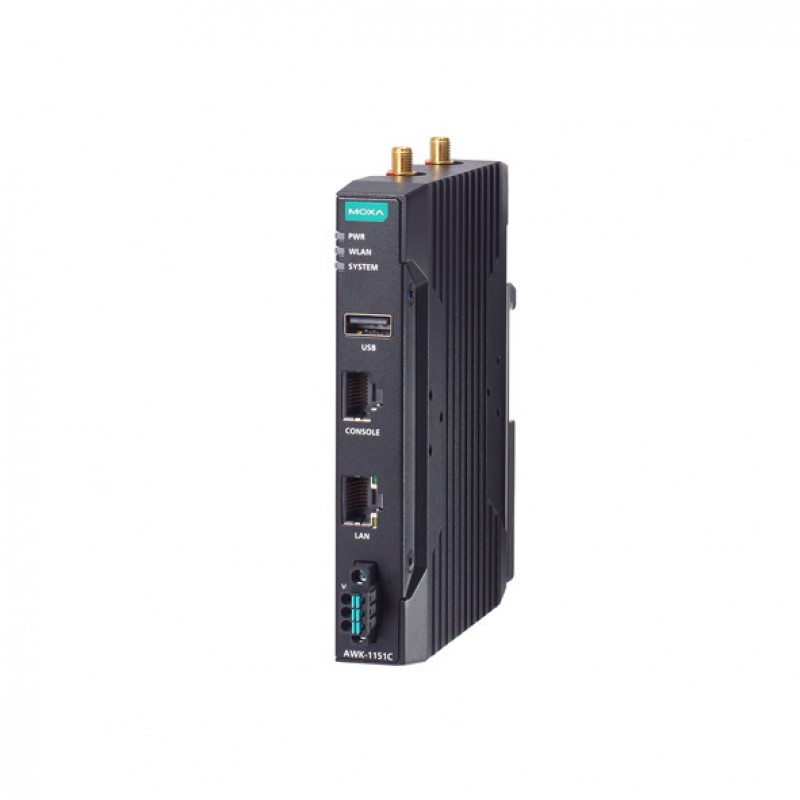

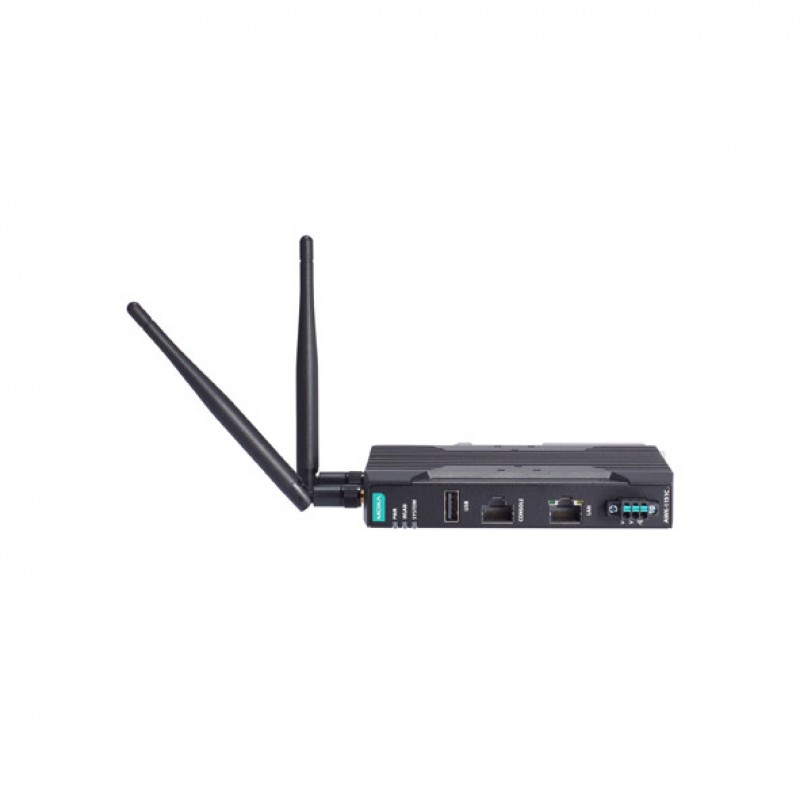

MOXA AWK-1151C-US-T Wireless Client
- Supports US Frequency Bands
- 1 x 10/100/1000BaseT(X) Port (RJ45 connector)
- IEEE 802.11a/b/g/n/ac Wave 2 wireless client
- 9 to 30 VDC input power range
- DIN-rail and Wall mounting
- IP30-rated Metal body design
- -40 to 75°C operating temperature
.png)
Description
The AWK-1151C Series industrial wireless client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for data rates up to 867 Mbps. The AWK-1151C complies with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1151C can operate on the 2.4 or 5 GHz bands and is backward-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.
You can also find the AWK-1151C-US and AWK-1151C-UN models in the WLAN AP/Bridge/Client.
You
can explore our wide range of products and enquire about the MOXA AWK-1151C-US-T Wireless Client for your
industrial automation needs. Our sales experts will pave the way to buy at the
lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interfaces | |
|---|---|
| 10/100/1000BaseT(X) Ports | : 1 x RJ45 Port |
| Modulation Type | - |
| Frequency Band | 2.412 to 2.462 GHz (11 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels), 5.745 to 5.825 GHz (5 channels) |
| PoE Ports | |
| 100BaseFX Ports | |
| Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2/WPA3 Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal |
| WLAN Antenna Connector | 2 x RP-SMA female |
| Security | HTTPS/SSL, RADIUS, SSH |
| WLAN Operation Mode | Client, Client-Router, Slave, Sniffer |
| WLAN Standards | 2.4 GHz: 802.11b/g/n with 256 QAM support, 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support |
| 1000BaseSFP Slots | |
| Transmission Rates | 2.4 GHz: 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 400 Mbps, 5 GHz: 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps |
| 10/100BaseT(X) Ports | |
| Digital Inputs | |
| Console Port | : 1 x RS-232, 8-pin RJ45 |
| Serial Ports | |
| M12 Connector | |
| Power Requirement | |
| Input Current | 9 to 30 VDC, 1.57 to 0.47 A |
| Connector | 1 removable 3-contact terminal block(s) |
| Input Voltage | 9 to 30 VDC |
| Power Consumption | 14 W (max.) |
| Reverse Polarity Protection | |
| Physical Characteristics | |
| Humidity | 5 to 95% (non-condensing) |
| Dimensions Packaged | 100 x 130 x 22 mm (3.94 x 5.12 x 0.87 in) |
| Weight (PACKAGED) | 436 g (0.96 lb) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4, EN 55032/35 ;EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m; Road Vehicles: E mark E1; Safety: IEC 60950-1, IEC 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; IP30; Telcordia SR332 |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| General | |
| Management | DHCP Server, DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig |
| LED Indicators | PWR, WLAN, SYSTEM |
| MTBF | 1,144,888 hrs |
| Time Management | SNTP Client |
