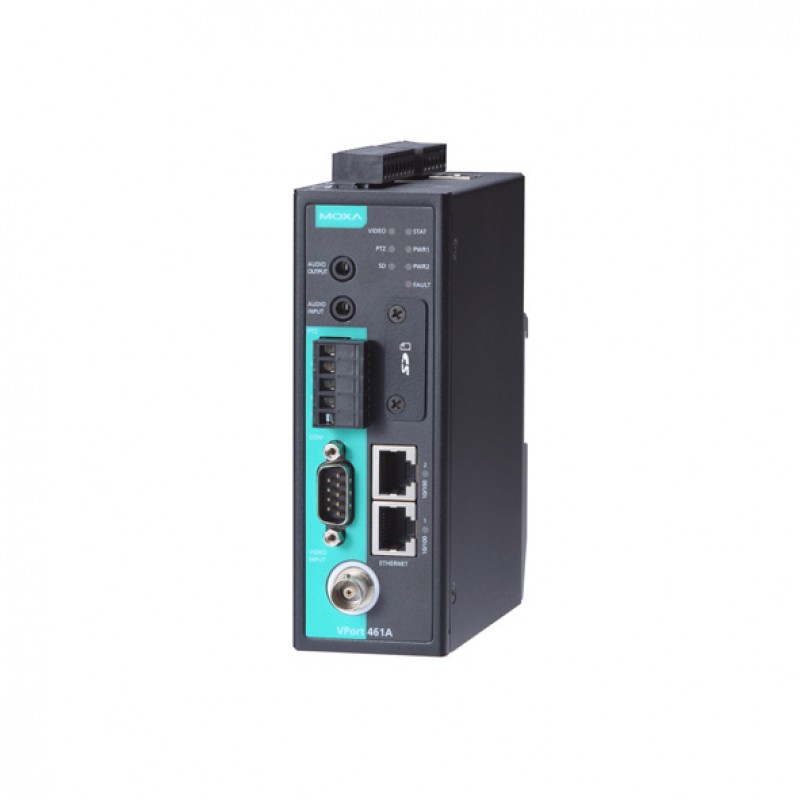

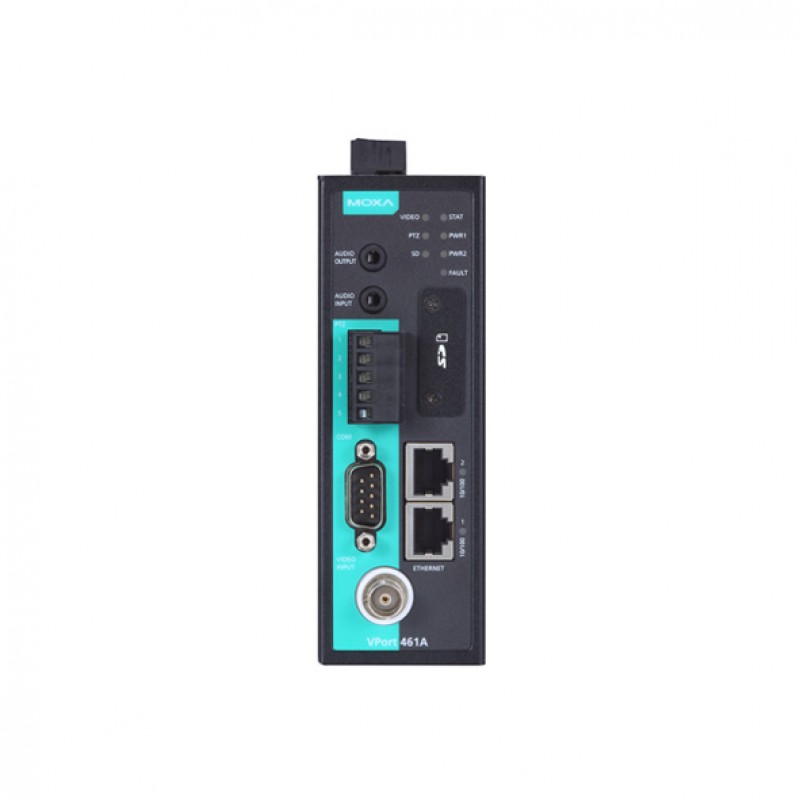

MOXA VPort 461A Video Servers
- 1-Channel analog video input
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 12/24 VDC, 24 VAC Redundant dual power inputs
- 1 x BNC Video input (1.0 Vpp, 75 ohm)
- 1 x Audio input (line-in) and 1 x Audio output (line-out)
- Metal body design
- DIN-rail or Panel mounting
- -25 to 60°C operating temperature
Description
The VPort 461A 1-channel industrial video encoder has an
H.264 video compression algorithm that helps provide the best video quality on
the market but with a smaller bandwidth requirement than other video
compression standards. In addition, to meet various video stream requirements,
the VPort 461A can provide up to 4 video streams simultaneously using H.264 and
MJPEG compression formats. Video streams can be used for different purposes,
such as viewing, recording, and analysis. In addition, the rugged industrial
design, which includes a -40 to 75°C operating temperature and industrial
certifications, makes the VPort 461A suitable for harsh environments.
The VPort 461A is equipped with Moxa’s innovative
DynaStream™ technology, which allows users to change the video frame rate
automatically. With DynaStream™, users can control their network bandwidth
budget and simplify network system management. The CBR Pro™ function helps to
guarantee the lowest packet loss under limited bandwidth transmissions to
ensure that images will not exhibit the mosaic effect.
You can also find the VPort 461A-T model in the Video Servers.
Easy World Automation offers the easiest way to buy the MOXA VPort 461A Video Servers in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | 2 Ports |
| Relay Channels | 2 x Channels (max. 24 VDC @ 1 A) |
| Digital Inputs | 2 x Channels: +13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA (Terminal block connector) |
| Video | |
| Video Inputs | 1, BNC connector (1.0 Vpp, 75 ohm) |
| Video Output | via Ethernet |
| Video Compression | H.264 (MPEG4 part 10), MJPEG |
| Video Streams | 4 independent H.264 or MJPEG video streams |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, Adjustable image size and quality, Timestamp and text overlay, OSD (On Screen Display) position adjustable, Image tuning: control brightness, contrast, saturation, Maximum of 10 simultaneous unicast connections, 50 multicast clients |
| Audio | |
| Audio Inputs | 1 x Line-in or mic-in with 3.5 mm phone jack |
| Audio Outputs | 1 x Line-out with 3.5 mm phone jack |
| Audio Format | Mono, PCM (G.711) |
| Network | |
| Protocols | Ethernet: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, NTP Client, DNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP, Camera: Pelco D, Pelco P, Custom Camera |
| Serial Port | |
| PTZ Ports | 1 x RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps |
| COM Ports | 1 x RS-232 or 485 port, DB9 male connector, 115.2 kbps |
| Console Port | 1 x RS-232 port, RJ45 connector |
| PTZ (Pan/Tilt/Zoom) | |
| PTZ Camera Control | Via PTZ port or COM port |
| PTZ Control Functions | Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions) |
| PTZ Function Updates | Driver upload supported |
| General | |
| MTBF | 862,568 hrs |
| SD Slot | SDXC |
| LED Indicators | STAT: Indicates if system is booted up properly or not; Power 1: Power 1 on/off; Power 2: Power 2 on/off; FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network; Video: Video input signal; PTZ: Indicates if PTZ or COM port data has been transmitted; SD: Indicates if SD card was mounted successfully; Network: 10 Mbps or 100 Mbps |
| Power Requirements | |
| Power Connector | 2-pin terminal block |
| Input Voltage | 12 to 32 VDC, or 18 to 30 VAC (Redundant dual power inputs) |
| Input Current | 0.64 A @ 12 VDC, 0.18 A @ 32 VDC, 0.59 A @ 18 VAC, 0.35 A @ 30 VAC |
| Security | |
| Password | User-level password protection |
| Filter | IP address |
| Authentication | 802.1X |
| Encryption | HTTPS, SSH |
| Alarms | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| FTP Messaging | Automatic transfer of stored images via FTP as event-triggered actions |
| Pre-Alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Video Recording | Event recordings stored on the SD card |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 46 x 134 x 105 mm (1.81 x 5.31 x 4.13 in) |
| Weight | 710 g (1.57 lb) |
| Operating Temperature | -25 to 60°C (-13 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Safety: UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia SR332 |
| Altitude | 2000 m |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Minimum Viewing System Requirements | |
| Memory Size | 1 GB |
| System OS | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
