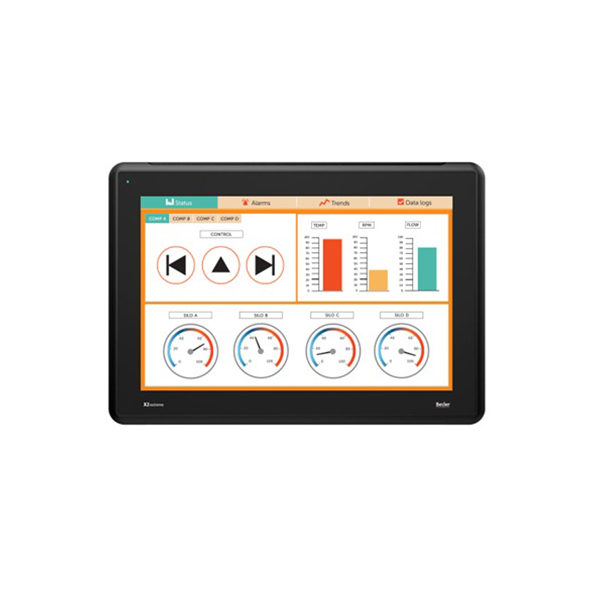

Beijer X2 extreme 15 HP SC Rugged HMI

Beijer X2 extreme 15 HP SC Rugged HMI
Beijer X2 extreme 15 HP SC Rugged HMI

  • 1280 × 800 pixels (16:10) TFT-LCD touchscreen
  • High brightness display
  • CODESYS control integrated
  • Ethernet 2x100 Mbit
  • -30°C to +70°C operating temperature
  • DNV, KR, GL, LR, ABS, CCS, and BV marine approvals
  • UL Class I Div 2, ATEX/IECEx Zone 2,22

  • Brand: BEIJER
  • Model: X2 extreme 15 HP SC
0 reviews • Write a review
  • Operating Temperature (-30 to 70°C)
  • Relative Humidity (5% – 95% non-condensed)
  • Shock (40g, half-sine, 11ms according to IEC60068-2-27)
  • Vibration (4g, according to IEC 60068-2-6, Test Fc)
  • Factory Automation
  • Oil & Gas
  • Marine
  • Power Utility
  • Road Transportation
  • Railway Transportation
  • Water & Wastewater
  • Mine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer QTERM A12 Rugged touch HMI
Quickview
Beijer QTERM A12 Rugged touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer QTERM A7 Rugged touch HMI
Quickview
Beijer QTERM A7 Rugged touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP Rugged HMI
Quickview
Beijer X2 extreme 12 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 Rugged HMI
Quickview
Beijer X2 extreme 12 Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

X2 extreme panels are certified by all major classification societies. Designed to perform in rugged outdoor environments and in hazardous areas where gases, vapors, and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations, and high-pressure wash-downs.

X2 extreme panels are available in 7, 12, and 15 inches, all in 3 versions: Panel mount standard and high-performance versions, and fully sealed high-performance versions. All high-performance versions offer high brightness display and optional integrated CODESYS PLC functionality.


Inquire about the Beijer X2 extreme 15 HP SC Rugged HMI, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Operator panels : Communication serial
Number of serial ports 2 Port 9pin DSUB
Serial port 1 RS 232 (RTS/CTS)
Serial port 2 RS422 (RTS)/RS485
Serial port 3 RS 485
Operator Panels : Ethernet communication
Number of ethernet ports 2
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Ethernet port 2 1x10/100 Base-T (shielded RJ45)
Operator Panels : Expansion interface
SD card SD and SDHC
USB 2xUSB 2.0 500mA
Operator Panels : Power Requirements
Input voltage 24 V DC (18 to 32 VDC)CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform to the requirements for class II power supplies.
Power consumption (max) 32 W
Input fuse Internal DC fuse
Operator Panels : System
CPU i.MX6Quad, Quad ARMCortex-A9 1.0GHz 1MBL2cache
RAM 2 GB
FLASH 4GB SSD(eMMC), 3.5GB free for application
Operator Panels : Display
Size diagonal 15.4" diagonal
Resolution 1280x800 pixels
Backlight LED Backlight
Backlight life time 100000 hours
Backlight brightness 1000 cd/m2
Backlight dimming Marine optimized dimming, down to 0,5 cd/m2
Display type TFT-LCD with LED backlight
Operator Panels : Softcontrol
Codesys runtime version 3.5
Codesys EtherCAT Yes
Codesys Modbus Ethernet Yes
Codesys Modbus RTU Yes
Non volatile variables Yes
Operator Panels : Physical Characteristics
Mechanical size 410 x 286 x 73mm
Mounting Panel Mount
Number of touches 1million finger touch operations
Touch type Resistive
Cut-out size 394 x 270mm
Weight 4.1 kg
Housing Powder-coated aluminum, Black
Operating temperature -30°C to +70°C
Storage temperature -40°C to +80°C
Shock 40g, half-sine, 11ms according to IEC60068-2-27
Vibration 4g, according to IEC 60068-2-6, Test Fc
Sealing front IP66, NEMA 4X/ 12 and UL Type 4X/ 12
Sealing back IP20
Humidity 5% – 95% non-condensed
Standards and Certifications CE, FCC, KCC, UL 61010-2-201
Marine DNV, KR, GL, LR, ABS, CCS, BV
Hazardous ULC1D2, ATEX (Zone2), ATEX (Zone22), IEXEx (Zone2), IEXEx (Zone22)
