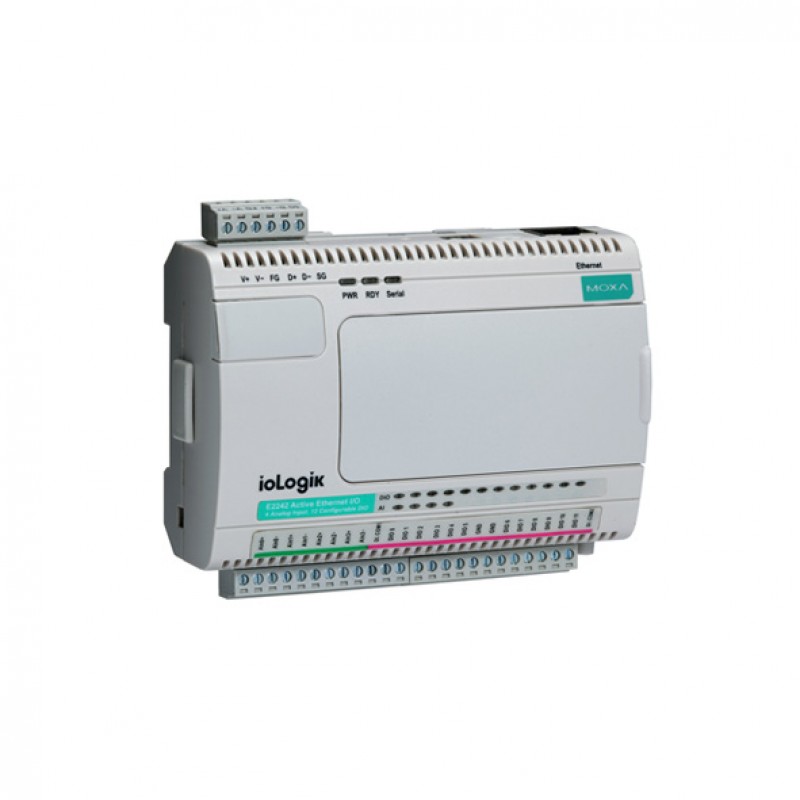

MOXA ioLogik E2242 Smart Ethernet Remote I/O
- 4 x Analog Input Channels
- 12 x Configurable DIO Channels (NPN or PNP)
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x RS-485 Serial port (Terminal block connector)
- Plastic body design
- Supports Modbus TCP, MX-AOPC, and SNMP v1/v2c
- 12 to 36 VDC input power range
- DIN-rail and Wall mounting
- -10 to 60°C operating temperature
- Brand: MOXA
- Product Code: ioLogik E2242
Description
Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.
You can also find the ioLogik E2214, ioLogik E2210, ioLogik E2262-T, and ioLogik E2262 models in the
You can explore our wide range of
products and enquire about the MOXA ioLogik E2242 Smart Ethernet Remote I/O for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle
East.
Specification
| Interface | |
|---|---|
| Digital Input and Output | |
| Adjustable digital input and output | : 12 x Channels ( (Wet Contact: NPN or PNP, Dry Contact) |
| Analog Input and Output | : 4 x Analog Input Channels (±150 mV, 0-150 mV, ±500 mV, 0-500 mV, ±5 V, 0-5 V, ±10 V, 0-10 V, 0-20 mA, 4-20 mA) |
| Relays | |
| Thermal sensor input (RTD) | |
| Thermocouple input | |
| LAN | : 1 x 10/100BaseT(X) Port (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Serial port | : 1 Port |
| Isolation | : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Serial Interface | |
| Connector | Terminal block |
| Serial Standards | RS-485 |
| Serial Communication Parameters | Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps; Parity: None; Data Bits: 8; Stop Bits: 1; Flow Control: None |
| Serial Signals | RS-485-2w: Data+, Data-, GND |
| Security | |
| Security Functions | Authentication: Local database; Encryption: HMAC; Security Protocols: SNMPv3 |
| Standards and protocols | |
| Protocols | Ethernet: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands; Serial: Modbus RTU Master |
| General | |
| Compatible Softwares | MX-AOPC UA Server, MXIO |
| Management | BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP |
| MTBF | 204,391 hrs |
| Power Requirements | |
| Power Connector | Screw-fastened Euroblock terminal |
| Input Voltage | 12 to 36 VDC |
| Power Consumption | 178 mA @ 24 VDC |
| LED Indicators | |
| LED Indicators | PWR, RDY, Serial, I/O Status |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in) |
| Standards and Certifications | Safety: UL 508; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Installation | DIN-rail mounting, Wall mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5% to %95 Non-condensing |
| Weight | 250 g (0.55 lb) |
| Altitude | 2000 m |
