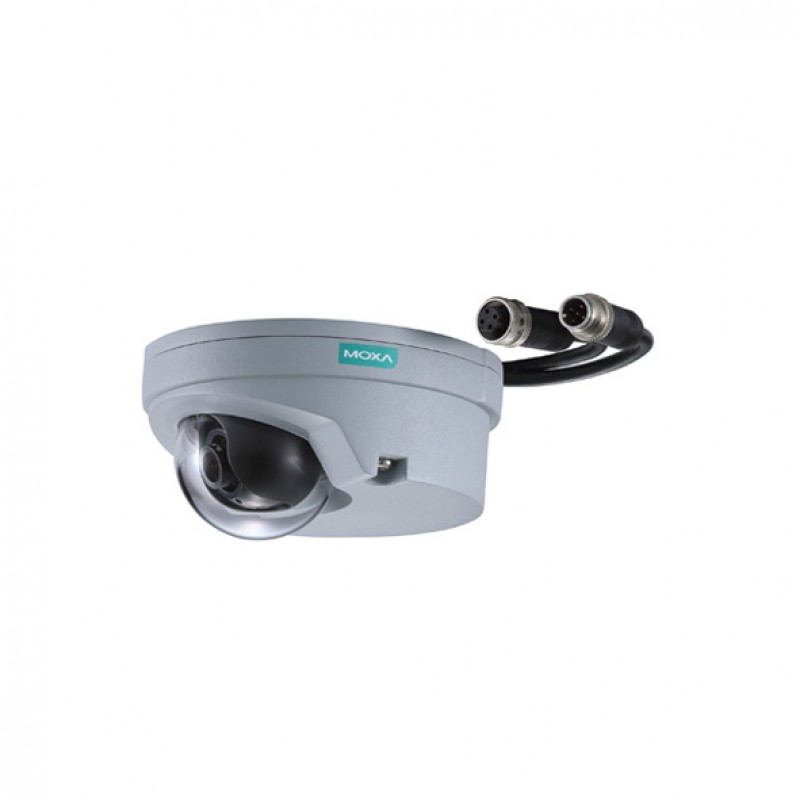

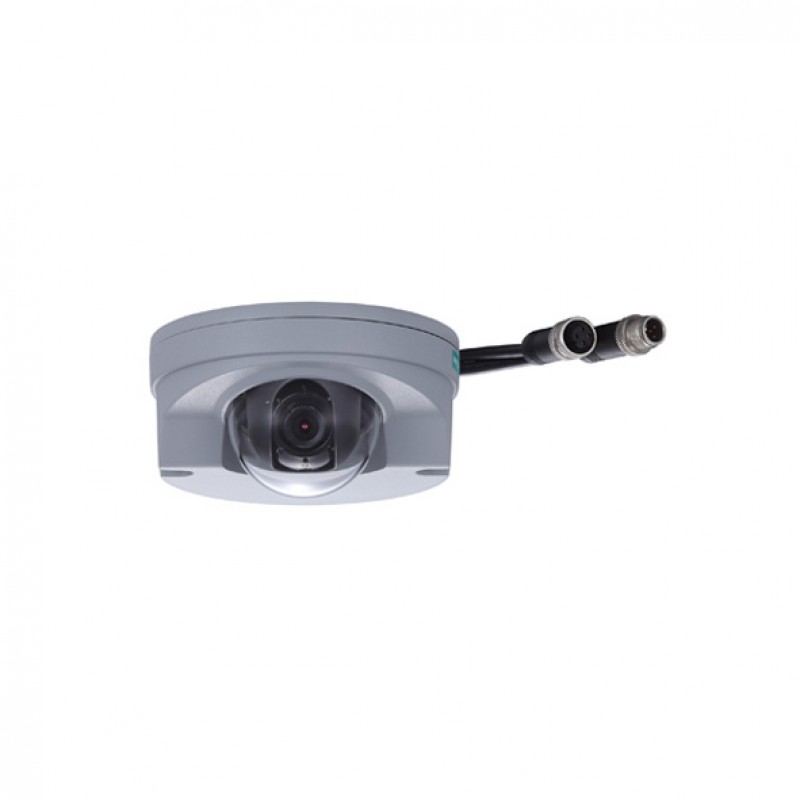

MOXA VPort P07-3M24M Compact IP Camera
- Lens: 2.4 mm
- 1 x PoE Port (10/100BaseT(X), M12 connector)
- 1 x Audio Input (built-in microphone)
- IP66-rated Metal housing with PC dome cover
- Panel mount installation design
- Source of Input Power: PoE (IEEE 802.3af)
- -40 to 55°C operating temperature range
.png)
Description
The VPort 07–3 cameras
are compact, have 3 megapixels (2048 x 1536), and have H.265/H.264/MJPEG dome IP cameras
designed for mobile video surveillance applications. The cameras are compliant
with EN 62262 IK8 and mandatory sections of EN 50155 and support a -40 to 55°C or -40 to 70°C
operating temperature range. With a rugged M12 Ethernet port, ONVIF Profile S,
T, M, standardization, built-in audio line port or microphone, PoE or 24 VDC
power inputs, IP66-rated, and the option of changing the different fixed
focal-length lens, the VPort 07-3 cameras will perform reliably in a variety of
extreme environmental conditions, making them suitable for a wide variety of
mobile video surveillance applications.
You can also find the VPort P07-3M24M-T, VPort P07-3M36M, VPort 07-3M24M, and VPort P07-3L24M in the IP Cameras.
You can Buy the MOXA VPort P07-3M24M Compact IP Camera via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| Camera | |
|---|---|
| Sensor | 1/3-in 3-megapixel progressive scan CMOS |
| Lens | f=2.4 mm, F2.0, Diagonal 139°, Horizontal 110°, Vertical 81° |
| Camera Angle | Pan: ±15°, Tilt: 20° to 90° for 2.4mm lens, 0° to 90° for other lens (controlled manually) |
| ICR Control (for day & night) | - |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| DNR | Built-in 2D/3D DNR |
| WDR | 100 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, 90°, 180°, 270° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| AGC (auto gain control) | 2X, 4X, 8X, 16X |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) |
| Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
| Interface | |
| 10/100BaseT(X) Ports | |
| PoE Ports | : 1 x Port (10/100BaseT(X), M12 D-coded 4-pin female connector) |
| Digital Input/Output Channels | : 1 x Digital Input Channel (5-pin male M12 connector with 20 cm cable) |
| Relay Channels | |
| Audio | |
| Audio Inputs | 1 x built-in microphone |
| Audio Format | Mono, PCM (G.711), AAC |
| Audio Outputs | |
| Video | |
| Video Compression | H.265 (MPEG-H part 2/HEVC), H.264 (ISO/IEC 14496-10/AVC), or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 4 independent video streams |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, OSD (On Screen Display) position adjustable, LDC (Lens distortion correction) for less image warp, Maximum of 10 simultaneous unicast connections, 50 multicast clients |
| Network | |
| Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SFTP, NTP Client, DNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS |
| Power Requirements | |
| Input Voltage | - |
| Input Current | 48 VDC @ 0.137 A |
| Source of Input Power | PoE (IEEE 802.3af) |
| Alarms | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | - |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via FTP as event-triggered actions |
| Pre-alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Security | |
| Password | User-level password protection |
| Filtering | IP address |
| Encryption | HTTPS, SSH |
| Authentication | |
| General | |
| MTBF | - |
| microSD Slot | |
| Physical Characteristics | |
| Housing | IP66 rain and dust protection, Metal housing, PC dome cover, IK8 vandal resistant protection, Built-in heater for dome cover demist |
| Dimensions | 110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in) |
| Weight | 620 g (1.37 lb) |
| Installation | Panel mounting |
| Operating Temperature | -40 to 55°C (-40 to 131°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Railway Fire Protection: EN 45545-2; Safety: UL 62368-1; Shock IEC 60068-2-27, IEC 61373, EN 50155 |
| Altitude | 2000 m |
| Minimum Viewing System Requirements | |
| Memory Size | 8 GB |
| Operating System | Windows 10 or above |
| Browser | Internet Explorer 11 or above, Chrome: Version 118 or above, Microsoft Edge: Version 118 or above |
| Multimedia | DirectX 12 or above |
| Software Development | |
| VPort SDK PLUS | - |
| Standard | ONVIF Profile S, T, M |
