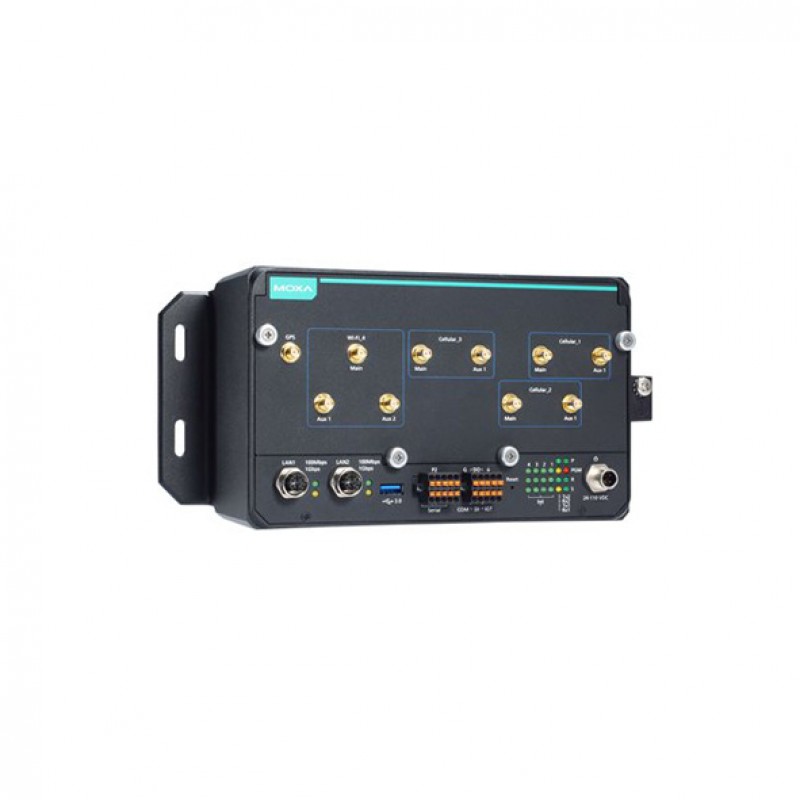

MOXA UC-8580-T-CT-LX Wide Temperature Computer

  • CPU Armv7 Cortex-A7 dual-core 1 GHz
  • Pre-installed Linux Debian 8 kernel 4.1
  • 2 x RS-232/422/485 Serial ports
  • 2 x 10/100/1000 Mbps Ethernet ports
  • Wallmount installation design
  • SMA Antenna connector
  • 24 to 110 VDC isolated input power
  • IP40-rated Metal body design
  • -40 to 70°C operating temperature

Description

Moxa’s UC-8580 is an innovative computing platform designed specifically for transportation applications.

This device is available with one of two different types of antenna connectors. The SMA model supports all SMA-type connectors. The QMA model supports TNC connectors for GPS and QMA connectors for Wi-Fi/cellular modules and has four slots for installing wireless modules.2 Three slots support 4G LTE modules, and one slot supports a Wi-Fi module. Each 4G LTE module has two SIM card slots, which can be used to enable redundant cellular network communications or geo-fencing SIM card selection by leveraging the built-in Wireless Manager, a Moxa software utility for cellular and Wi-Fi management.

The UC-8580 uses an open platform based on Debian 8 with Linux kernel 4.1, allowing solution providers to manage software packages via Debian’s APT (Advanced Packaging Tools), or develop software applications with Moxa’s API Library and GNU C Library.

The UC-8580’s single-sided I/O design is ideal for vehicle applications, which typically do not have a lot of room for installing communications devices. The UC-8580 also has an access panel on the front side, allowing users to install or change wireless modules, SIM cards, or mSATA cards without removing the entire unit from the wall after being mounted.


You can also find the UC-8580-T-LX, UC-8580-LX, and UC-8580-T-CT-Q-LX models in the Wireless Computers.


You can Buy the MOXA UC-8580-T-CT-LX Wide Temperature Computer via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Computer
CPU Armv7 Cortex-A7 dual-core 1 GHz
Supported OS Linux Debian 8 (Linux kernel v4.1)
OS (pre-installed) Linux Debian 8 kernel 4.1
System Memory 1 GB DDR3L SDRAM
Graphics Controller -
Storage Slot mSATA slots x 1, internal mini-PCIe socket
Interface
LAN 2 x Auto-sensing 10/100/1000 Mbps ports (M12 X-coded)
Magnetic Isolation Protection 1.5 kV built-in
Digital Input/Output Channels 3 x Digital inputs, 3 x Digital outputs
Serial Ports 2 x RS-232/422/485 ports, software-selectable (terminal block)
USB 1 x USB 3.0 host, type-A connectors
Expansion Slot 4 x mPCIe slots
Serial Communication Parameters
Baudrate -
Data Bits -
Stop Bits -
Parity -
Flow Control -
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
LED Indicators
System Power x 1, System Ready x 1, Programmable x 1
LAN 2 per port (10/100/1000 Mbps)
Serial 2 per port (Tx, Rx)
Power Requirements
Input Voltage 24 to 110 VDC
Input Current 1.66 A @ 24 VDC; 0.36 A @ 110 VDC
Power Consumption 40 W (max.)
General
Alert Tools -
Automatic Reboot Trigger -
MTBF -
Physical Characteristics
Dimensions 270 x 134 x 88 mm (10.63 x 5.28 x 3.46 in)
Housing Metal
Operating temperature -40 to 70°C (-40 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 60950-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155:2017; Vibration: IEC 60068-2-64, IEC 61373, EN 50155:2017; IP30; Green Product: RoHS, CRoHS, WEEE;
Weight 2.2 kg (4.86 lb)
Mounting Wall mounting
