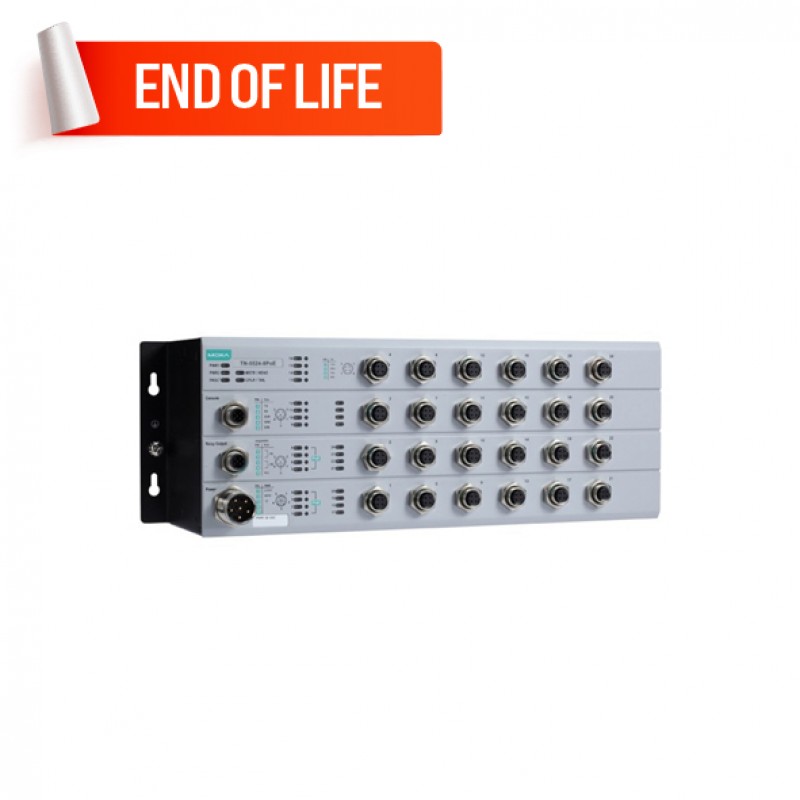

MOXA TN-5524-8PoE-P24-CT-T Managed Ethernet Switches
- 8 x PoE Ports (10/100BaseT(X), M12 Connector)
- 16 x 10/100BaseT(X) Ports (M12 Connector)
- 24 VDC input power range (M23 connector)
- IP40-rated Metal body design
- Installation with Panel-mounting Kit
- -40 to 75°C operating temperature range
- Brand: MOXA
- Product Code: TN-5524-8PoE-P24-CT-T
.png)
Description
The ToughNet TN-5500 series M12 PoE managed Ethernet
switches are designed for railway applications, such as rolling stock and
wayside installations. The TN series switches use M12 and other circular
connectors to ensure tight, robust connections and guarantee reliable
operation against environmental disturbances, such as vibration and shock. The
TN-5524-8PoE series Ethernet switches provide 24 Fast Ethernet M12 ports with 8
IEEE 802.3af compliant PoE (power-over-Ethernet) ports.
The PoE switches are classified as power source equipment
(PSE) and provide up to 15.4 watts of power per port and can be used to power
IEEE 802.3af-compliant powered devices (PDs) (such as surveillance cameras,
wireless access points, and IP phones). Models with an extended operating
temperature range of -40 to 75°C are also available. The TN-5500-PoE series
Ethernet switches are compliant with essential sections of EN 50155, covering
operating temperature, power input voltage, surge, ESD, and vibration, as well
as conformal coating and power insulation, making the switches suitable for a
variety of industrial applications.
End of Life Product - Replacement Available
Please note that the TN-5524-8PoE Series has been phased out and replaced by the TN-4500A Series.
Easy World Automation offers the easiest way to buy the MOXA TN-5524-8PoE-P24-CT-T Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 24 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 8 x PoE Ports (10/100BaseT(X), M12 Connector), 16 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector, auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection), 1 x Console Port (M12 connector), 2 x Alarm Contact Channels (M12 A-coded 5-pin male connector) |
| Features and capabilities | |
| Backup | : ABC-01-M12 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 8.4 (max.) @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24 VDC |
| Operating Voltage | 16.8 to 30 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 663,533 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | - |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 390 x 132 x 122.3 mm (15.35 x 5.20 x 4.81 in |
| Housing | Metal |
| Installation | Panel-mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL/cUL 508; EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8; Rail Traffic: (for panel-mounting installations) EN 50155 (essential compliance*), EN 50121-4, EN 45545-2; Shock: EN 50155, IEC 61373; Freefall: IEC 60068-2-32; Vibration: EN 50155, IEC 61373; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 3,506 g (7.73 lb |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus/TCP, STP/RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation, |
| Protocols and management standards | IPv4/IPv6, SNMP v1/v2c/v3, Telnet, LLDP, Port Mirror, Syslog, RMON, BootP, DHCP Server/Client, DHCP Option 66/67/82, TFTP, SMTP, RARP, HTTP, HTTPS, SNMP inform, Flow Control, Back pressure flow control, 802.1Q VLAN, Port-Based VLAN, GVRP, IGMPv1/v2, GMRP, Static Multicast |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
