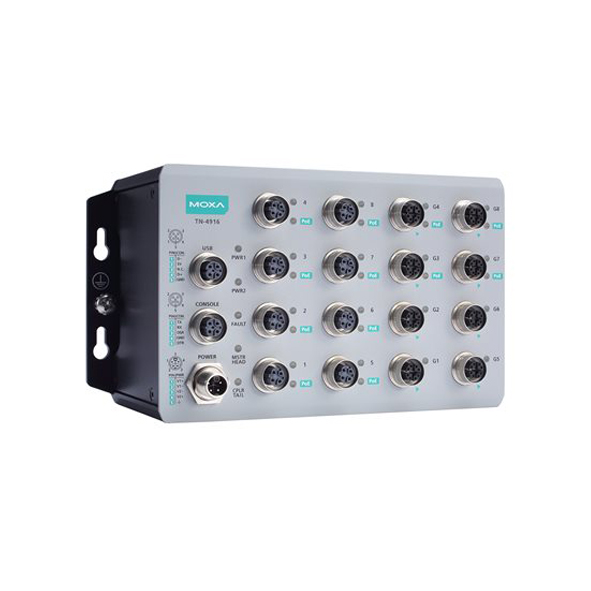

MOXA TN-4916-ETBN-F-8PoE-4GPoE-4GTXBP-WV-CT-T Industrial Secure Router

  • 8 x 10/ 100BaseT(X) PoE Ports, M12 D-coded 4-pin Female Connector
  • 4 x  100/ 1000BaseT(X) Ports, M12 Xcoded 8-pin Female Connector With Bypass Relay
  • 4 x  10/100/ 1000BaseT(X) PoE Ports, M12 X-coded 8-pin Female Connector
  • total 95 W power budget for PoE+
  • Conformal Coating
  • 24 to 110 VDC power input
  • With ETBN
  • With Firewall
  • -40 to 70°C operating temperature
  • Supports regular and push-pull M12 connectors
  • Complies with all EN 50155 mandatory test items

  • Brand: MOXA
  • Product Code: TN-4916-ETBN-F-8PoE-4GPoE-4GTXBP-WV-CT-T

Description

The ToughNet TN-4900 Series, designed for rolling stock Ethernet networks, is a set of high-performance M12 routers with 8 Gigabit ports and up to four bypass relay ports. These routers feature firewall, ETBN, and routing functionality to facilitate the deployment of applications across networks. The TN-4900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-4900 Series supports a wide power input range of 24 to 110 VDC and can operate in temperatures of -40 to 70°C for extended periods of time. Furthermore, these routers are compliant with the mandatory requirements of EN 50155, making them suitable for a variety of industrial applications.



You can also find the TN-4916-ETBN-8PoE-4GPoE-4GTXBP-WV-CT-T model in the Industrial Secure Routers.



Explore our extensive range of industrial automation products such as MOXA TN-4916-ETBN-F-8PoE-4GPoE-4GTXBP-WV-CT-T Industrial Secure Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).  Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Number of Ports 16 Ports
10/100/1000Mb (Gigabit) POE Ports 4 Ports
10/100BaseT(X) Ports
10/100Mb (Megabit) POE Ports 8 Ports
M12 Ports 4 x 100/1000BaseT(X) Ports, M12 X-coded 8-pin Female Connector With Bypass Relay
100/1000BaseSFP Slots
USB M12 A-coded 5-pin female (for ABC-02 USB storage)
Serial port : 1 x Console Port with RS-232 (M12 B-coded 5-pin female connector)
Alarm Contact Channels -
Digital Input Channels -
Software Specifications
Routing Redundancy VRRP
Time Management SNTP, NTP Server/Client
Routing Throughput: 450,000 FPS (pure routing)
General
Broadcast Forwarding -
Multicast Routing Static Route
MTBF 644,898 hrs
Management Back Pressure Flow Control, SNMP Inform, LLDP, Syslog, HTTP, HTTPS, Flow control SMTP, QoS/CoS/ToS, Port Mirror, SNMP Trap, SNMPv1/v2c/v3, IPv4, Telnet, DHCP Server, SFTP, SCP, TFTP, RARP, Account Management, DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255), DHCP Server (Option 1/3/6/12/15/28/42/50/55), DHCP Relay Agent
Standards and protocols
Protocols -
Redundancy Protocols RSTP, Static Port Trunk, Turbo Ring v2, STP
Security
Security and Encryption 3DES, DES, AES-128, AES-192, AES-256
Authentication -
Power Requirements
Connection M12 K-coded 5-pin male connector
Input Voltage 24/36/48/72/96/110 VDC, Redundant dual inputs, No. of power inputs: 2
Reverse Polarity Protection Supported
Buttons
Buttons -
Physical Characteristics
Installation Wall mounting
Dimensions 160 x 115 x 100 mm (6.30 x 4.53 x 3.94 in)
Housing Metal
Weight 1640 g (3.62 lb)
Operating Temperature -40 to 70°C (-40 to 158°F)
Storage Humidity 5 to 95% (non-condensing)
Storage Temperature -40 to 85°C (-40 to 185°F)
Standards and Certifications IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.3af/at for PoE/PoE+ output, IEEE 802.3ab for 1000BaseT(X), IEEE 802.1X for authentication, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.3x for flow control, IEEE 802.3u for 100BaseT(X), IEEE 802.1p for Class of Service, IEEE 802.3 for 10BaseT
