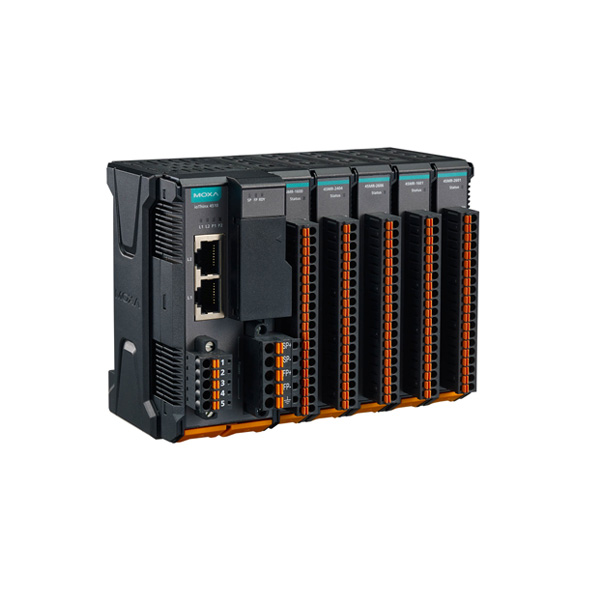

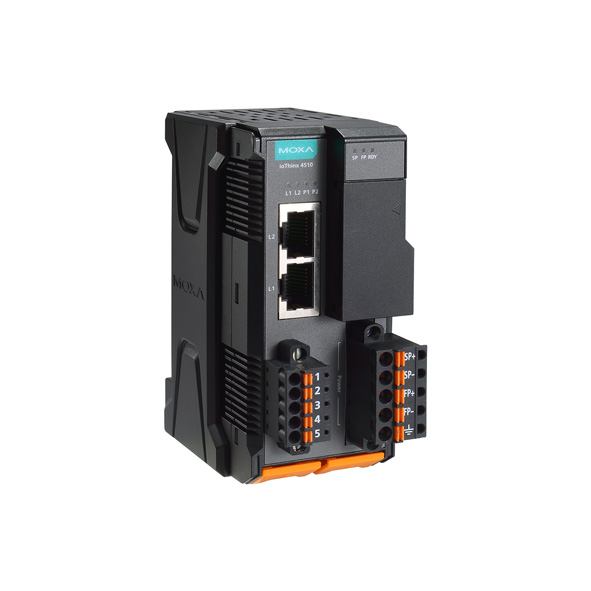

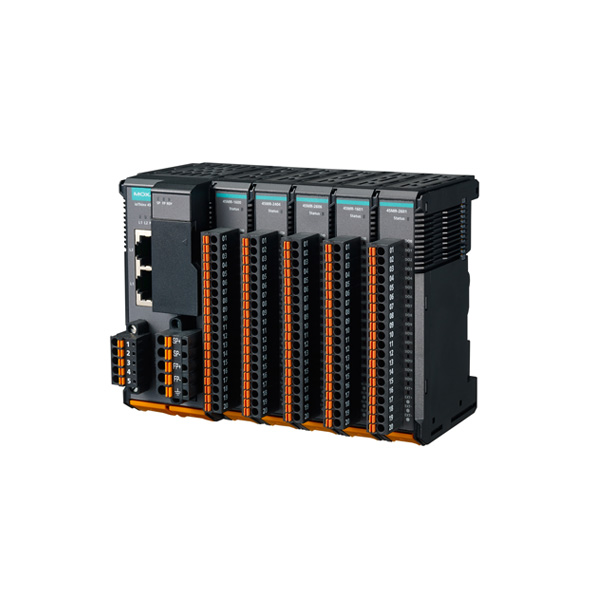

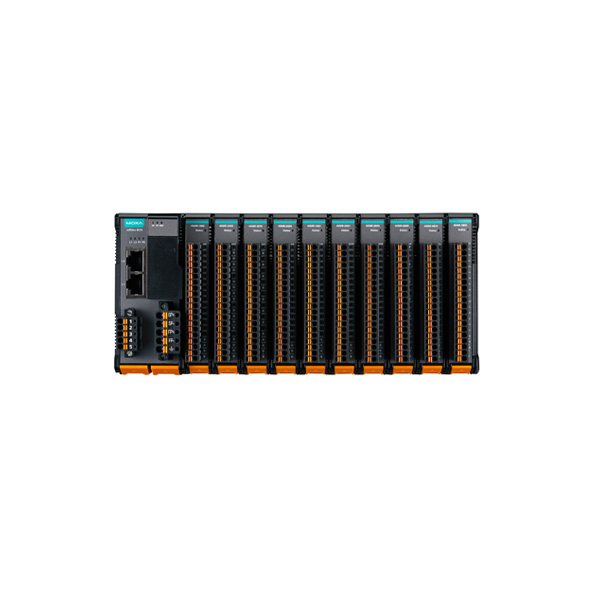

MOXA ioThinx 4510 Modular Remote I/O Adapter

MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter

  • Supports up to 32 I/O modules
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x RS-232/422 or 2 x RS-485 (2 wire) Serial ports
  • Supports Modbus/SNMP/RESTful API/MQTT
  • Plastic body design
  • 12/48 VDC (System), 12/24 VDC (Field) power inputs
  • DIN-rail mounting
  • -20 to 60°C operating temperature

  • Brand: MOXA
  • Model: ioThinx 4510
0 reviews • Write a review
Datasheet
  • Operating Temperature (-20 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA 45ML-5401 Remote I/O Module
Quickview
MOXA 45ML-5401 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45ML-5401-T Remote I/O Module
Quickview
MOXA 45ML-5401-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600 Remote I/O Module
Quickview
MOXA 45MR-1600 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600-T Remote I/O Module
Quickview
MOXA 45MR-1600-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601 Remote I/O Module
Quickview
MOXA 45MR-1601 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601-T Remote I/O Module
Quickview
MOXA 45MR-1601-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404 Remote I/O Module
Quickview
MOXA 45MR-2404 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404-T Remote I/O Module
Quickview
MOXA 45MR-2404-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Advanced Controllers & I/Os , Advanced Controllers , Advanced I/Os , Remote I/O Adapters , Adapters , Remote Automation , Industrial Automation Solutions , Oil & Gas Products , Controllers , I/Os , MOXA ioThinx 4510 Series

The ioThinx 4510 Series is an advanced modular remote I/O product with a unique hardware and software design, making it an ideal solution for various industrial data acquisition applications. The ioThinx 4510 Series has a unique mechanical design that reduces the time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4510 Series supports Modbus RTU Master protocol for retrieving field site data from serial meters and also supports OT/IT protocol conversion.

Easy Tool-Free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the time required for installation and removal. Screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN rail and connecting the wiring for communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN rail. Removing all of the modules from a DIN rail is also easy using the latch and release tab.


You can also find the ioThinx 4510-T model in the Smart Remote I/O.


Easy World Automation offers the easiest way to buy the MOXA ioThinx 4510 Modular Remote I/O Adapter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

MODULAR REMOTE I/O : INPUT/OUTPUT INTERFACE
Buttons Reset button
Expansion Slots Up to 32
Isolation 3k VDC or 2k Vrms
MODULAR REMOTE I/O : ETHERNET INTERFACE
10/100BaseT(X) Ports (RJ45 connector) 2, 1 MAC address (Ethernet bypass)
Magnetic Isolation Protection 1.5 kV (built-in)
MODULAR REMOTE I/O : SERIAL INTERFACE
Connector Spring-type Euroblock terminal
Serial Standards RS-232/422/485
Number of Ports 1 x RS-232/422 or 2 x RS-485 (2 wire)
Serial Communication Parameters Baudrate: 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps; Flow Control: RTS/CTS; Parity: None, Even, Odd; Stop Bits: 1, 2; Data Bits: 8
Serial Signals RS-232 (TxD, RxD, RTS, CTS, GND), RS-422 (Tx+, Tx-, Rx+, Rx-, GND), RS-485-2w (Data+, Data-, GND)
MODULAR REMOTE I/O : INDUSTRIAL PROTOCOLS
Protocols Ethernet: Modbus TCP Server (Slave), RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, MQTT; Serial: Modbus RTU Master
MODULAR REMOTE I/O : POWER REQUIREMENTS
Input Voltage System: 12 to 48 VDC, Field: 12/24 VDC
Power Connector Spring-type Euroblock terminal
Power Consumption System: 800 mA @ 12 VDC
MODULAR REMOTE I/O : GENERAL
Management SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, DHCP Client, IPv4, HTTP, UDP, TCP/IP
MTBF 1,451,040 hrs
MODULAR REMOTE I/O : PHYSICAL CHARACTERISTICS
Housing Plastic
Dimensions 42.3 x 99 x 75 mm (1.67 x 3.9 x 2.95 in)
Weight 173.5 g (0.382 lb)
Installation DIN-rail mounting
Operating Temperature -20 to 60°C (-4 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 4000 m
Standards and Certifications Safety: UL 61010-2-201; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Hazardous Locations: Class I Division 2, ATEX; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
