Description

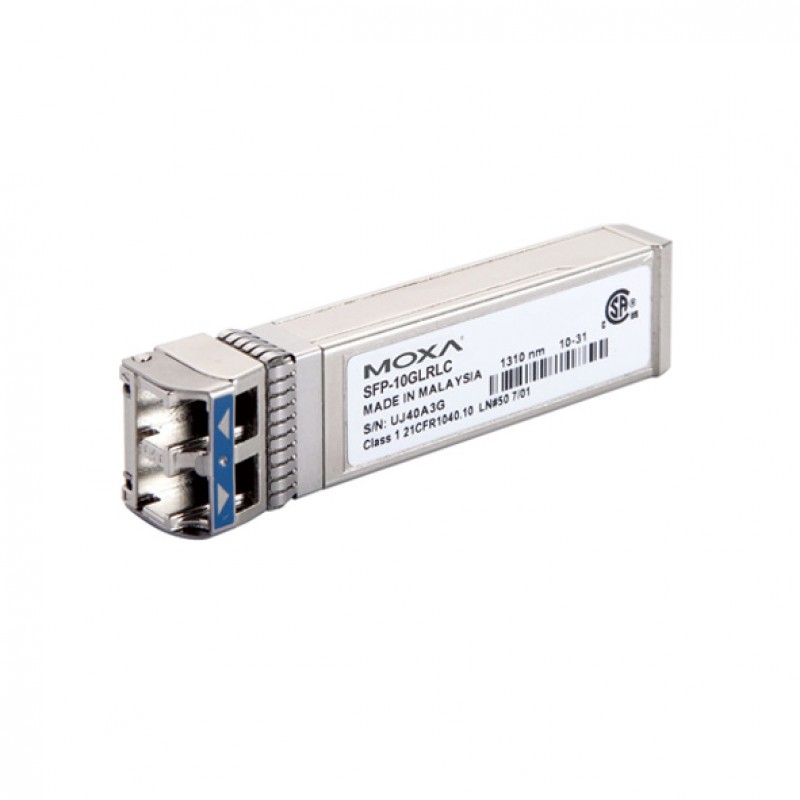

The SFP-10G Series 1-port 10 Gigabit Ethernet SFP+ modules are available as optional accessories for a wide range of Moxa switches.
You can also find the SFP-10GERLC-T, SFP-10GSRLC-T, and SFP-10GZRLC-T models in the Ethernet SFP Modules.
Easy World Automation offers the
easiest way to buy the MOXA SFP-10GLRLC-T 10 Gigabit Ethernet SFP+ Module in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 10GBase-LR (single-mode) |
| Connector | Duplex LC |
| Typical Distance | 10 KM |
| POWER REQUIREMENTS | |
| Power Information | Power Consumption: Max. 1 W |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | - |
| Operating Temperature | -40 to 85°C (-40 to 185°F), Note: When using the SFP-10GZRLC-T with the ICS-G7526A/G7528A/G7826A/G7828A and the MDS-G4000-4XGS/MDS-G4000-L3-4XGS Series, the maximum temperature is -10 to 60°C (14 to 140°F). |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 62368-1, IEC 62368-1, IEC 60825-1; EMC: EN 55032/35; EMI: FCC 15B Test Report, ICES-003: 2020 Issue 7; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV/2 kV(AC), 0.5 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to 1 V, 30 MHz to 80 MHz: 1V., IEC 61000-4-8 PFMF: 1 A/m at 50 Hz, IEC 61000-4-11: Voltage Dips & Interruption |
| MTBF | - |
