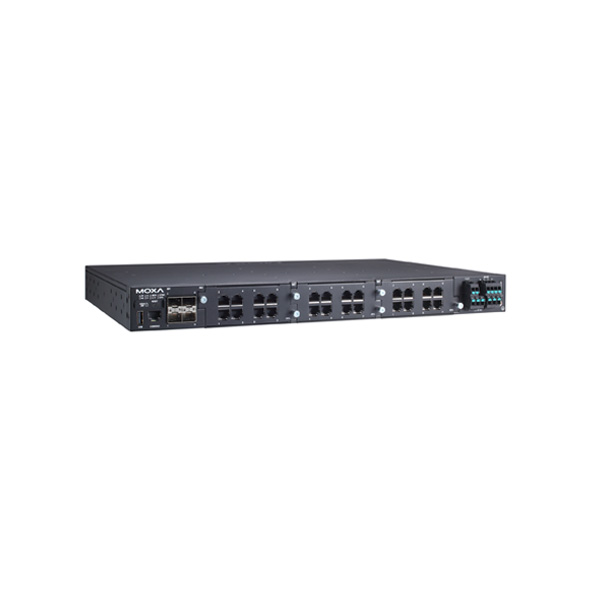

MOXA RKS-G4028-L3-4GS-2HV-T Rackmount Ethernet Switch

MOXA RKS-G4028-L3-4GS-2HV-T Rackmount Ethernet Switch
MOXA RKS-G4028-L3-4GS-2HV-T Rackmount Ethernet Switch
MOXA RKS-G4028-L3-4GS-2HV-T Rackmount Ethernet Switch
MOXA RKS-G4028-L3-4GS-2HV-T Rackmount Ethernet Switch
MOXA RKS-G4028-L3-4GS-2HV-T Rackmount Ethernet Switch

  • Modular Managed Ethernet Switch
  • 4 x 100/1000BaseSFP Slots
  • 3 x Module slots for any 8-port or 6-port FE/GE modules
  • 110 to 220 VAC/VDC Redundant dual power inputs
  • Rackmount installation design
  • -40 to 75°C Operating Temperature

  • Brand: MOXA
  • Model: RKS-G4028-L3-4GS-2HV-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Freefall (IEC 60068-2-32)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Factory Automation
  • Railway Transportation
  • Road Transportation
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA RKS-G4028-4GS-2HV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GS-2HV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA RKS-G4028-4GS-2LV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GS-2LV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA RKS-G4028-4GS-HV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GS-HV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA RKS-G4028-4GS-LV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GS-LV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA RKS-G4028-4GT-2HV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GT-2HV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA RKS-G4028-4GT-2LV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GT-2LV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA RKS-G4028-4GT-HV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GT-HV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA RKS-G4028-4GT-LV-T Rackmount Ethernet Switch
Quickview
MOXA RKS-G4028-4GT-LV-T Rackmount Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Industrial Data Communications , Managed Ethernet Switches , Layer 2 Managed Switches , Layer 3 Managed Switches , Layer 2 Switches , Layer 3 Switches , PoE Switches , Managed Switches , Rackmount Switches , Rackmount Ethernet Switches , Industrial Ethernet Switches , Factory Automation Products , Power Utility Products , Road Transportation Products , Railway Transportation Products , Switches , MOXA RKS-G4028 Series

The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs.

The modular design of the RKS-G4028 Series also makes network planning easy and allows greater flexibility by letting you install up to 28 Gigabit ports with various connector types.



You can also find the RKS-G4028-L3-4GS-2LV-T, RKS-G4028-L3-4GS-HV-T, and RKS-G4028-L3-4GS-LV-T models in the Rackmount Ethernet Switches.



Inquire about the MOXA RKS-G4028-L3-4GS-2HV-T Rackmount Ethernet Switch, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 28 Ports
10/100Mb RJ45 (Megabit) Ports Up to 24 ports
10/100/1000Mb RJ45 (Gigabit) Ports Up to 24 ports
100Mb Fiber optic multi mode (Megabit) Ports Up to 24 ports
100Mb Fiber optic single mode (Megabit) Ports Up to 24 ports
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 4 Slots (Up to 24 slots)
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 3 x Module slots for any 8-port or 6-port FE/GE modules, 1 x Alarm Contact Channel, 1 x USB Port (Type A connector), 1 x MicroSD card, 1 x RS-232 Console port (RJ45 connector)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current Max. 0.55 A @ 110 VDC, Max. 0.29 A @ 220 VDC, Max. 1.01 A @ 110 VAC, Max. 0.62 A @ 220 VAC
Power Input Plugin ( Redundant ) Yes
Input Voltage 110/220 VAC, 110/220 VDC
Operating Voltage 88 to 300 VDC, 85 to 264 VAC
Power Consumption Max. 60.5 W @ 110 VDC, Max. 63.8 W @ 220 VDC, Max. 62.2 W @ 110 VAC, Max. 64.1 W @ 220 VAC
switch and hub : General
Fan / Fanless Fanless
MTBF 483,436 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 3
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 440 x 44 x 300 mm (17.32 x 1.37 x 11.81 in)
Housing -
Installation Rack mounting
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: EN 62368-1, UL 62368-1, UL 61010; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; Traffic Control: NEMA TS2; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIP; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 5200 g (11.46 lb)
switch and hub : Standards and protocols
Protocols and work standards STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, MRP, Link Aggregation, Network Loop Protection, MSTP, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, 802.1X, QoS, HTTPS, HTTP, EtherNet/IP, Modbus TCP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog, PTP
Protocols and management standards Flow control, Back Pressure Flow Control, ARP, RARP, LLDP, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Fiber check, DHCP Relay Agent (Option 82), Port Mirroring (SPAN, RSPAN), GMRP, GVRP, GARP, 802.1Q, IGMP Snooping v1/v2/v3, IGMP Querier
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
