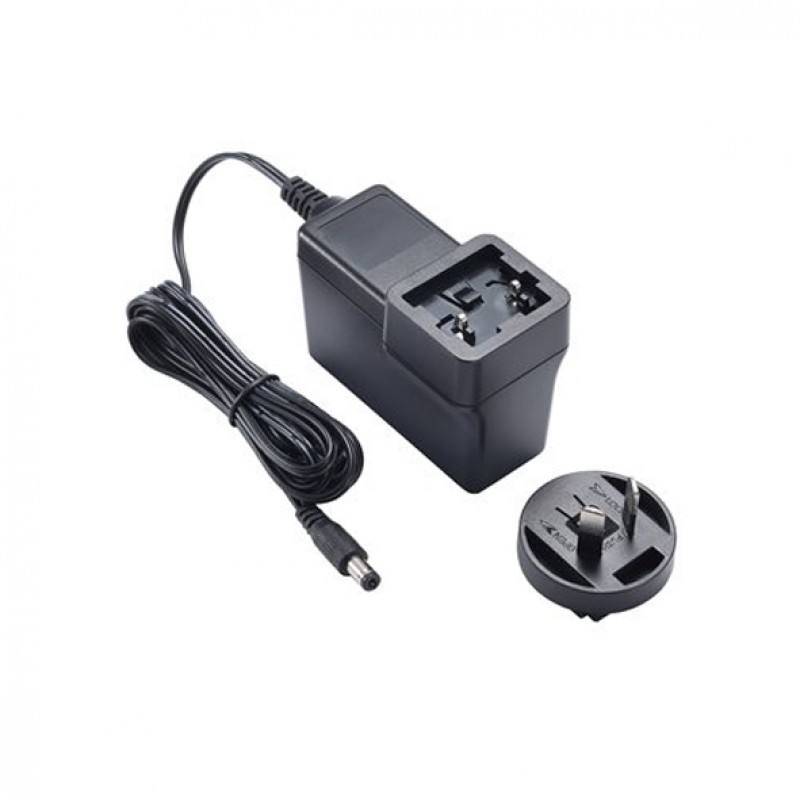

MOXA PWR-12150-WPAU-S2 Power Adapter

  • 100 to 240 VAC power input
  • 1.5 A @ 12 VDC power output
  • Barrel-plug Type: Non-Locking
  • Australian input plug type
  • 0 to 40°C operating temperature

Description

The power adapters in Moxa’s Power Adapter Series provide a reliable power source for many Moxa products.



You can also find the PWR-12150-WPCN-S2 and the PWR-12150-WPEU-S2 models in the Power Adapters.



Easy World Automation offers the easiest way to buy the MOXA PWR-12150-WPAU-S2 Power Adapter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Input Power Parameters
Voltage Range 100 to 240 VAC (50 to 60 Hz)
Power Parameters
Input Plug Type Australia plug type
Output Power Rating 1.5 A @ 12 VDC
Output Plug Type S-Type 5.5/2.1/9.5, Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in), Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in)
Physical Characteristics
Dimensions 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
Weight 115 g ( 0.25 lb)
Cord Length 1500±100 mm (59.06±3.94 in)
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Standards and Certifications Safety: CE/FCC/UL/RCM/PSE/CCC/GS/KCC
