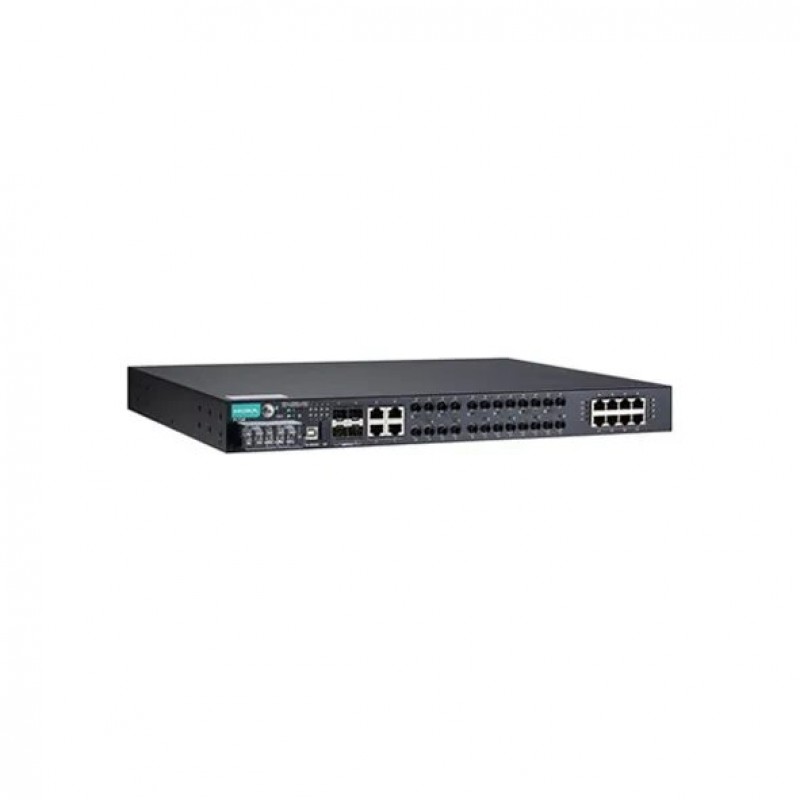

MOXA PT-7528-8MSC-16TX-4GSFP-HV Managed Rackmount Ethernet Switch
- 16 x 10/100BaseT(X) Ports (RJ45 connector)
- 8 x 100BaseFX Ports (multi-mode SC connector)
- 4 x 100/1000BaseSFP Ports
- 5 KM Typical data transmission distance on fiber
- 110/220 VAC/VDC input power range
- IP40-rated Aluminum body design
- Rackmount installation design
- -40 to 85°C operating temperature
.png)
Description
The PT-7528 Series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 Series supports Moxa’s Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 Series also features critical packet prioritization (GOOSE and SMVs), a built-in MMS server, and a configuration wizard designed specifically for substation automation.
With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 Series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available supports multiple types of port configuration, with up to 28 copper or 24 fiber ports, and up to 4 Gigabit ports. Taken together, these features allow greater flexibility, making the PT-7528 Series suitable for a variety of industrial applications.
You can also find the PT-7528-8MSC-16TX-4GSFP-HV-HV, PT-7528-24TX-HV-HV,
and PT-7528-24TX-WV-HV models in the Rackmount Ethernet Switches.
Easy World Automation offers the
easiest way to buy the MOXA PT-7528-8MSC-16TX-4GSFP-HV Managed Rackmount Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 28 ports |
| 10/100Mb RJ45 (Megabit) Ports | : 16 ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 8 ports (SC connector) |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 4 ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x USB Port (Type A connector), 1 x Console Port (Type B connector), 1 x Alarm Contact Channel |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.586/0.382 A @ 110/220 VAC, 0.313/0.167 A @ 110/220 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC) |
| Operating Voltage | - |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 771,320 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in) |
| Housing | Aluminum |
| Installation | 19-inch rack mounting |
| Operating Temperature | -40 to 85°C (-40 to 185°F), Cold start requires minimum of 100 VAC @ -40°C |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 508; Power Substation: IEC 61850-3, IEEE 1613 Class 1; Railway: EN 50121-4; Traffic Control: NEMA TS2; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 4900 g (10.89 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Fiber check, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
